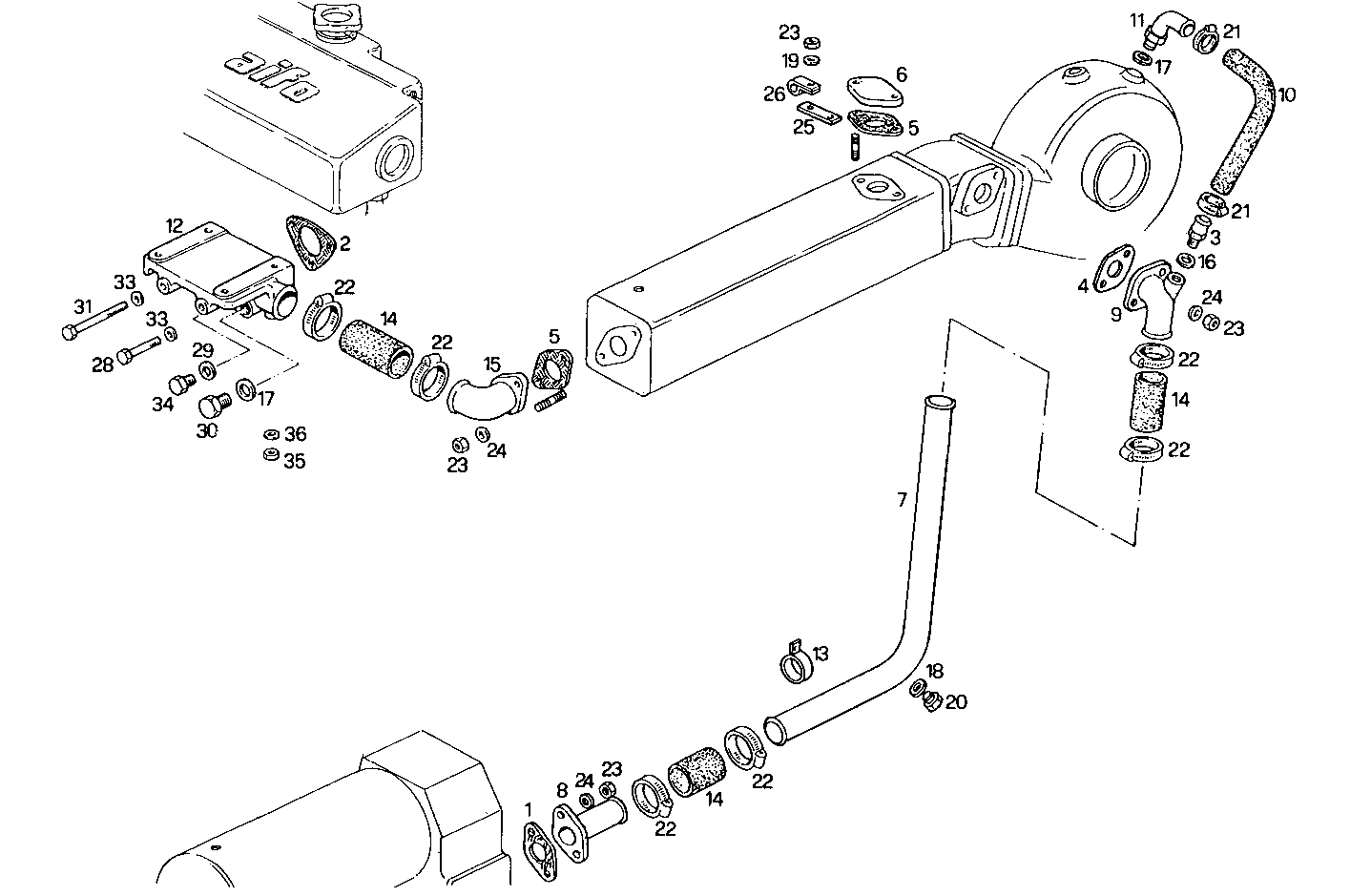

| Item |
Part number |
Description |
|
1 |
98418621 |
GASKET |
|
2 |
4851926 |
FLAT ENGINE GASKET |
|
3 |
4633506 |
THREADED UNION M22X1,5 |
|
4 |
98412164 |
FLAT ENGINE GASKET |
|
5 |
8009640 |
GASKET |
|
6 |
8100154 |
COVER |
|
7 |
8111057 |
WATER PIPE |
|
8 |
8100081 |
WATER PIPE |
|
9 |
8111058 |
WATER PIPE |
|
10 |
8112680 |
WATER HOSE |
|
11 |
4527314 |
PIPE SOCKET |
|
12 |
4930459 |
SUPPORT |
|
13 |
4936741 |
CLIP |
|
14 |
17742887 |
RUBBER SLEEVE |
|
15 |
4919235 |
WATER PIPE |
|
16 |
10263460 |
WASHER Ø22X28X1,5 MM |
|
18 |
4858606 |
GASKET Ø10X14X1 MM |
|
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
20 |
16992140 |
PLUG M10X1 |
|
21 |
17764593 |
CLIP Ø20/32 MM |
|
22 |
17764793 |
CLIP Ø32/50 MM |
|
23 |
17037931 |
HEXAGON NUT M8X1,25 |
|
24 |
17094914 |
WASHER 8x16 |
|
25 |
4787181 |
SUPPORT |
|
26 |
17316390 |
CLIP |
|
28 |
16605424 |
SCREW M8X16 MM (8.8) |
|
29 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
30 |
16992640 |
PLUG M22X1,5 |
|
31 |
15972921 |
HEXAGON BOLT M10X1,25X160 MM |
|
33 |
17095104 |
WASHER Ø10X21X2 MM |
|
34 |
16992440 |
THREADED PLUG M16X1,5 |
|
35 |
17038121 |
HEXAGON NUT M10 |
