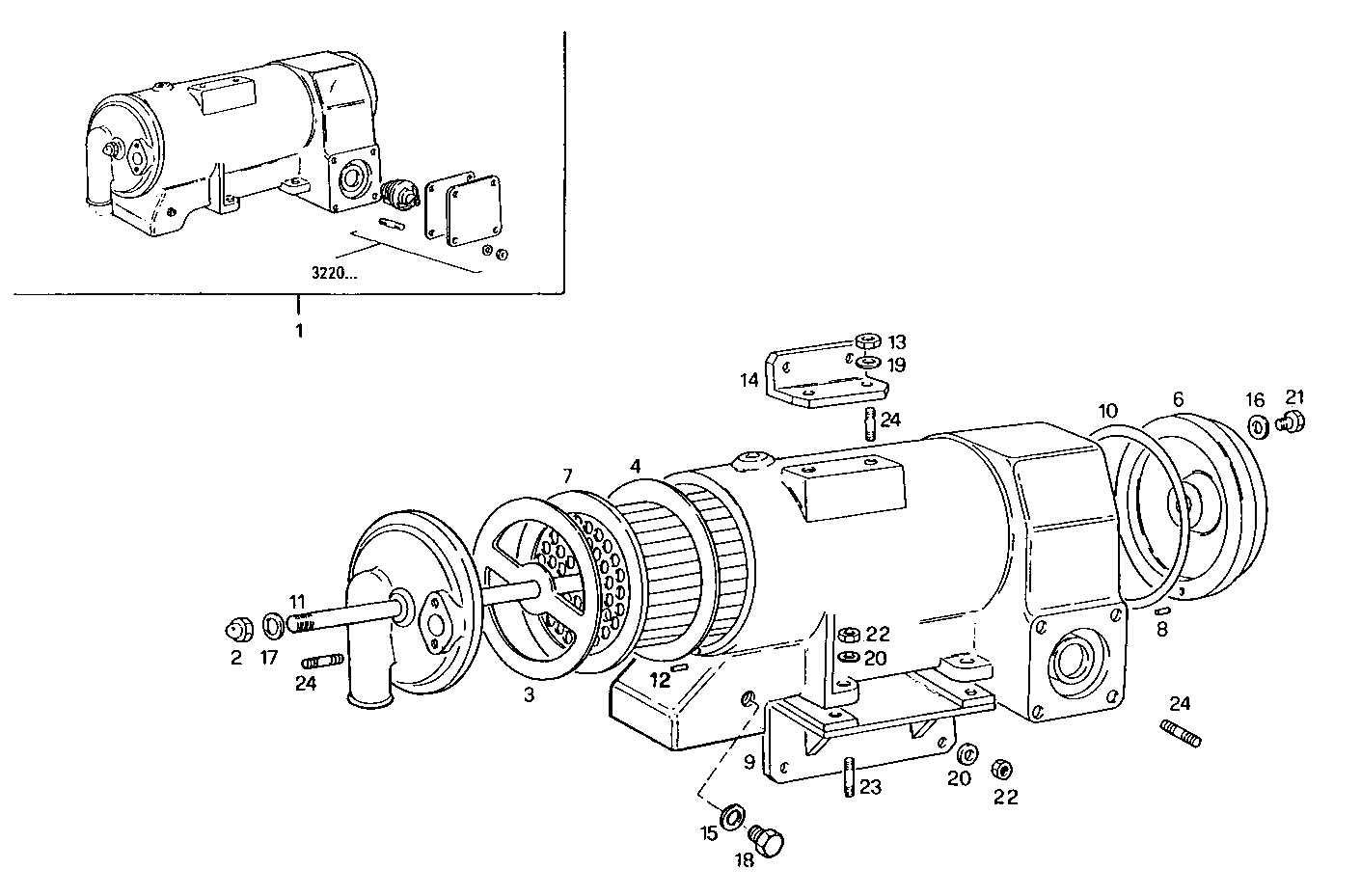

| Item |
Part number |
Description |
|
1 |
8023116 |
WATER/SEA WATER HEAT EXCH ASSY |
|
2 |
4918907 |
NUT |
|
3 |
4918921 |
GASKET |
|
4 |
4930157 |
GASKET |
|
5 |
8015958 |
HEAT EXCHANG.COVER FRONT |
|
6 |
4934733 |
HEAT EXCHANG.COVER REAR |
|
7 |
8109802 |
TUBE STACK |
|
8 |
17253670 |
PIN Ø4X14 MM |
|
9 |
8110967 |
SUPPORT |
|
10 |
4918846 |
O-RING |
|
11 |
8111067 |
TIE ROD |
|
12 |
17253870 |
PIN Ø4X18 MM |
|
13 |
17037931 |
HEXAGON NUT M8X1,25 |
|
14 |
8113746 |
RETAINER |
|
15 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
16 |
4858606 |
GASKET Ø10X14X1 MM |
|
17 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
18 |
16992440 |
THREADED PLUG M16X1,5 |
|
19 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
20 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
21 |
11903140 |
PLUG M10X1,25 |
|
22 |
17038221 |
HEXAGON NUT M10 |
|
23 |
13449721 |
STUD M10X15X30 |
|
24 |
16729321 |
STUD M8X1,25X20 |
