8040SRM16.10

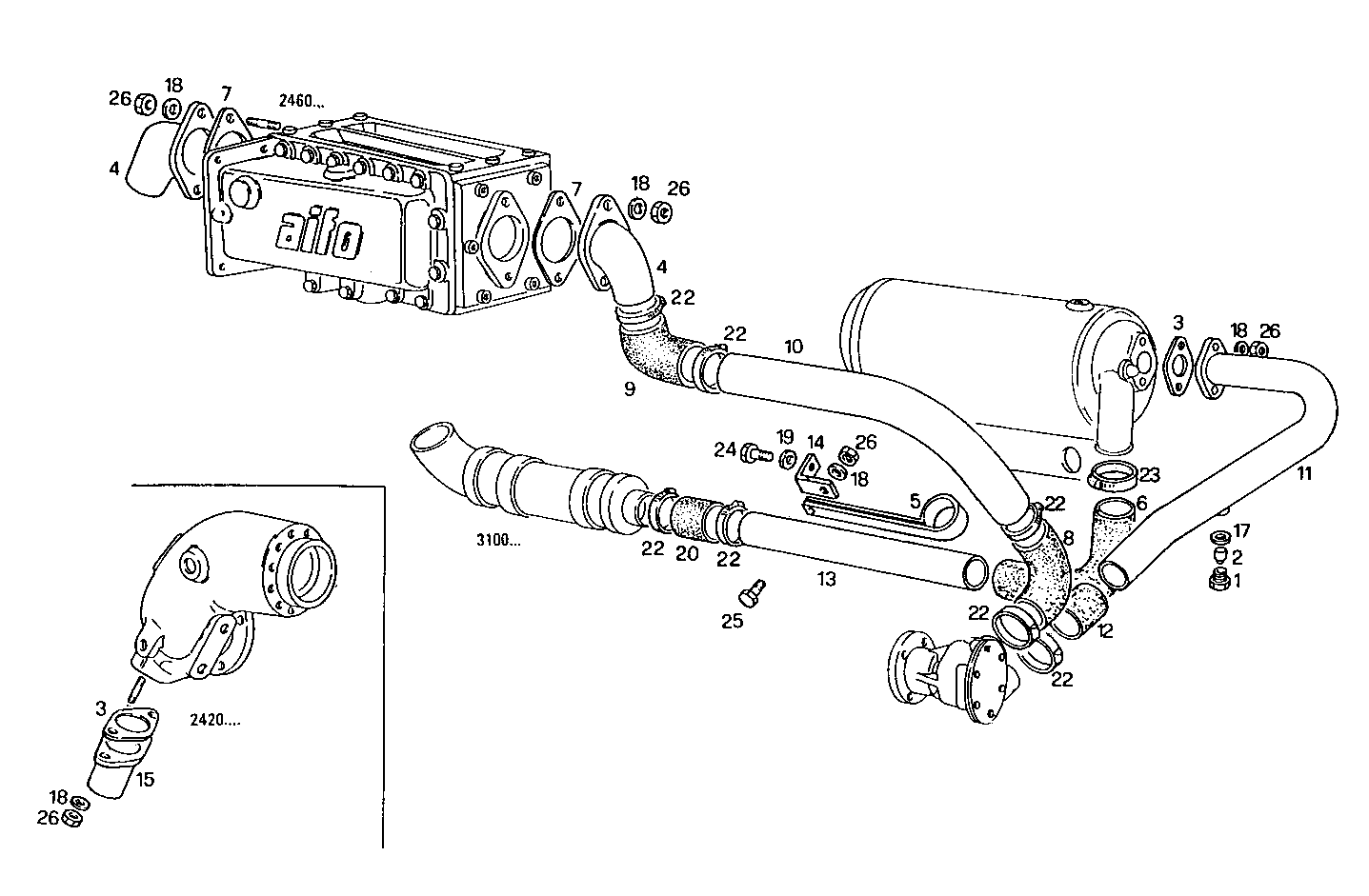

3390.052 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4917793 | PLUG M18 |
| 2 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 3 | 8008755 | FLAT ENGINE GASKET |
| 4 | 4936734 | WATER PIPE |
| 5 | 8103077 | CLIP |
| 6 | 4936760 | RUBBER SLEEVE |
| 7 | 4936793 | GASKET |
| 8 | 8100546 | RUBBER SLEEVE |
| 9 | 8102099 | RUBBER SLEEVE |
| 10 | 8111071 | WATER PIPE |
| 11 | 8023085 | WATER PIPE |
| 13 | 8023086 | WATER PIPE |
| 14 | 8023122 | RETAINER |
| 15 | 8112744 | WATER PIPE |
| 17 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 18 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 19 | 17090174 | SPRING WASHER Ø10X20 MM |
| 20 | 17742687 | RUBBER SLEEVE |
| 22 | 17764793 | CLIP Ø32/50 MM |
| 23 | 17764893 | CLIP Ø40/60 MM |
| 24 | 15970321 | HEXAGON BOLT M10X16 MM |
| 25 | 16605524 | HEXAGON BOLT M8X20 MM |
| 26 | 17037931 | HEXAGON NUT M8X1,25 |
