8040SRM16.10

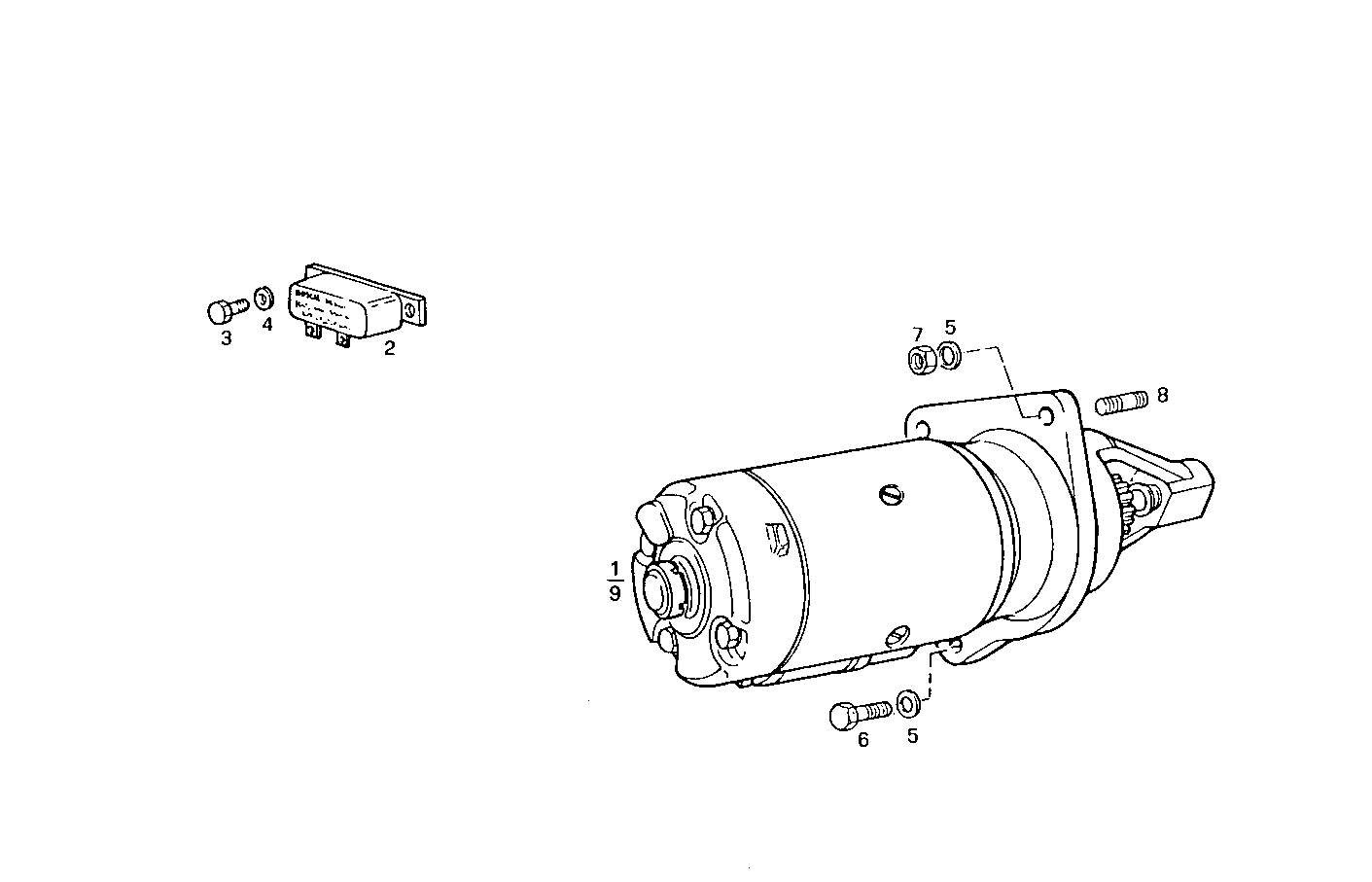

3600.069 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4728682 | STARTER MOTOR ASSY BOSCH - 12V |
| 2 | 8108574 | RELAY STARTER |
| 3 | 16603524 | SCREW M6X12 MM (8.8) |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 11306921 | SCREW M10X1,25X30 |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 13449521 | STUD M10X15X25 |
| 9 | 4807373 | STARTER MOTOR ASSY MARELLI |
