8040SRM16.10

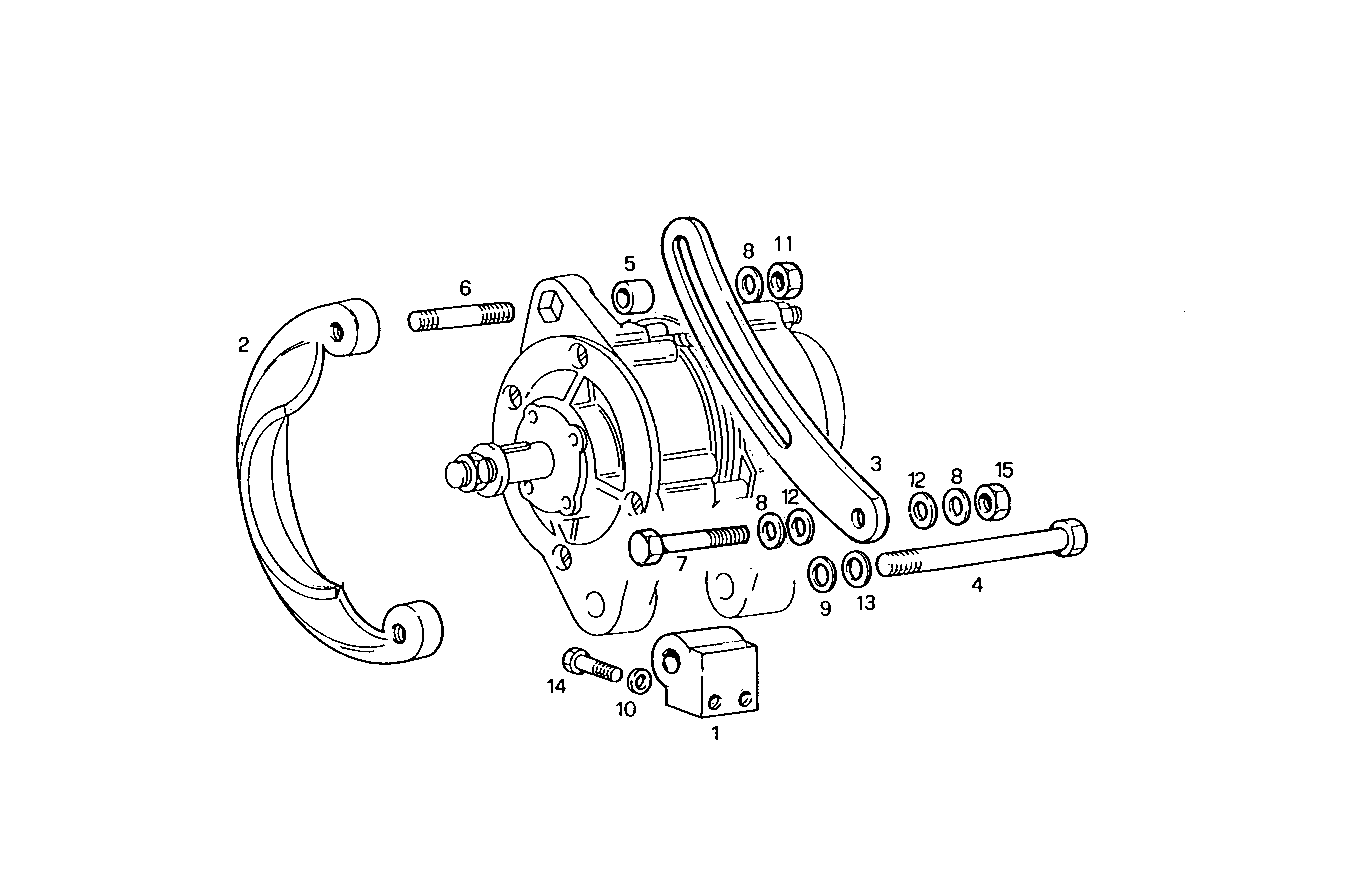

4010.076 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4600128 | GENERATOR SUPPORT |
| 2 | 4618825 | PROTECTION |
| 3 | 4626125 | RETAINER |
| 4 | 4636776 | SCREW |
| 5 | 8101556 | SPACING BAR SP=13,00 MM |
| 6 | 8111079 | STUD |
| 7 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 17094914 | WASHER 8x16 |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 17095104 | WASHER Ø10X21X2 MM |
| 13 | 17095304 | WASHER Ø12X24 MM |
| 14 | 16606124 | HEXAGON BOLT M8X50 MM |
| 15 | 17153021 | HEXAGON NUT M10X1,25 |
