8041C05.05

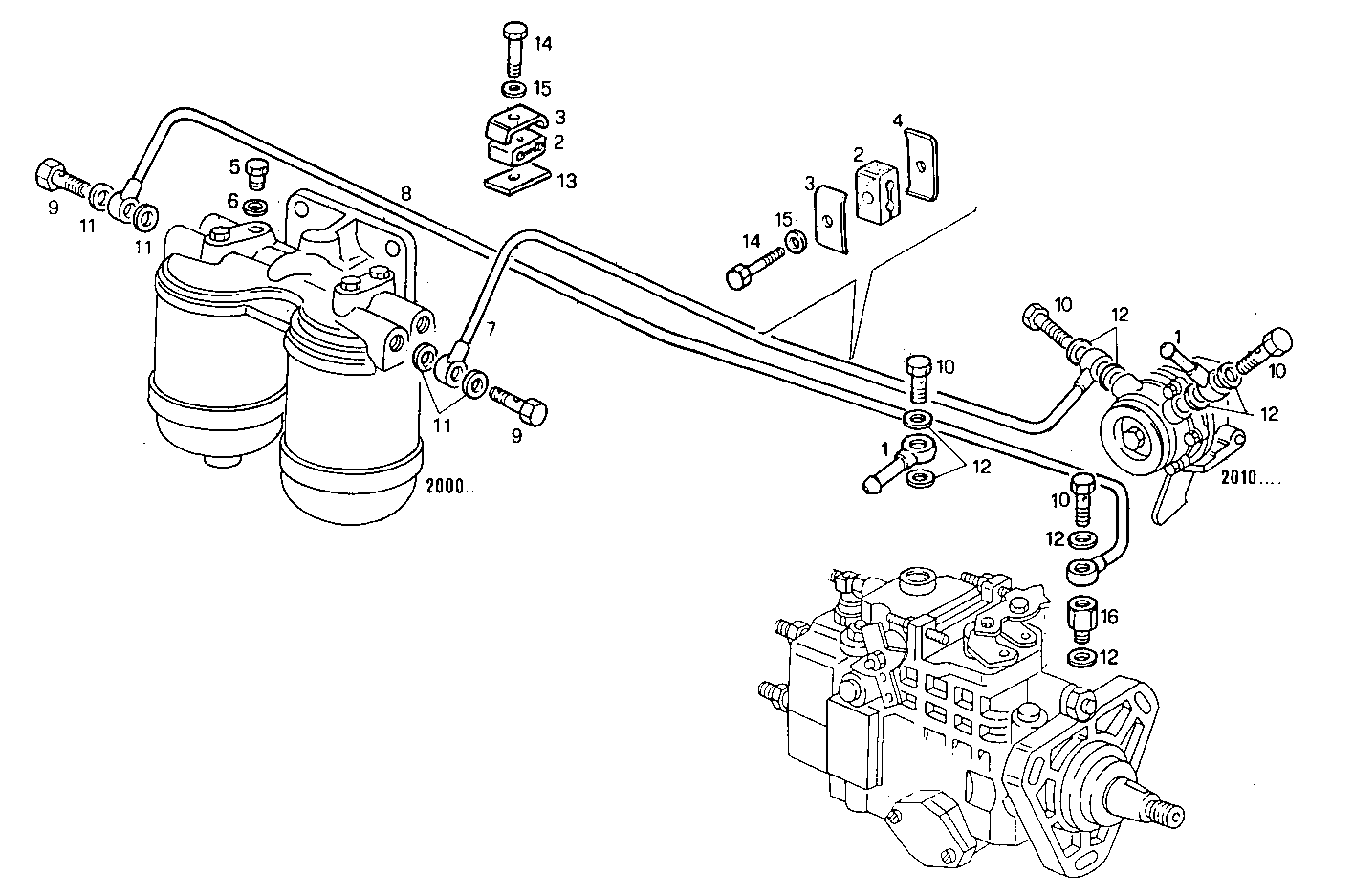

2030.080 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98416591 | SWIVEL COUPLING |
| 2 | 4659217 | DOWEL |
| 3 | 4659218 | CLIP |
| 4 | 4659219 | PLATE |
| 5 | 4617973 | SCREW CONNECTOR |
| 6 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 7 | 98419955 | FUEL LINE |
| 8 | 98419867 | FUEL LINE |
| 9 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 10 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 11 | 98474308 | SEAL GASKET Ø14X22 MM |
| 12 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 13 | 4751103 | PLATE |
| 14 | 10978221 | HEXAGON BOLT M5X25 MM |
| 15 | 11195470 | SPRING WASHER Ø5,3 MM |
| 16 | 4934594 | PIPE SOCKET |
