8041C05.05

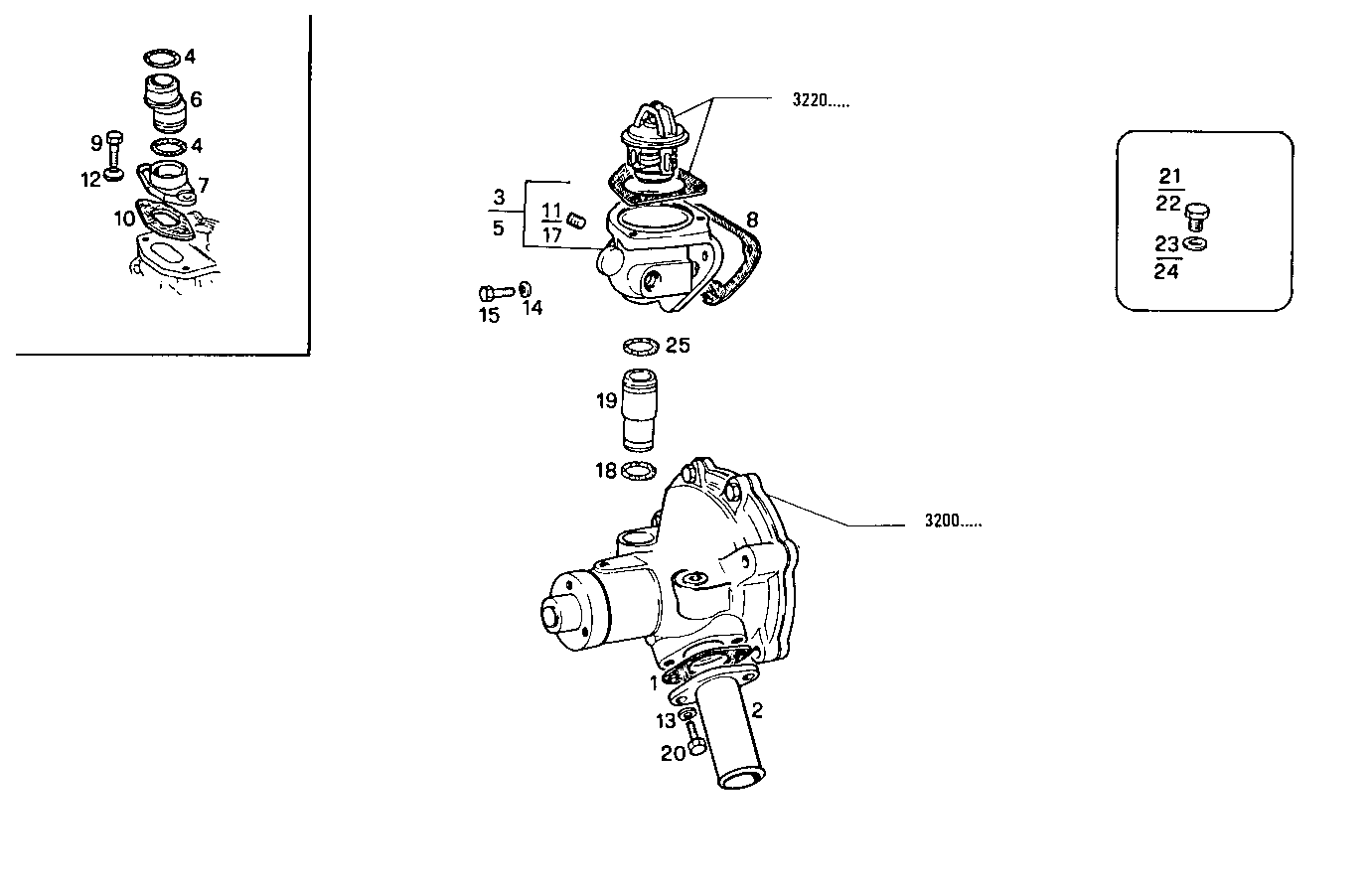

3210.088 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 4772995 WATER PIPE
3 4804633 THERMOSTAT BODY ASSY [up to 545609]
4 98458442 O-RING Ø24,99 MM SP=3,53 MM [from 657424]
5 98432305 THERMOSTAT BODY ASSY [from 545610]
6 4859908 PIPE SOCKET [up to 657423]
7 4859907 PIPE SOCKET [up to 657423]
8 4851926 FLAT ENGINE GASKET
9 4798845 SCREW
10 98417182 FLAT ENGINE GASKET [up to 07-92]
11 14325301 LOCK PLUG Ø22 MM
12 14496521 WASHER Ø8,5 MM
13 17094914 WASHER 8x16
14 17090274 WASHER Ø10X20 MM
15 11234721 HEXAGON BOLT M10X1,25X45 MM
17 14325201 LOCK PLUG
18 17288681 O-RING Ø24,9 MM SP=3,5 MM
19 98415712 PIPE SOCKET [from 657424]
20 98401723 HEXAGON BOLT M8X1,25X12 MM
21 10305171 PLUG M22X1,5
22 16992440 THREADED PLUG M16X1,5
23 10263460 WASHER Ø22X28X1,5 MM
24 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
25 17282281 O-RING 2,62x23,47
