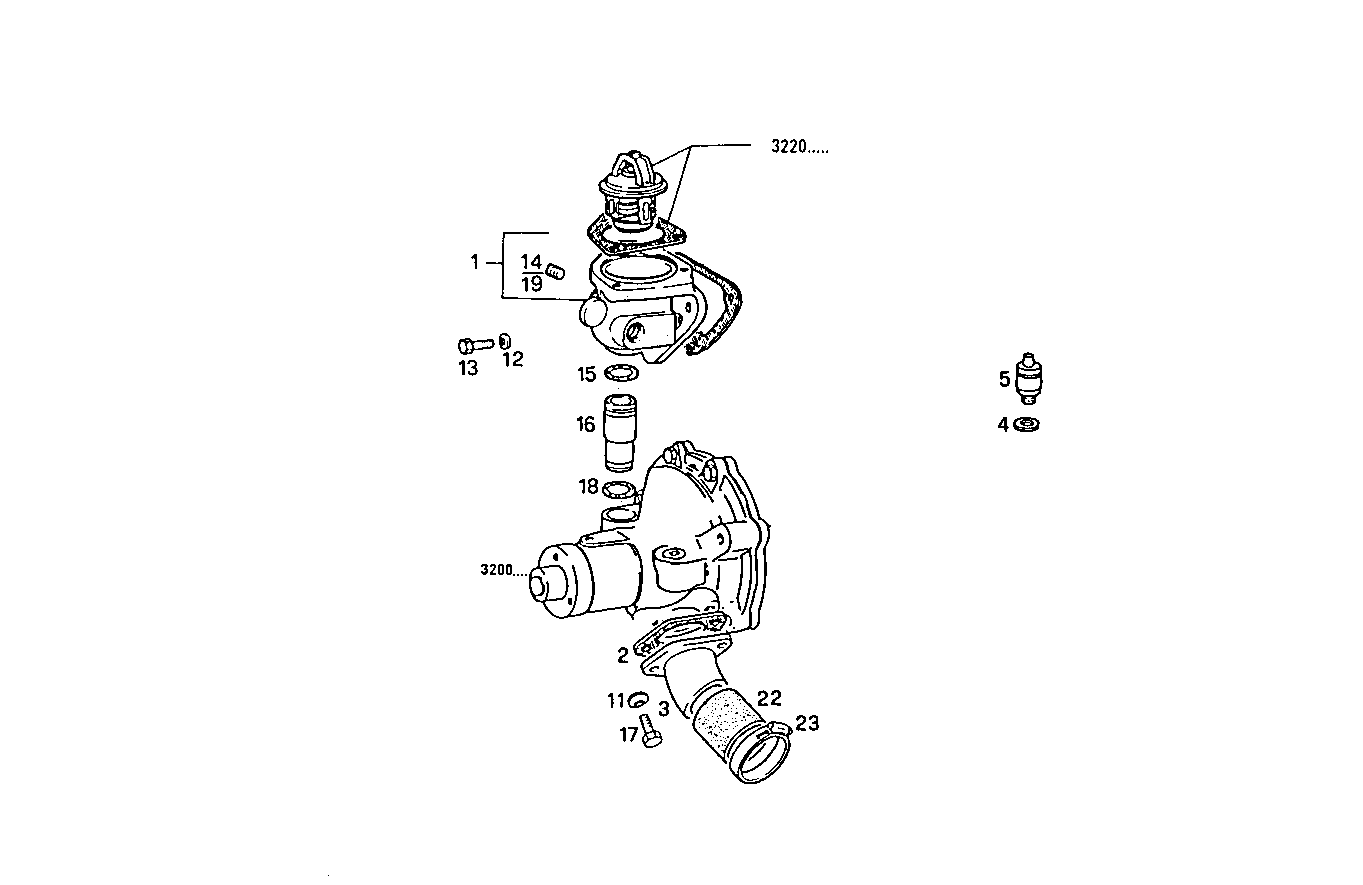

| Item |
Part number |
Description |
|
1 |
98432305 |
THERMOSTAT BODY ASSY [from 545610] |
|
2 |
4852556 |
FLAT ENGINE GASKET |
|
3 |
4800147 |
PIPE |
|
4 |
10278660 |
SEAL GASKET Ø16X22 MM SP=1 MM |
|
5 |
4849451 |
TRANSMITTER |
|
6 |
4851926 |
FLAT ENGINE GASKET |
|
11 |
17094914 |
WASHER 8x16 |
|
12 |
17090274 |
WASHER Ø10X20 MM |
|
13 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
14 |
14325301 |
LOCK PLUG Ø22 MM |
|
15 |
17282281 |
O-RING 2,62x23,47 |
|
16 |
98415712 |
PIPE SOCKET [from 657424] |
|
17 |
98401723 |
HEXAGON BOLT M8X1,25X12 MM |
|
18 |
17288681 |
O-RING Ø24,9 MM SP=3,5 MM |
|
19 |
14325201 |
LOCK PLUG |
|
22 |
98434881 |
WATER HOSE |
|
23 |
17764792 |
HOSE CLIP Ø32-50 MM |
