8041C05.06

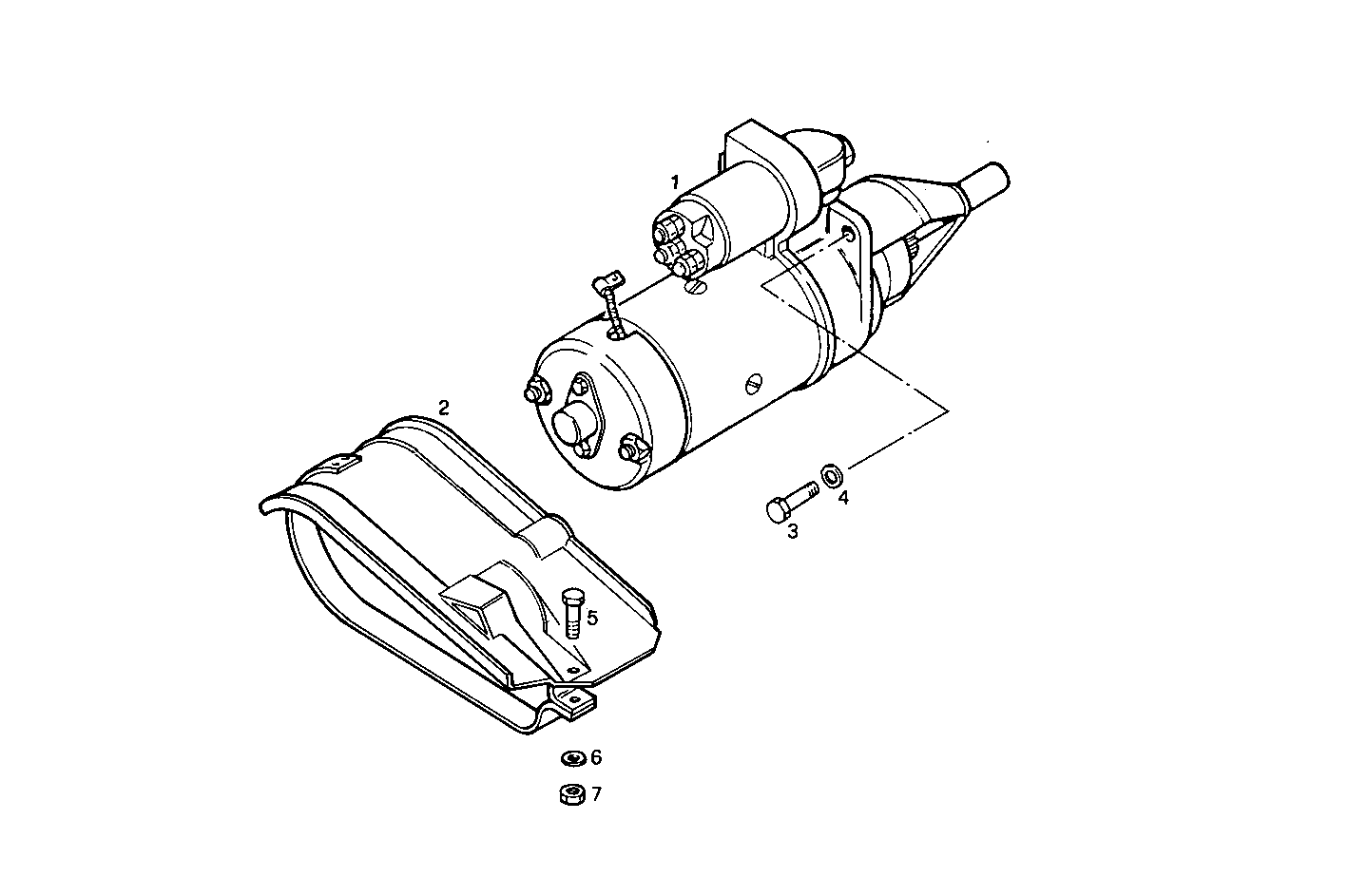

A10000014 STARTER MOTOR - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 4744841 | STARTER MOTOR ASSY BOSCH |
| 2 | 4721863 | PROTECTION |
| 3 | 11306921 | SCREW M10X1,25X30 |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16604124 | HEXAGON BOLT M6X40 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 17037721 | NUT M5X0,8 |
