8041C05.06A018

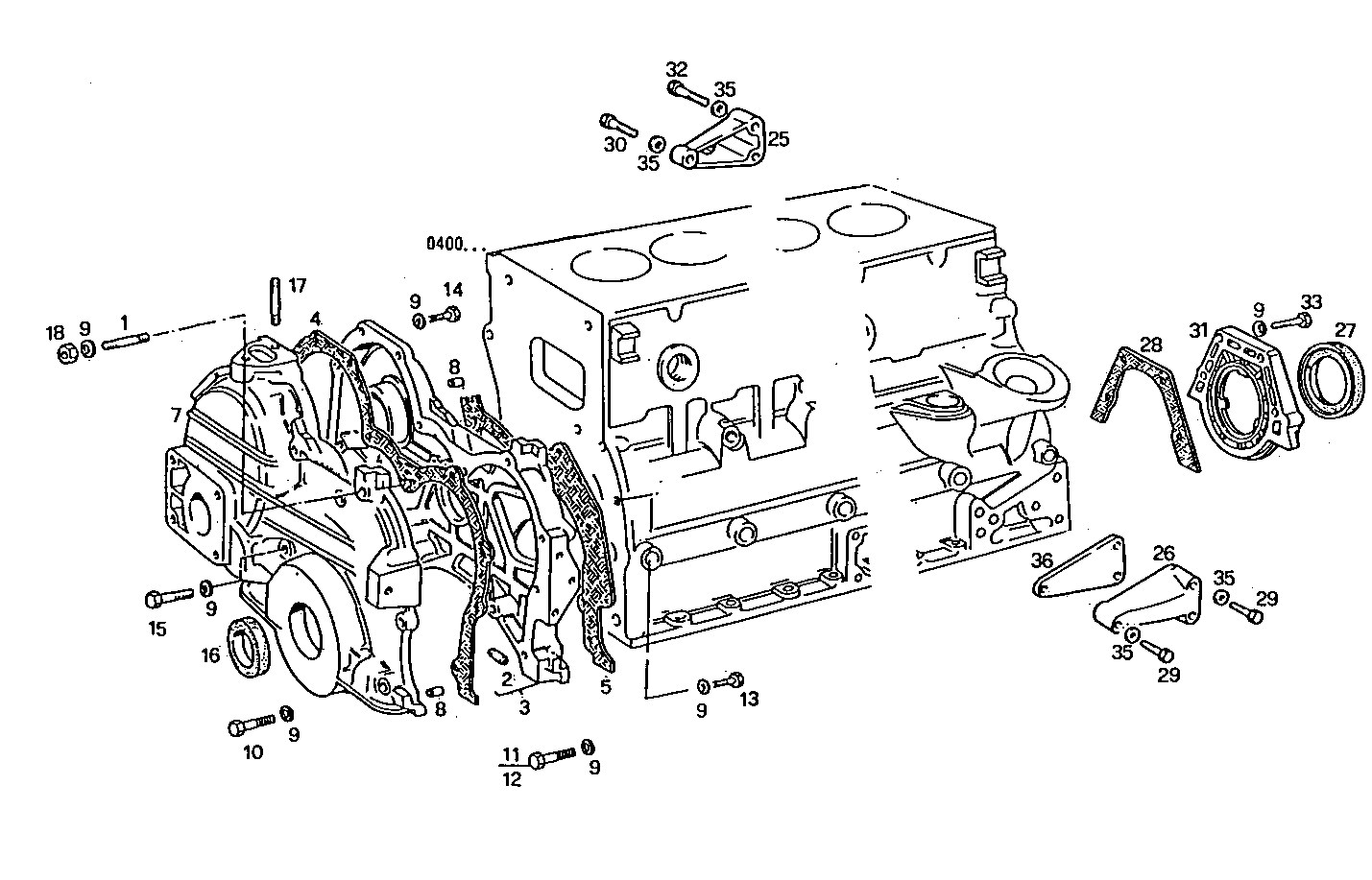

0430.105 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 13543621 | STUD M8X16X30 MM |
| 2 | 4605220 | OIL NOZZLE |
| 3 | 500321670 | TIMINGGEAR HOUSIN ASSY REAR |
| 4 | 98424045 | FLAT ENGINE GASKET |
| 5 | 98424046 | FLAT ENGINE GASKET |
| 7 | 500304835 | FRONT C.CASE COVER ASSY |
| 8 | 10839610 | DOWEL PIN Ø8 MM |
| 9 | 17094914 | WASHER 8x16 |
| 10 | 16605824 | HEXAGON BOLT M8X35 MM |
| 11 | 16043521 | SCREW M8X22 |
| 12 | 16605734 | HEXAGON BOLT M8X30 MM |
| 13 | 16606524 | HEXAGON BOLT M8X70 MM |
| 14 | 16606124 | HEXAGON BOLT M8X50 MM |
| 15 | 16044921 | HEXAGON BOLT M8X1,25X85 MM |
| 16 | 99469265 | SHAFT SEAL CORCOS |
| 17 | 13516821 | STUD M8X12X20 MM |
| 18 | 17037931 | HEXAGON NUT M8X1,25 |
| 25 | 98442609 | BRACKET LEFT |
| 26 | 98442608 | BRACKET LEFT |
| 27 | 99457401 | SHAFT SEAL CORCOS |
| 28 | 4849994 | FLAT ENGINE GASKET |
| 29 | 16610624 | SCREW M12X1,75 |
| 30 | 16611224 | HEXAGON BOLT M12X120 MM |
| 31 | 98489586 | REAR C.CASE COVER |
| 32 | 16610924 | HEXAGON BOLT M12X90 MM |
| 35 | 17091074 | WASHER Ø12X24X2,8 MM |
| 36 | 8019676 | SPACING BAR |
