8041C05.06A018

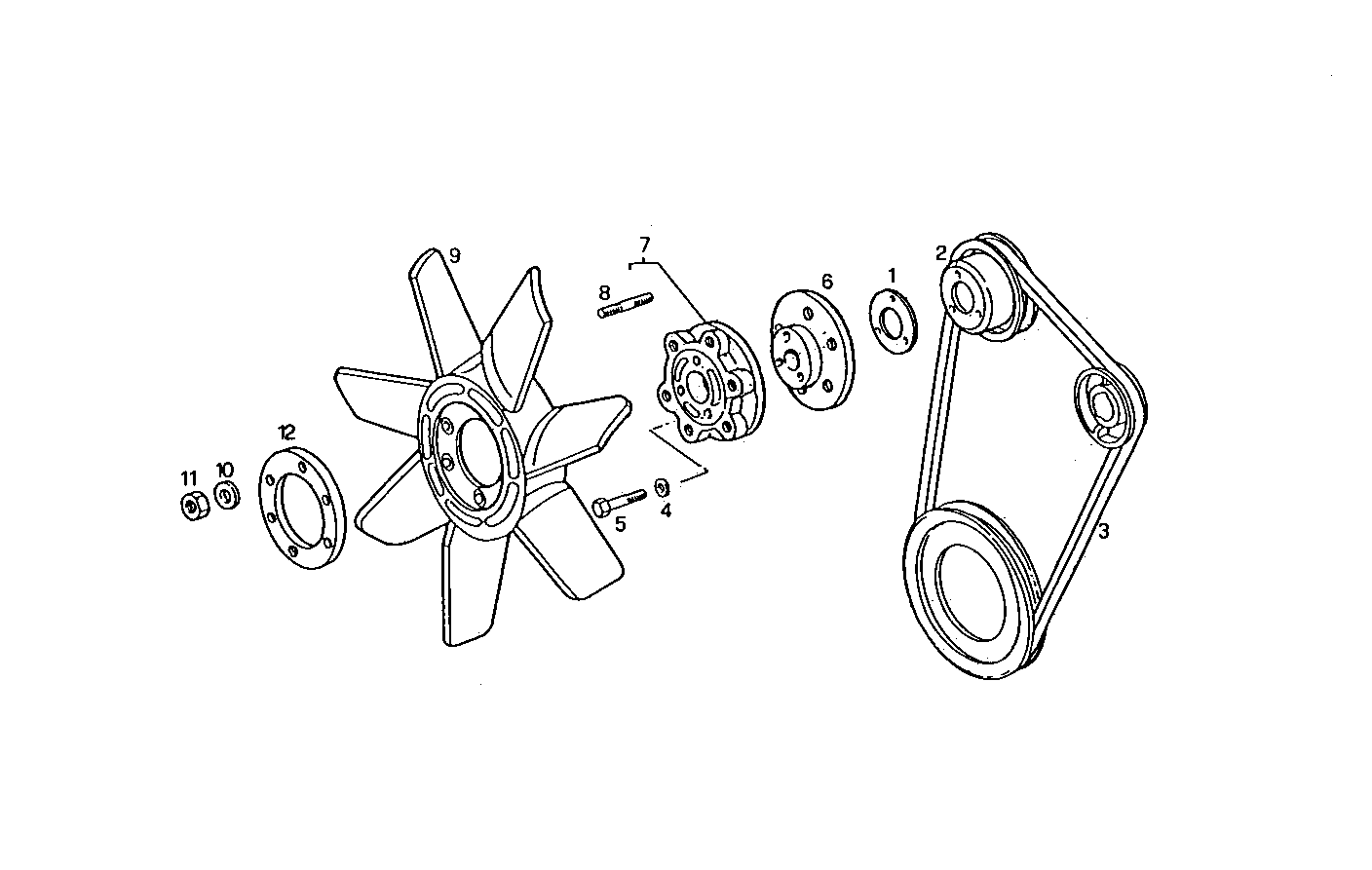

3240.068 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4584861 | SPACING BAR |
| 2 | 4811416 | WATER PUMP PULLEY |
| 3 | 4809680 | V-BELT |
| 4 | 17094914 | WASHER 8x16 |
| 5 | 16606724 | HEXAGON BOLT M8X90 MM |
| 6 | 8105170 | SPACING BAR |
| 7 | 4812546 | SPACING BAR |
| 8 | 13449821 | STUD M10X1,25X15 MM |
| 9 | 4800473 | BLOWER Ø420 MM |
| 10 | 17095004 | WASHER Ø10X18X2 MM |
| 11 | 17153021 | HEXAGON NUT M10X1,25 |
| 12 | 4629908 | SUPPORT RING |
