8041C05.06A019

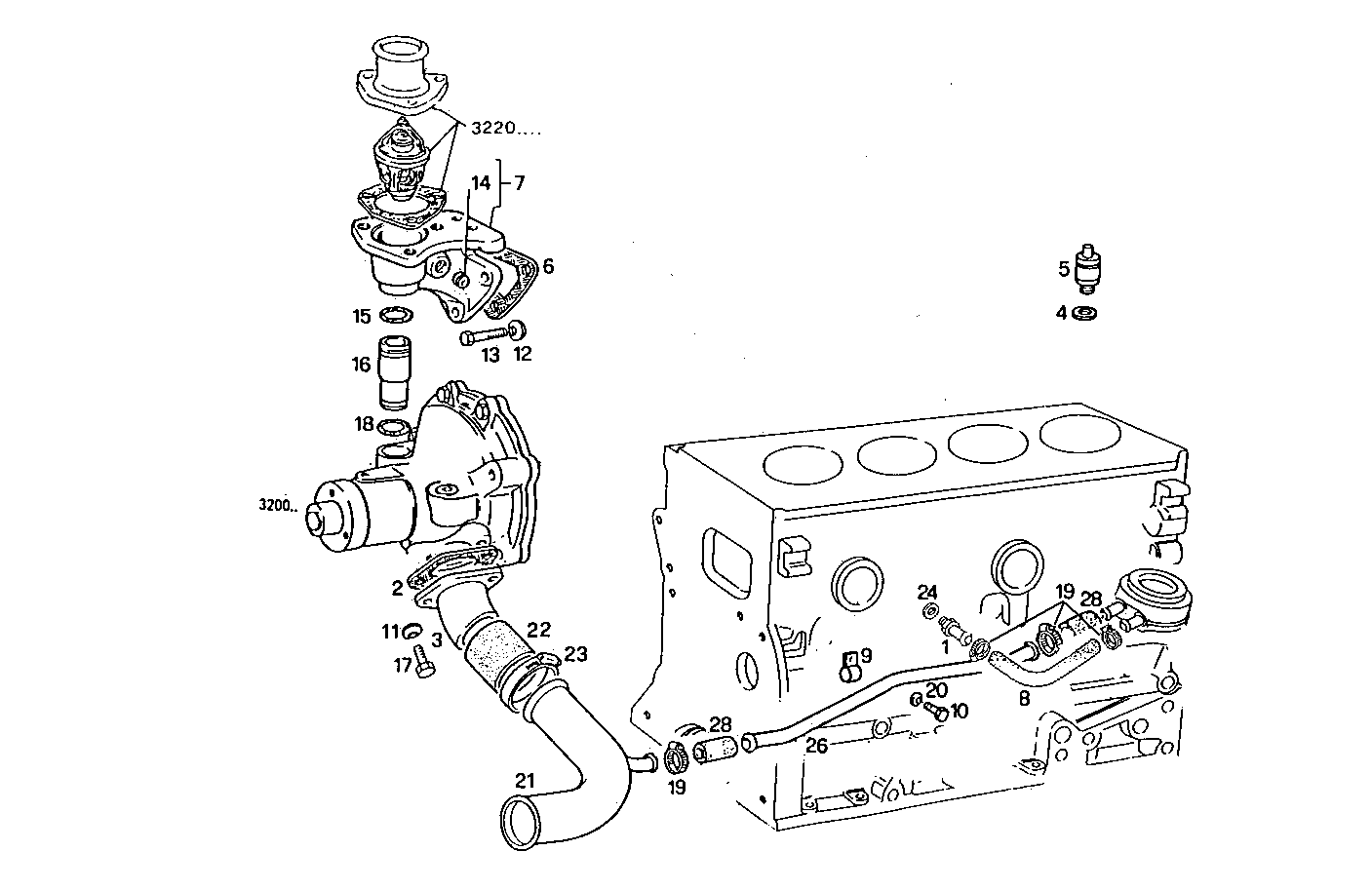

3210.118 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 98418647 PIPE SOCKET
2 4852556 FLAT ENGINE GASKET
3 4800147 PIPE
4 10278660 SEAL GASKET Ø16X22 MM SP=1 MM
5 4849451 TRANSMITTER
6 4851926 FLAT ENGINE GASKET
7 98432305 THERMOSTAT BODY ASSY [from 545610]
8 8019449 WATER HOSE
9 4763572 FASTENING BRACKET
10 16609824 HEXAGON BOLT M12X1,75X25 MM
11 17094914 WASHER 8x16
12 17090274 WASHER Ø10X20 MM
13 11234721 HEXAGON BOLT M10X1,25X45 MM
14 14325301 LOCK PLUG Ø22 MM
15 17288681 O-RING Ø24,9 MM SP=3,5 MM
16 98415712 PIPE SOCKET [from 657424]
17 98401723 HEXAGON BOLT M8X1,25X12 MM
18 17282281 O-RING 2,62x23,47
19 18088391 CLIP Ø16/25 MM
20 17091074 WASHER Ø12X24X2,8 MM
21 8022308 WATER PIPE
22 98434881 WATER HOSE
23 17764792 HOSE CLIP Ø32-50 MM
24 10263460 WASHER Ø22X28X1,5 MM
26 8019447 WATER PIPE
28 17737187 WATER HOSE
