8041C05.06A019

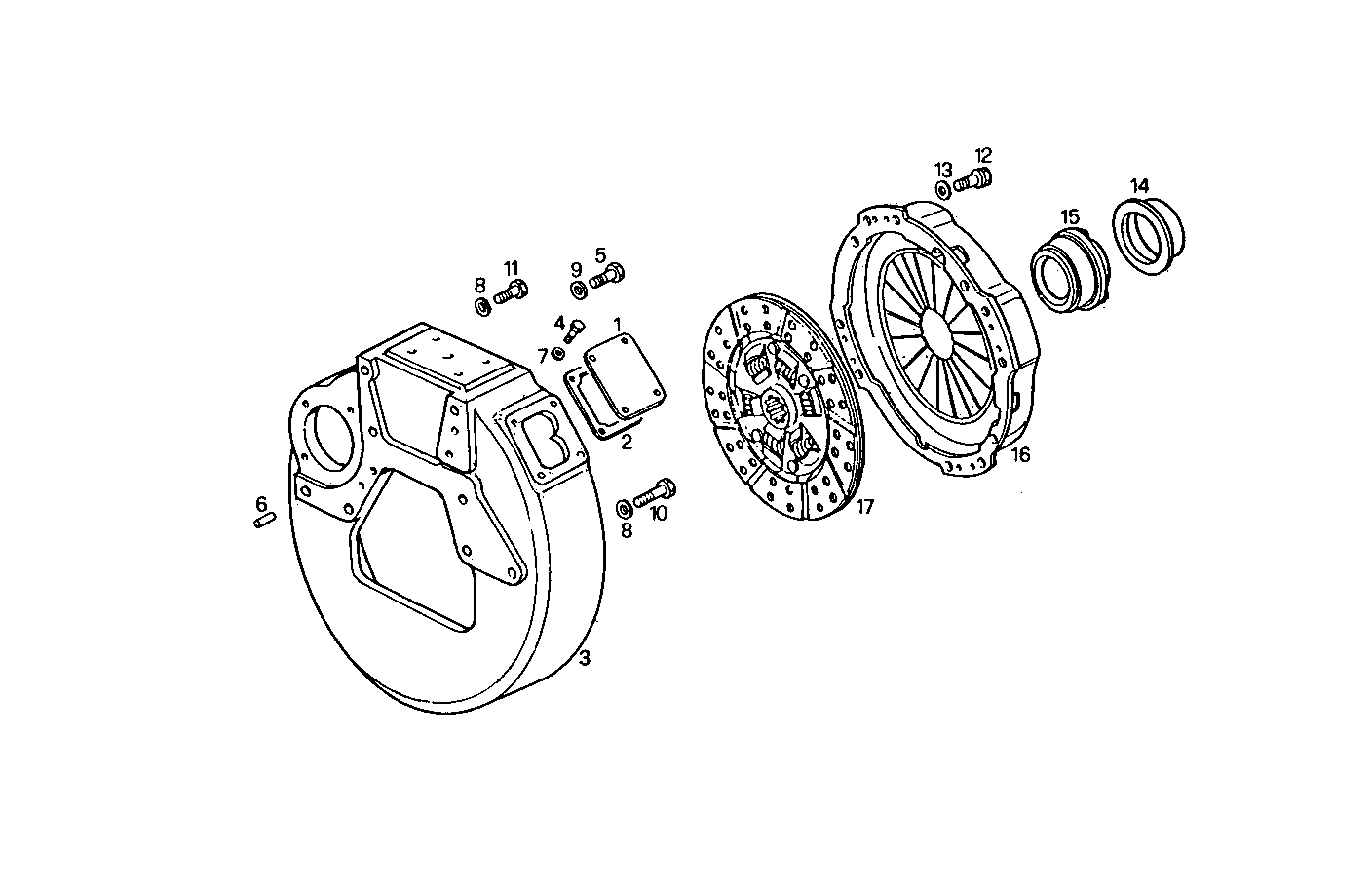

5200.005 CLUTCH
| Item | Part number | Description |
|---|---|---|
| 1 | 98417985 | COVER |
| 2 | 98417986 | FLAT ENGINE GASKET |
| 3 | 8022711 | SUPPORT |
| 4 | 16043521 | SCREW M8X22 |
| 5 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 6 | 17275510 | DOWEL PIN �10 MM |
| 7 | 17089474 | SPRING WASHER �8X16 MM SP=1,4 MM |
| 8 | 17091674 | WASHER �14X27X3,0 MM |
| 9 | 17090174 | SPRING WASHER �10X20 MM |
| 10 | 16612424 | HEXAGON BOLT M14X40 MM |
| 11 | 16612924 | SCREW |
| 12 | 4659180 | HEXAGON BOLT M10X22 MM |
| 13 | 17095004 | WASHER �10X18X2 MM |
| 14 | 8022924 | SPACING BAR |
| 15 | 8022921 | HUB |
| 16 | 8022917 | SWITCHGEAR |
| 17 | 4834868 | CLUTCH DISC |
