8041i05.00

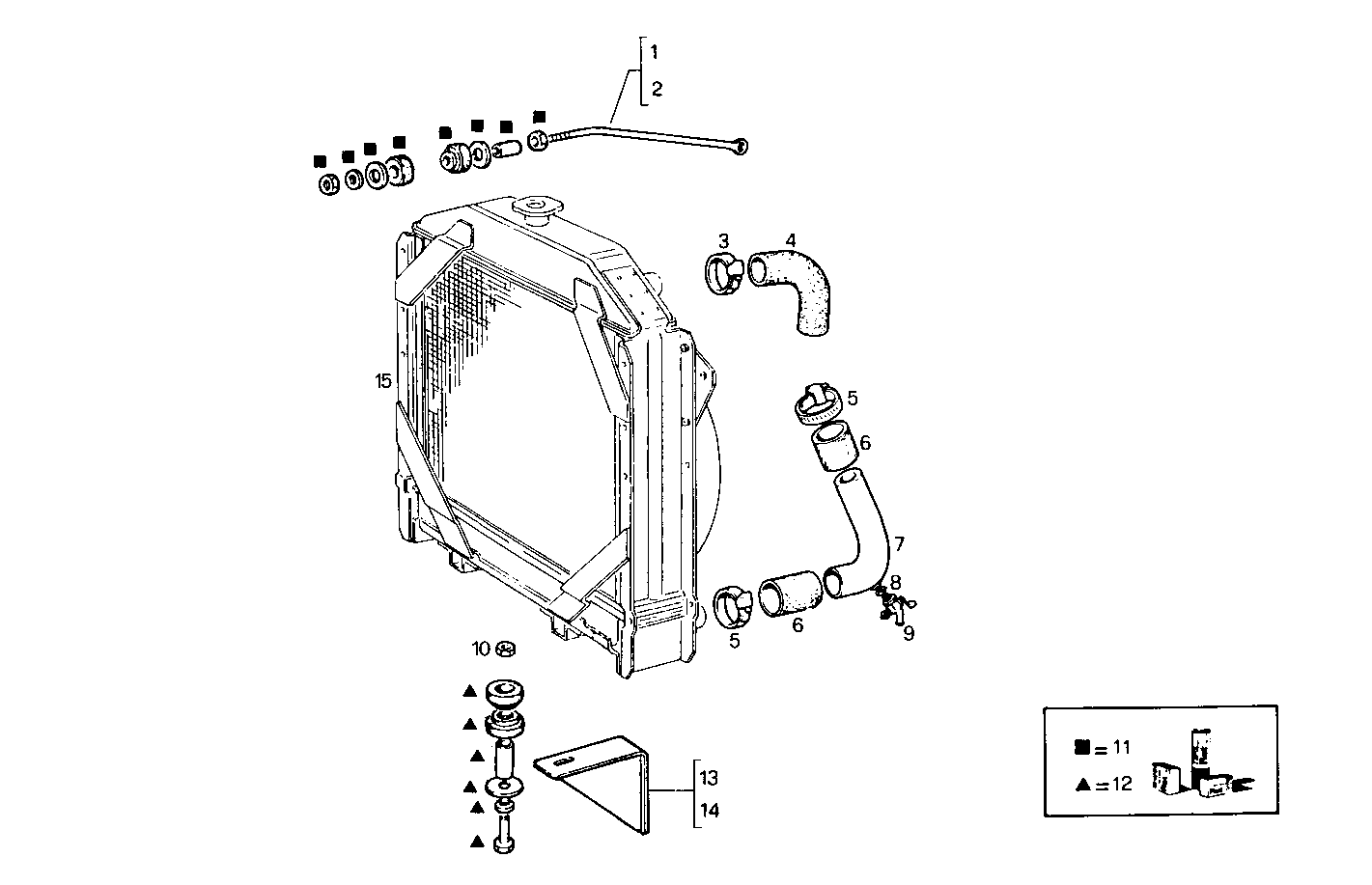

A22010006 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 8103198 | TIE ROD RIGHT |
| 2 | 8103199 | TIE ROD LEFT |
| 3 | 17764992 | CLIP Ø50-70 MM |
| 4 | 4950088 | WATER PIPE |
| 5 | 17764792 | HOSE CLIP Ø32-50 MM |
| 6 | 596152 | RUBBER SLEEVE |
| 7 | 4614162 | WATER PIPE |
| 8 | 10278660 | SEAL GASKET Ø16X22 MM SP=1 MM |
| 9 | 8802992 | RETAINER COCK |
| 10 | 12164711 | HEXAGON NUT M10X1,25 |
| 11 | 8090340 | KIT-RADIATOR A.S. COMPLETE |
| 12 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 13 | 8104250 | SUPPORT RIGHT |
| 14 | 8104274 | SUPPORT LEFT |
| 15 | 8009087 | WATER RADIATOR ASSY |
