8041i05.00

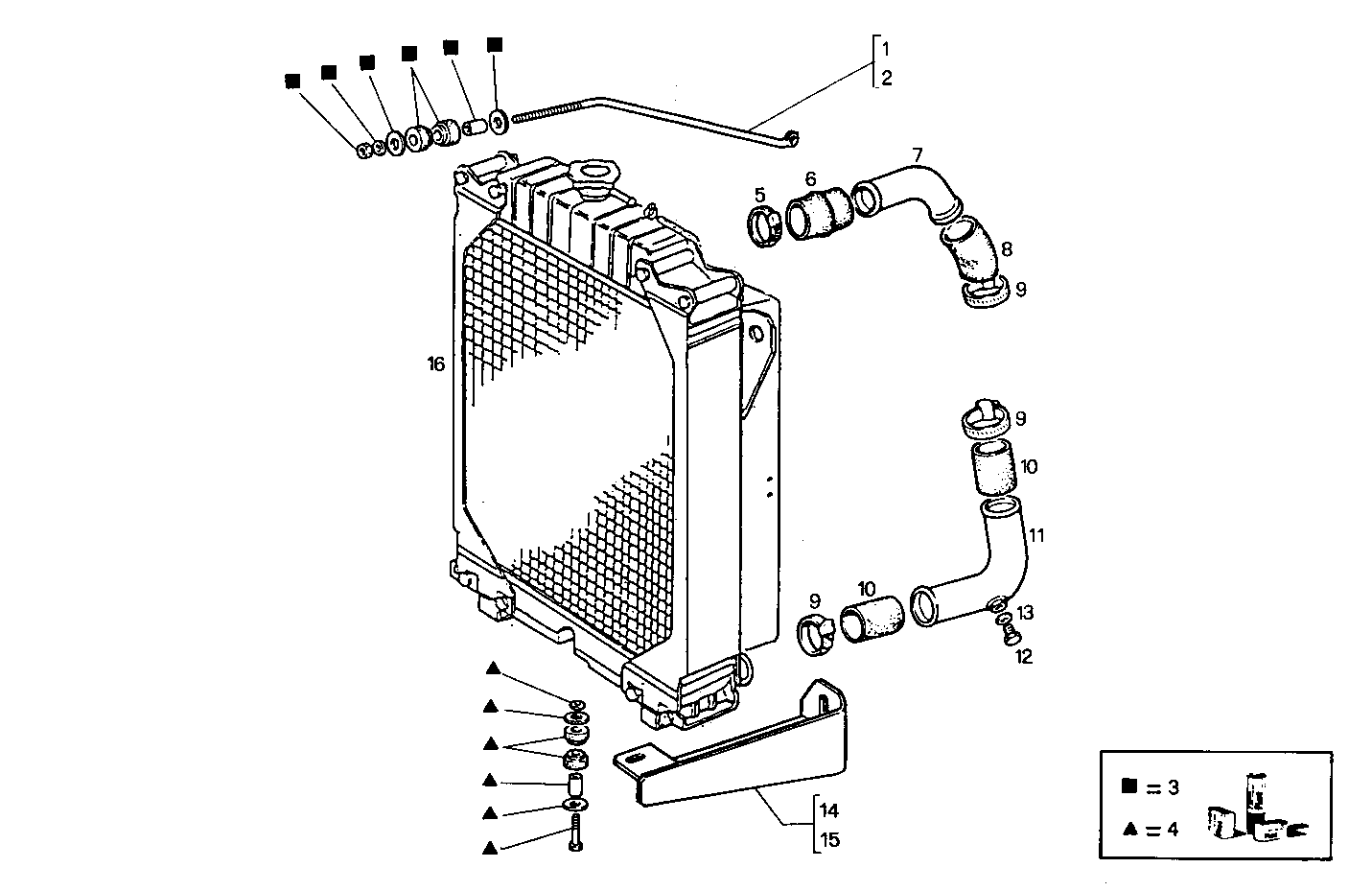

A22060002 OVERSIZE RADIATOR - reduced air circulation
| Item | Part number | Description |
|---|---|---|
| 1 | 8020111 | TIE ROD |
| 2 | 8104607 | TIE ROD |
| 3 | 8090340 | KIT-RADIATOR A.S. COMPLETE |
| 4 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
| 5 | 17764892 | PIPE CLIP Ø40-60 MM |
| 6 | 4787630 | RUBBER SLEEVE |
| 7 | 8105330 | WATER PIPE |
| 8 | 10138787 | RUBBER SLEEVE |
| 9 | 17764792 | HOSE CLIP Ø32-50 MM |
| 10 | 17742687 | RUBBER SLEEVE |
| 11 | 8104865 | WATER PIPE |
| 12 | 16992111 | THREADED PLUG M10X1 |
| 13 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 14 | 8104796 | SUPPORT RIGHT |
| 15 | 8104799 | SUPPORT LEFT |
| 16 | 8009112 | WATER RADIATOR ASSY |
