8041i05.00

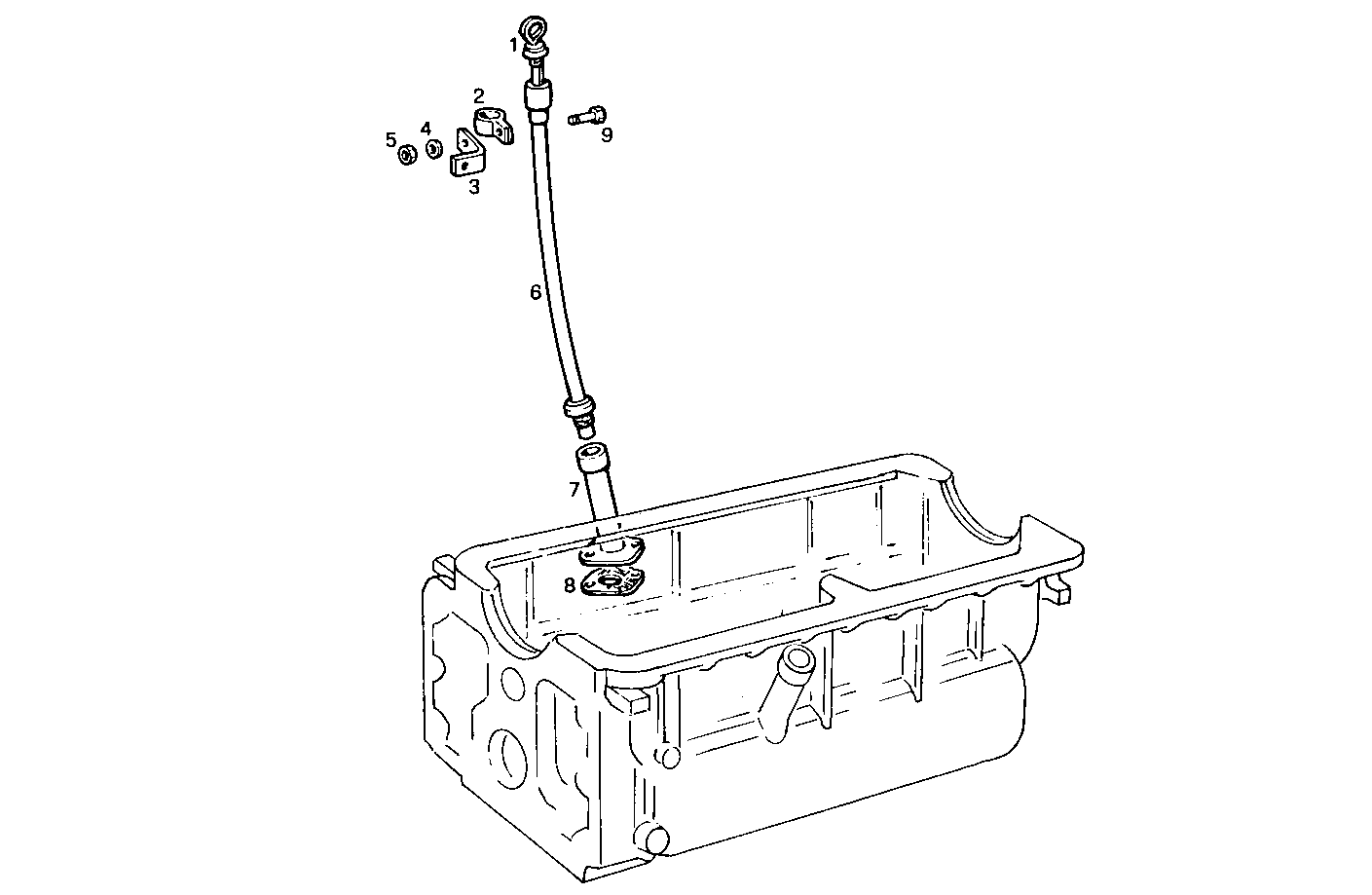

A41020002 LONG OIL DIPSTICK RIGHT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 4934504 | OIL DIPSTICK |
| 2 | 8100228 | CLIP |
| 3 | 8108989 | RETAINER |
| 4 | 11194071 | WASHER Ø8X16X1,9 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 8109240 | ROD GUIDE |
| 7 | 8105454 | OIL LINE |
| 8 | 4467612 | GASKET |
| 9 | 16043621 | HEXAGON BOLT M8X25 MM |
