8041i05.00

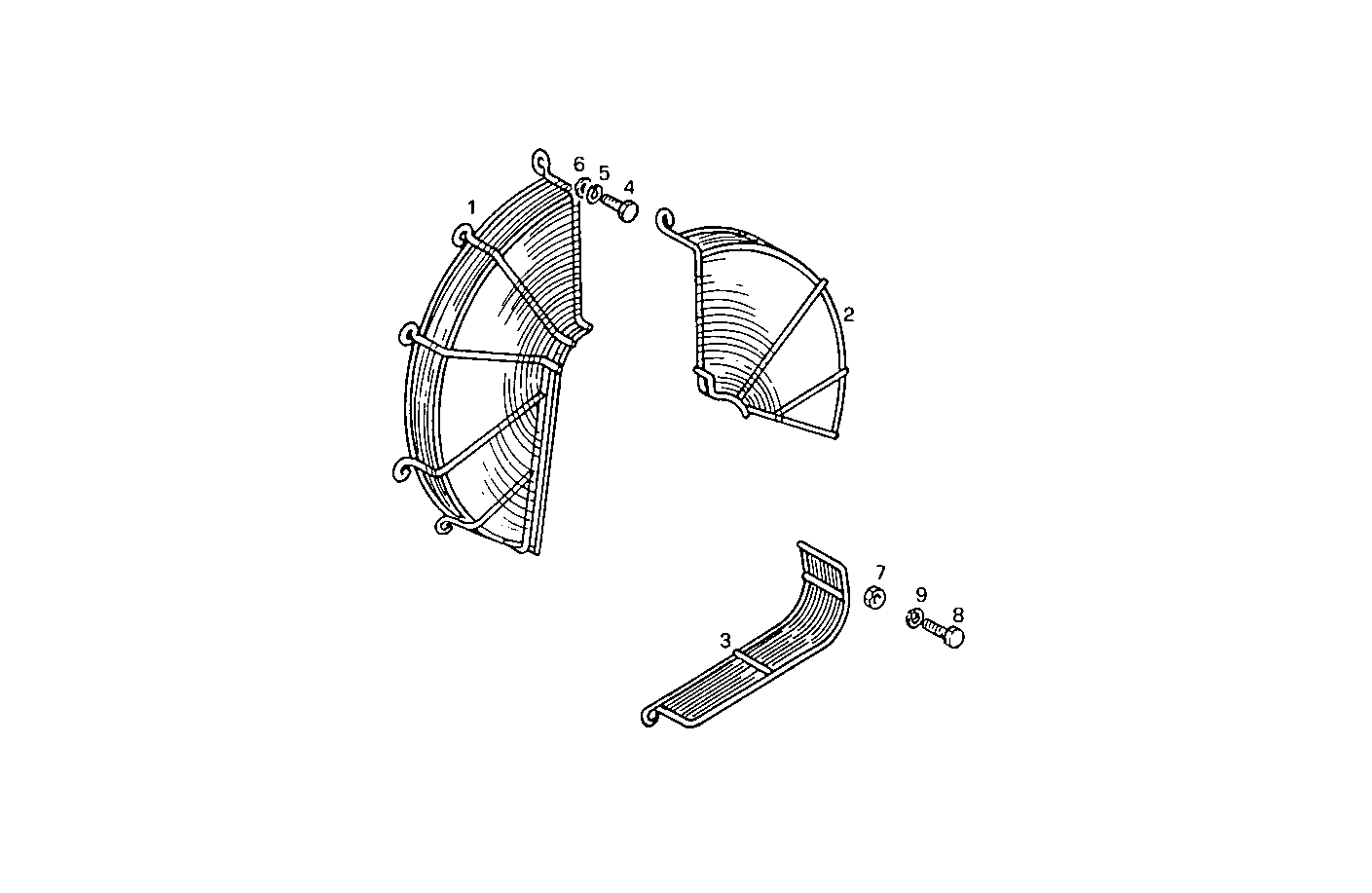

A48060001 GUARD - for fan and alternator
| Item | Part number | Description |
|---|---|---|
| 1 | 8101920 | PROTECTION |
| 2 | 8101936 | PROTECTION |
| 3 | 8101941 | PROTECTION |
| 4 | 10902421 | HEXAGON BOLT M6X20 MM |
| 5 | 11197779 | SPRING WASHER Ø6X12 MM |
| 6 | 14496501 | WASHER Ø8,5 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 16043621 | HEXAGON BOLT M8X25 MM |
| 9 | 11193879 | SPRING WASHER Ø8X16 MM |
