8041i05.05

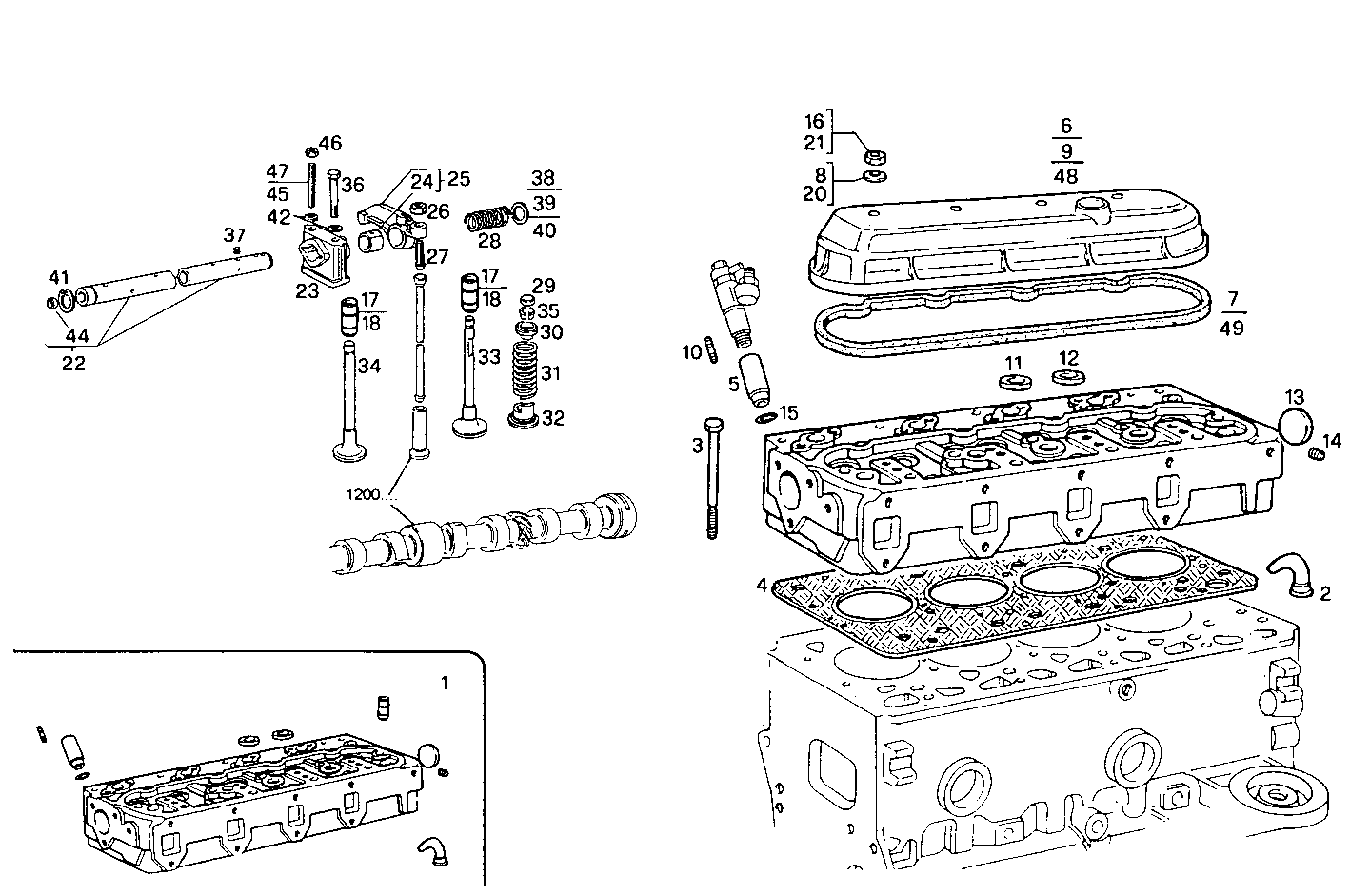

0600.034 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 99452262 CYLINDER HEAD ASSY
2 4818862 WATER CONVEYOR
3 4796457 CYL.HEAD STUD
4 1907835 CYL.HEAD GASKET SP=1,35 MM
5 4770859 NOZZLE HOLDER SEAT
6 4683627 CYL. HEAD COVER [up to ...]
7 4845136 HEAD COVER GASKET L=1162 MM
8 98416134 WASHER [from 555940]
9 98418859 CYL. HEAD COVER [up to ...]
10 500380521 STUD M8X12X45
11 14282470 LOCK PLUG Ø28 MM
12 14282170 LOCK PLUG Ø20 MM
13 14282970 LOCK PLUG Ø45 MM
14 14323911 LOCK PLUG M10X1,25
15 14453981 O-RING Ø25,12 MM SP=1,78 MM
16 98417659 NUT [from 555940]
17 4802126 VALVE GUIDE
18 4802127 VALVE GUIDE +0,2
20 17094970 WASHER
21 16104111 HEXAGON NUT M8
22 4842403 ROCKER SHAFT ASSY
23 4601295 ROCKER BRACKET
24 4682937 BUSH
25 4848973 ROCKER ARM ASSY
26 4338920 ADJUSTING NUT
27 4699783 ROCKER ARM SCREW
28 4601296 ROCKER ARM SPRING
29 4838680 VALVE CAP
30 4780558 SPRING CAP TOP
31 4812347 ENGINE VALV.SPRING
32 4817424 SPRING CAP BOTTOM
33 1908408 INLET VALVE
34 1908410 EXHAUST VALVE
35 14196670 VALVE CONE Ø7,85 MM
36 16606424 HEXAGON BOLT M8X65 MM
37 4846851 SPIGOT SCREW
38 4639661 SUPPORT RING SP=1 MM
39 4570798 SUPPORT RING SP=0,7 MM
40 4570799 SUPPORT RING SP=0,5 MM
41 11066676 CIRCLIP Ø18 MM
42 17094914 WASHER 8x16
44 14328301 LOCK PLUG Ø12 MM
45 98458149 STUD [from 608189]
46 17037931 HEXAGON NUT M8X1,25
47 13516221 STUD M8X1,25
48 99452322 CYL. HEAD COVER [from ...]
49 500301351 HEAD COVER GASKET L=1178 MM [from 266175]
