8041i05.05

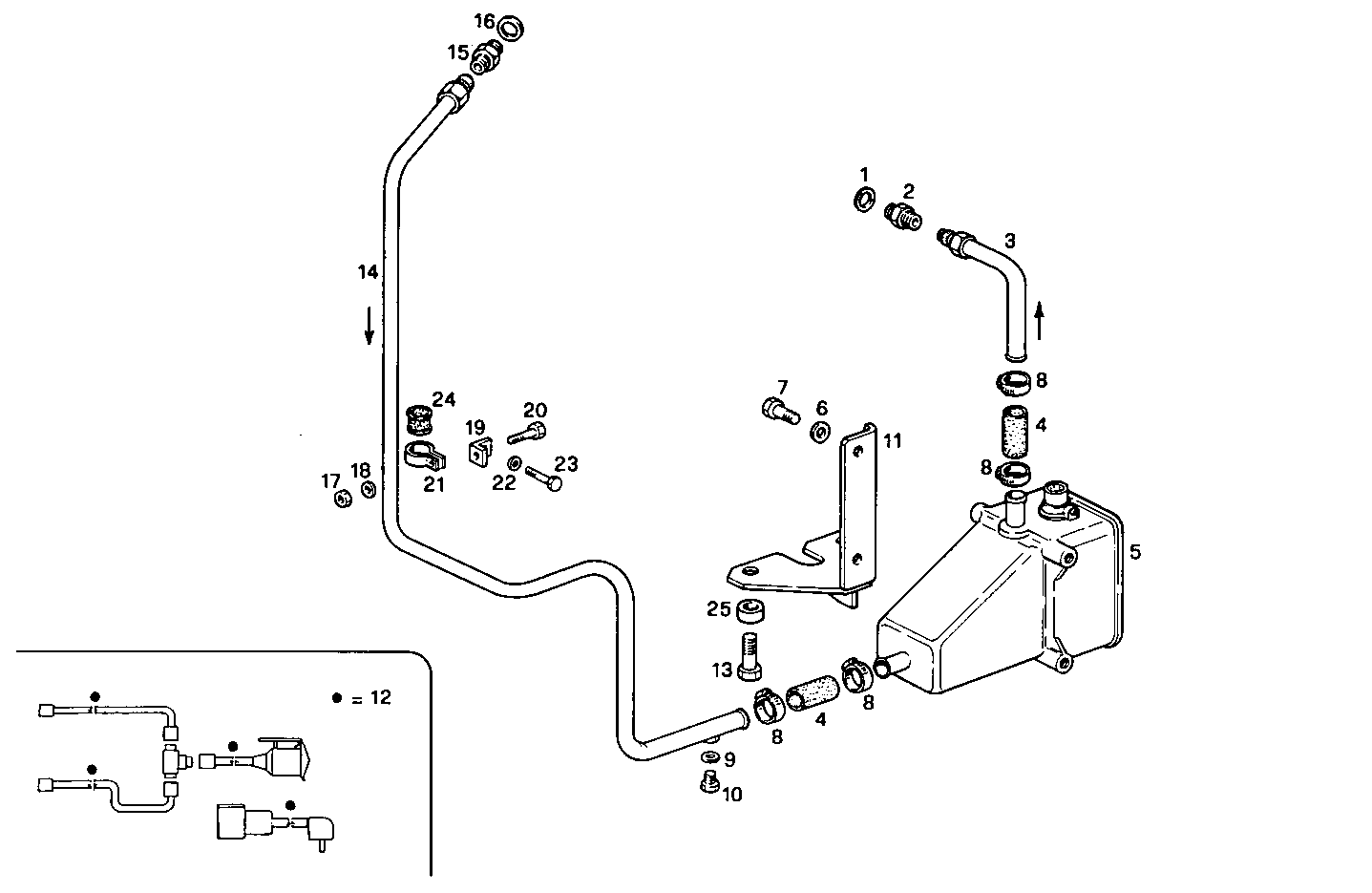

A20040034 WATER PREHEATER DEVICE - 220V

Iveco/FPT WATER PREHEATER DEVICE - 220V

Item Part number Description
1 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
2 4741602 THREADED UNION LEFT
3 8014775 WATER PIPE
4 8109346 RUBBER SLEEVE
5 8008375 HEATER 700W
6 17088474 WASHER Ø6X12 MM
7 10902121 HEXAGON BOLT M6X14 MM
8 17764592 CLIP Ø20/32 MM
9 4858605 WASHER Ø8X12 MM
10 10300911 PLUG M8
11 8015431 SUPPORT
12 8009376 WIRE/CABLE ASSY
13 11343821 HEXAGON BOLT M10X1,25X50 MM
14 8014774 WATER PIPE
15 8012712 PIPE SOCKET M22X1,5/M22X1,5
16 10263460 WASHER Ø22X28X1,5 MM
17 17037931 HEXAGON NUT M8X1,25
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 8102705 RETAINER
20 16605524 HEXAGON BOLT M8X20 MM
21 4763804 FASTENING BRACKET
22 17091074 WASHER Ø12X24X2,8 MM
23 16609824 HEXAGON BOLT M12X1,75X25 MM
24 4757122 RUBBER PAD
25 8108351 SPACING BAR
