8041i40.55

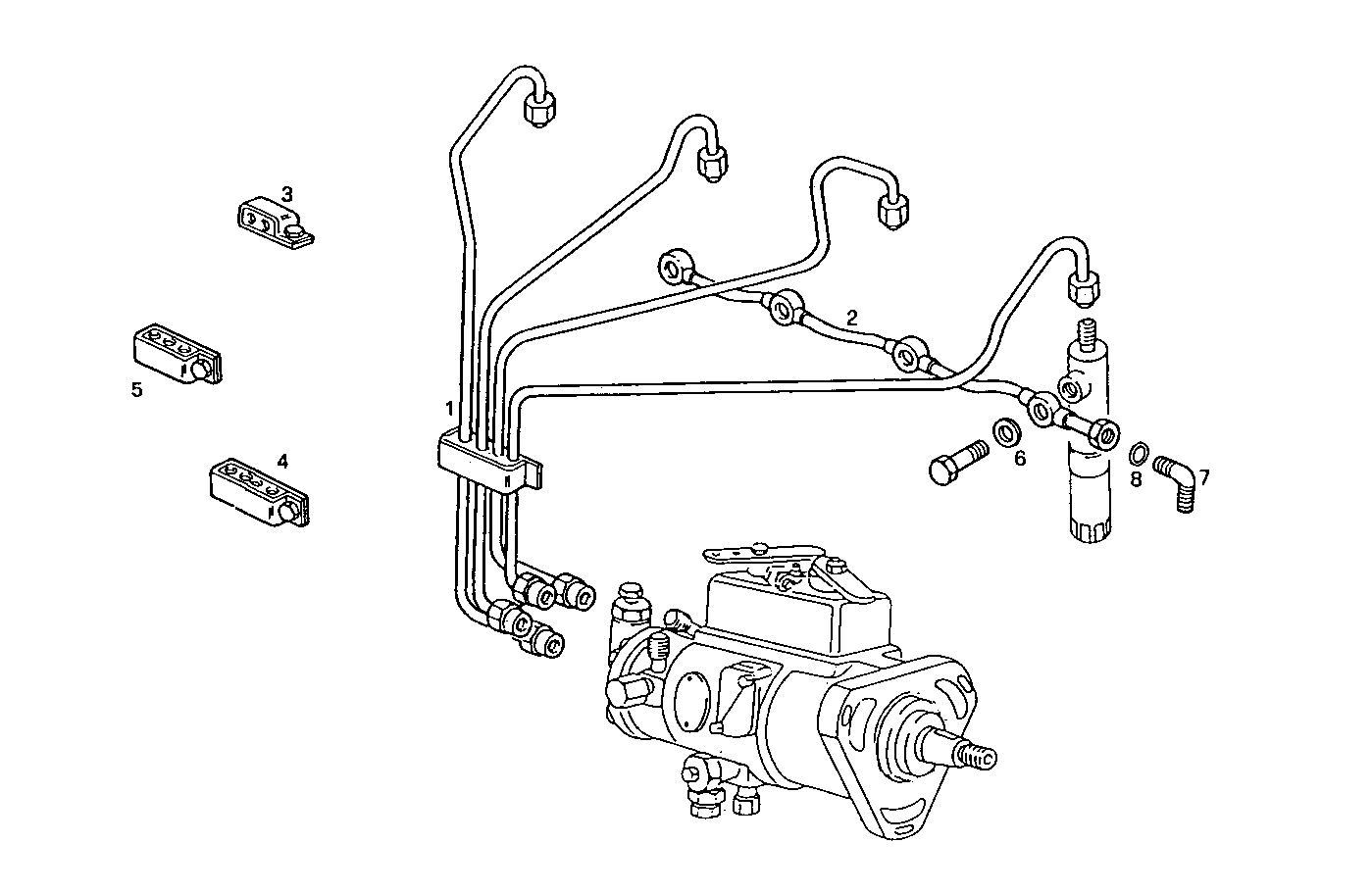

2020.109 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 4797522 INJECTION LINE SET
2 8029288 FUEL LINE D [from 01-09-02]
3 4806611 FASTENING BRACKET
4 4806612 FASTENING BRACKET
5 4806613 RETAINER
6 10297760 SEAL GASKET Ø6,2 MM
7 16503011 PIPE SOCKET
8 8024645 O-RING Ø4 MM
