8041i40.55

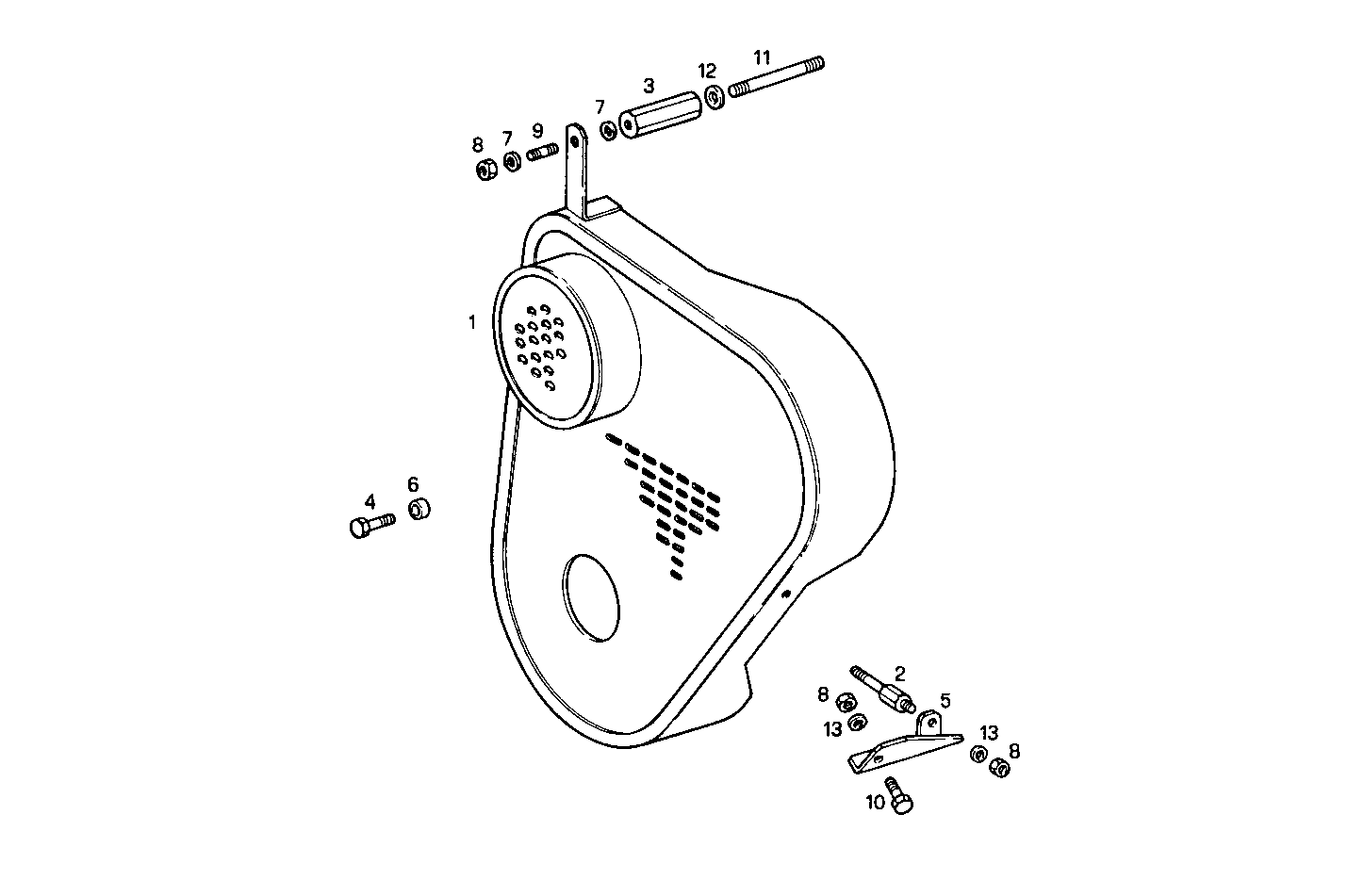

A48020039 GUARD - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8029501 | PROTECTION |
| 2 | 8029862 | SPACING BAR |
| 3 | 8031213 | SPACING BAR |
| 4 | 16604024 | HEXAGON BOLT M6X35 MM |
| 5 | 8107877 | RETAINER |
| 6 | 17814611 | SPACING BAR Ø6,5X10 MM |
| 7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 13516721 | STUD M8X12X18 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 13953221 | STUD M10X1,5X90 |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
