8041M08.01

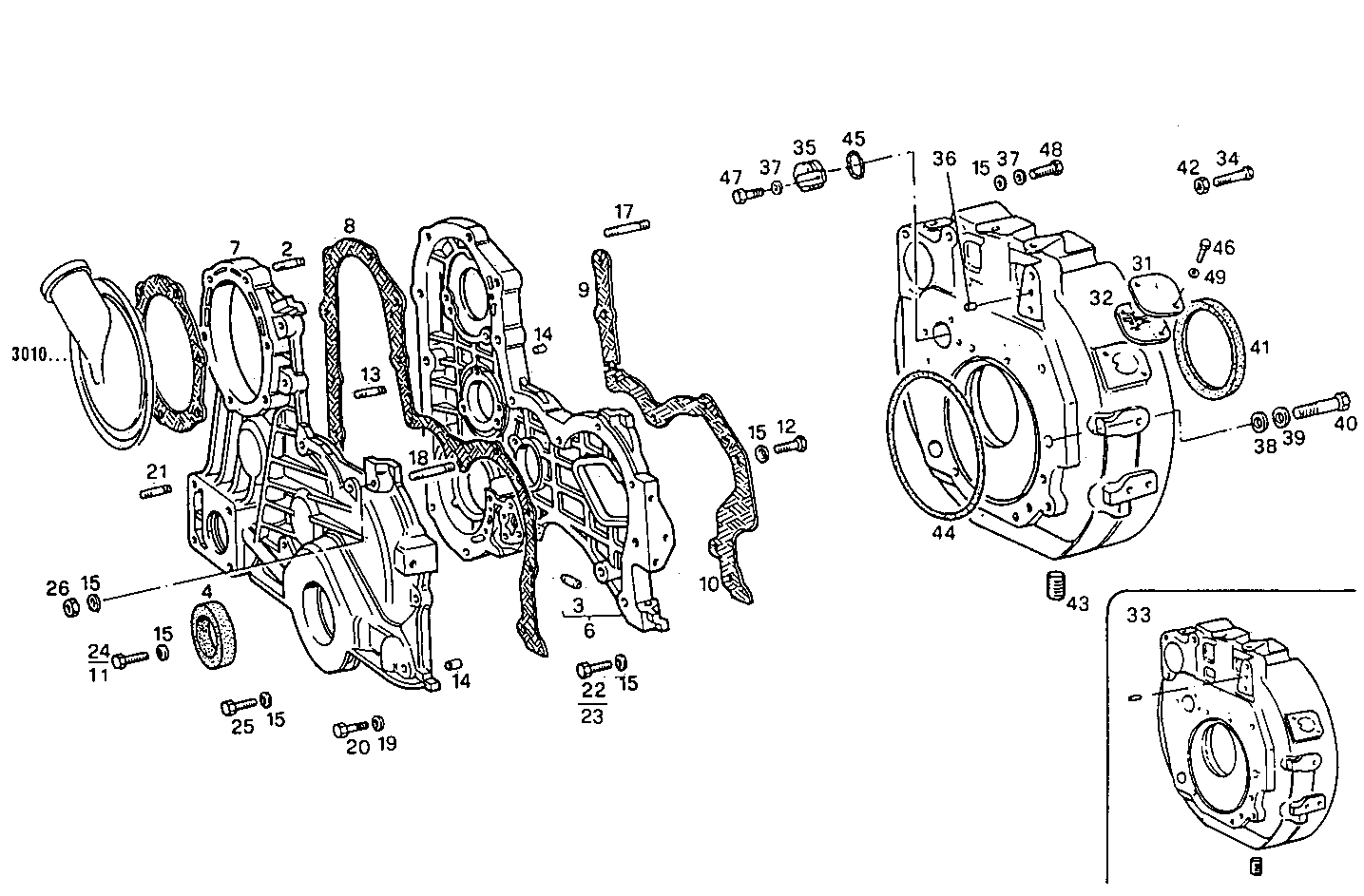

0430.010 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
2 500346886 STUD M8X1,25
3 4605220 OIL NOZZLE
4 99469265 SHAFT SEAL CORCOS
6 4786512 TIMINGGEAR HOUSIN ASSY
7 4769749 FRONT C.CASE COVER ASSY
8 98418138 FLAT ENGINE GASKET
9 98432469 FLAT ENGINE GASKET
10 98424046 FLAT ENGINE GASKET
11 16605824 HEXAGON BOLT M8X35 MM
12 16606124 HEXAGON BOLT M8X50 MM
13 13543621 STUD M8X16X30 MM
14 10839610 DOWEL PIN Ø8 MM
15 17094914 WASHER 8x16
17 13546921 STUD M8X12X22 MM
18 13543620 STUD M8X16X30
19 17095014 WASHER Ø10X18 MM
20 15888821 HEXAGON BOLT M10X1,25X70 MM
21 16745124 STUD M6X25 MM
22 16043521 SCREW M8X22
23 16605734 HEXAGON BOLT M8X30 MM
24 16044921 HEXAGON BOLT M8X1,25X85 MM
25 16606524 HEXAGON BOLT M8X70 MM
26 17037931 HEXAGON NUT M8X1,25
31 98417985 COVER
32 98417986 FLAT ENGINE GASKET
33 4784723 FLYWHEEL HOUSING ASSY
34 16612324 HEXAGON BOLT M14X35 MM
35 4718740 PLUG
36 17275510 DOWEL PIN Ø10 MM
37 17089574 WASHER Ø8X16 MM
38 17090174 SPRING WASHER Ø10X20 MM
39 11200171 SPRING WASHER Ø15 MM
40 11306921 SCREW M10X1,25X30
41 99457401 SHAFT SEAL CORCOS
42 17038721 NUT M14X2 [from ...]
43 16998011 PLUG M35X1,5
44 14483081 O-RING Ø5,33X196,2 MM
45 17289281 O-RING Ø34,5 MM SP=3,53 MM
47 16605424 SCREW M8X16 MM (8.8)
49 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
