8041M08.01

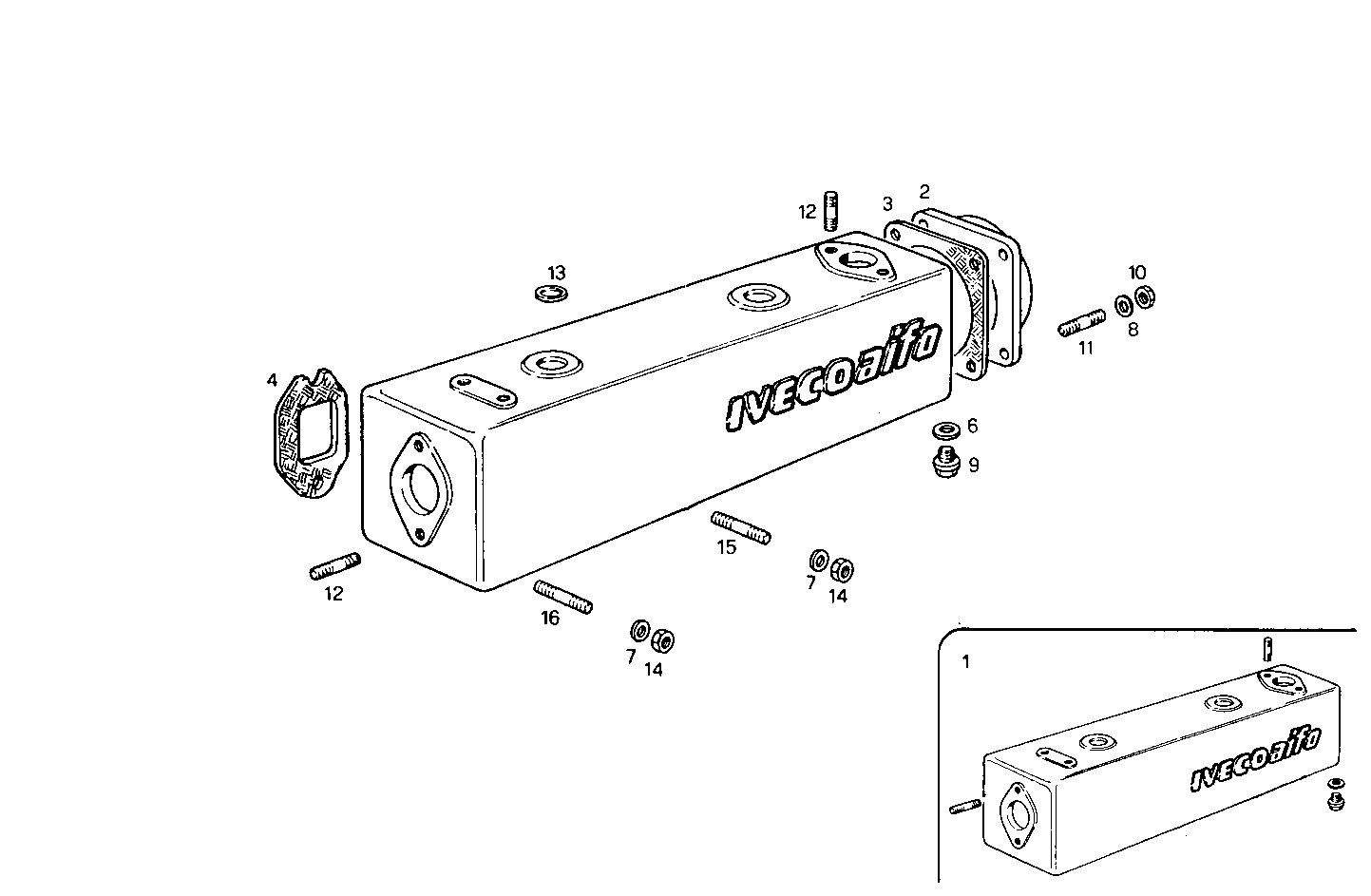

0760.021 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8107196 | COOLED EXHAUST MANIF. ASSY |
| 2 | 4919245 | FLANGE |
| 3 | 8009823 | GASKET |
| 4 | 98489690 | EXH. MANIFOLD GKT |
| 6 | 4858606 | GASKET Ø10X14X1 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 11903140 | PLUG M10X1,25 |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 16729324 | STUD M8X12X20 MM |
| 12 | 13516821 | STUD M8X12X20 MM |
| 13 | 16991170 | LOCK PLUG Ø36 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 16730434 | STUD M8X12X80 |
| 16 | 16729534 | STUD M8X30 MM |
