8041M08.01

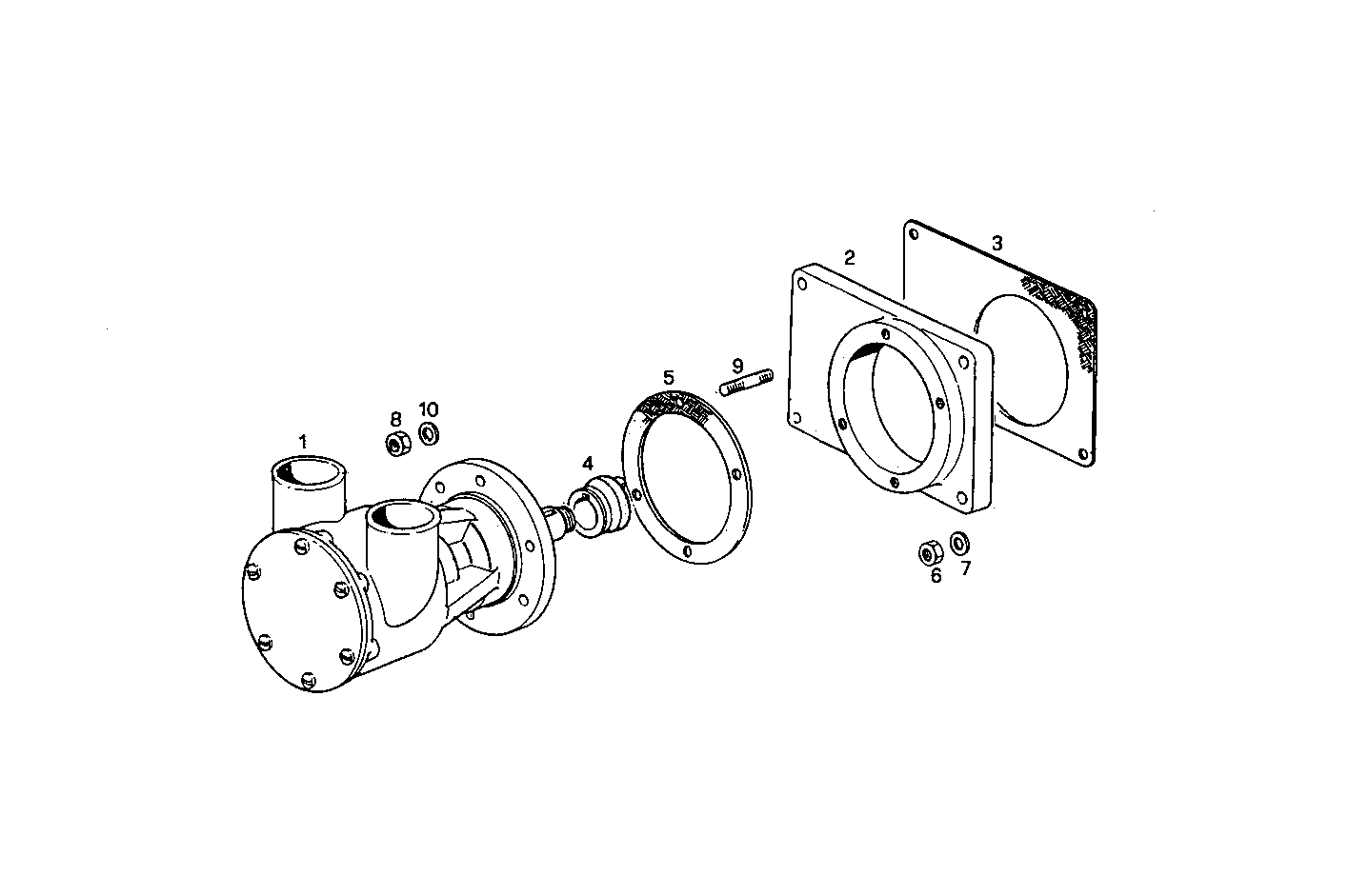

3380.001/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8107293 | SEA WATER PUMP ASSY JABSCO |
| 2 | 8107449 | SUPPORT |
| 3 | 4850986 | FLAT ENGINE GASKET |
| 4 | 4919289 | COUPLER |
| 5 | 8008922 | GASKET |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 17088474 | WASHER Ø6X12 MM |
| 9 | 16727624 | STUD M6X16 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
