8041M08.01

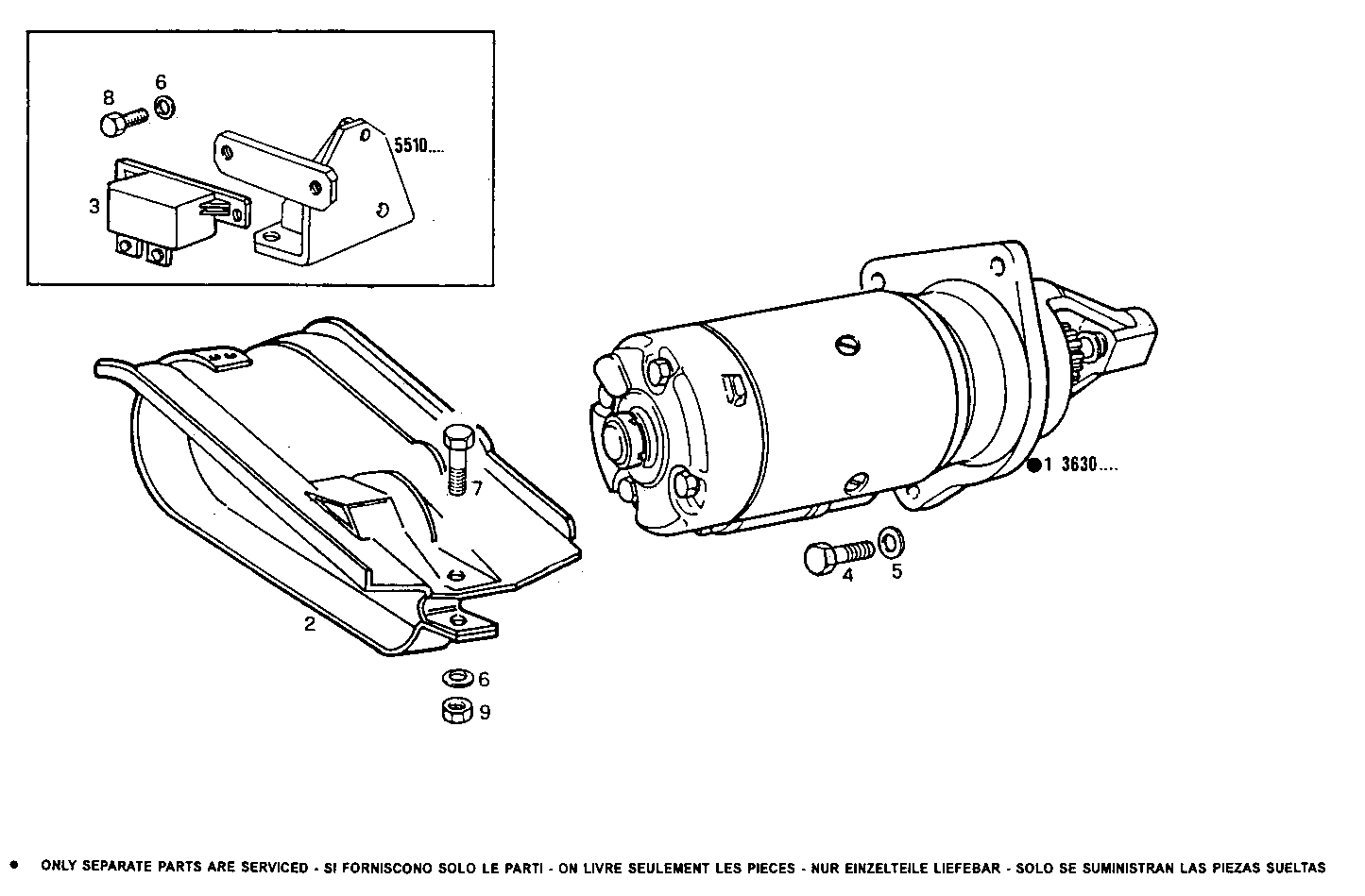

3600.005 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4728682 | STARTER MOTOR ASSY BOSCH - 12V |
| 2 | 4721863 | PROTECTION |
| 3 | 8108574 | RELAY STARTER |
| 4 | 11306921 | SCREW M10X1,25X30 |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16604124 | HEXAGON BOLT M6X40 MM |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 17037821 | HEXAGON NUT M6X1 |
