8041M08.01

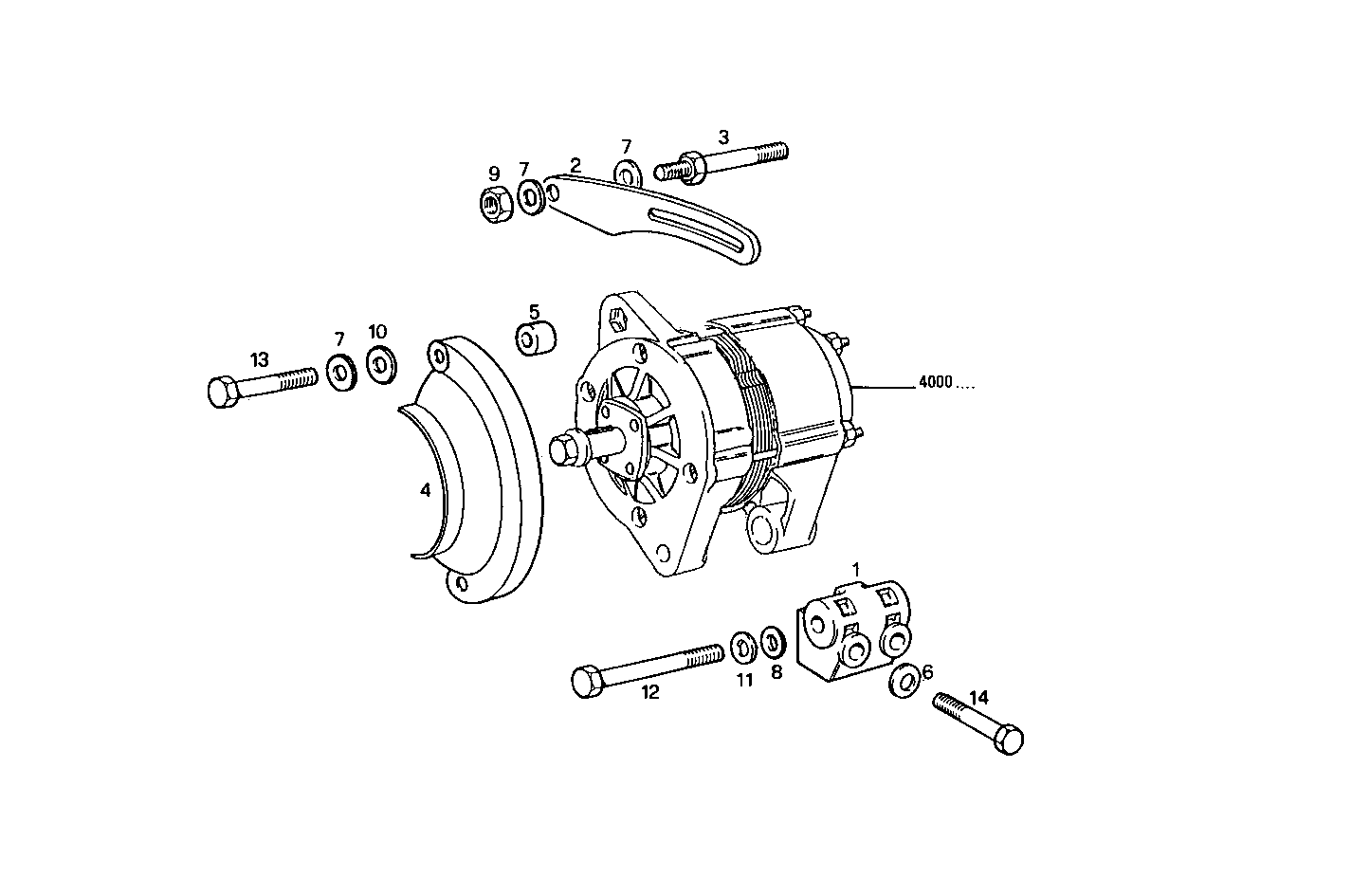

4010.001 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4600128 | GENERATOR SUPPORT |
| 2 | 4787485 | TURNBUCKLE |
| 3 | 4605854 | STUD |
| 4 | 4618825 | PROTECTION |
| 5 | 4619064 | SPACING BAR |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17091074 | WASHER Ø12X24X2,8 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 17793904 | WASHER Ø10X25 MM SP=1,5 |
| 11 | 17095304 | WASHER Ø12X24 MM |
| 12 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 13 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 14 | 16606124 | HEXAGON BOLT M8X50 MM |
