8041M08.01

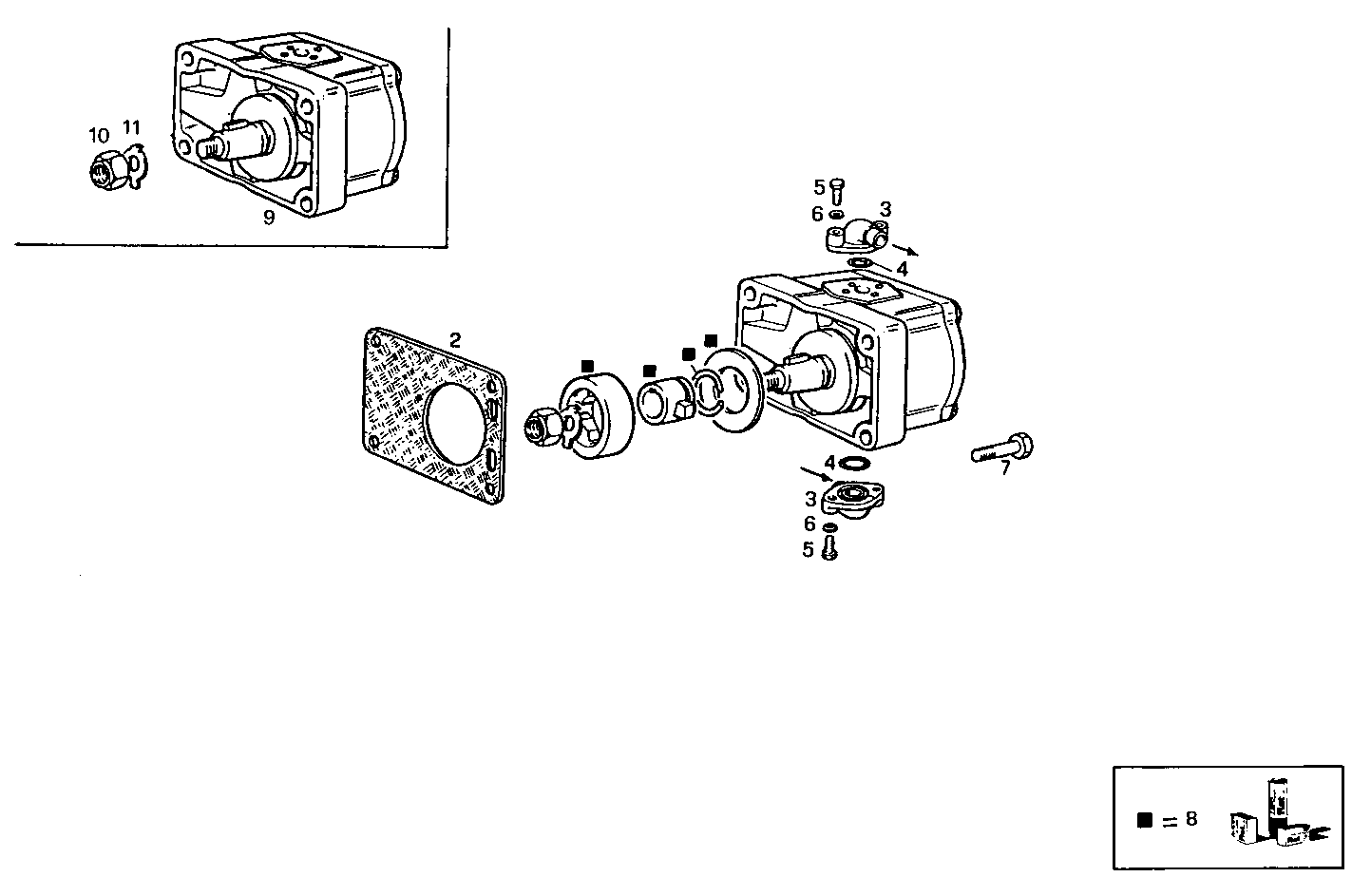

A09010001 REAR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 5130127 | LUBE OIL PUMP ASSY PLESSEY A18 |
| 2 | 4850986 | FLAT ENGINE GASKET |
| 3 | 4670953 | PIPE SOCKET |
| 4 | 14457280 | O-RING Ø2,62X15,54 MM |
| 5 | 14305521 | SCREW M6X30 |
| 6 | 11197779 | SPRING WASHER Ø6X12 MM |
| 7 | 10902821 | HEXAGON BOLT M6X30 MM |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 9 | 5179732 | HYDRAULIC PUMP ASSY BOSCH |
| 10 | 8273919 | NUT BOSCH |
| 11 | 8273920 | WASHER BOSCH |
