8041M08.01

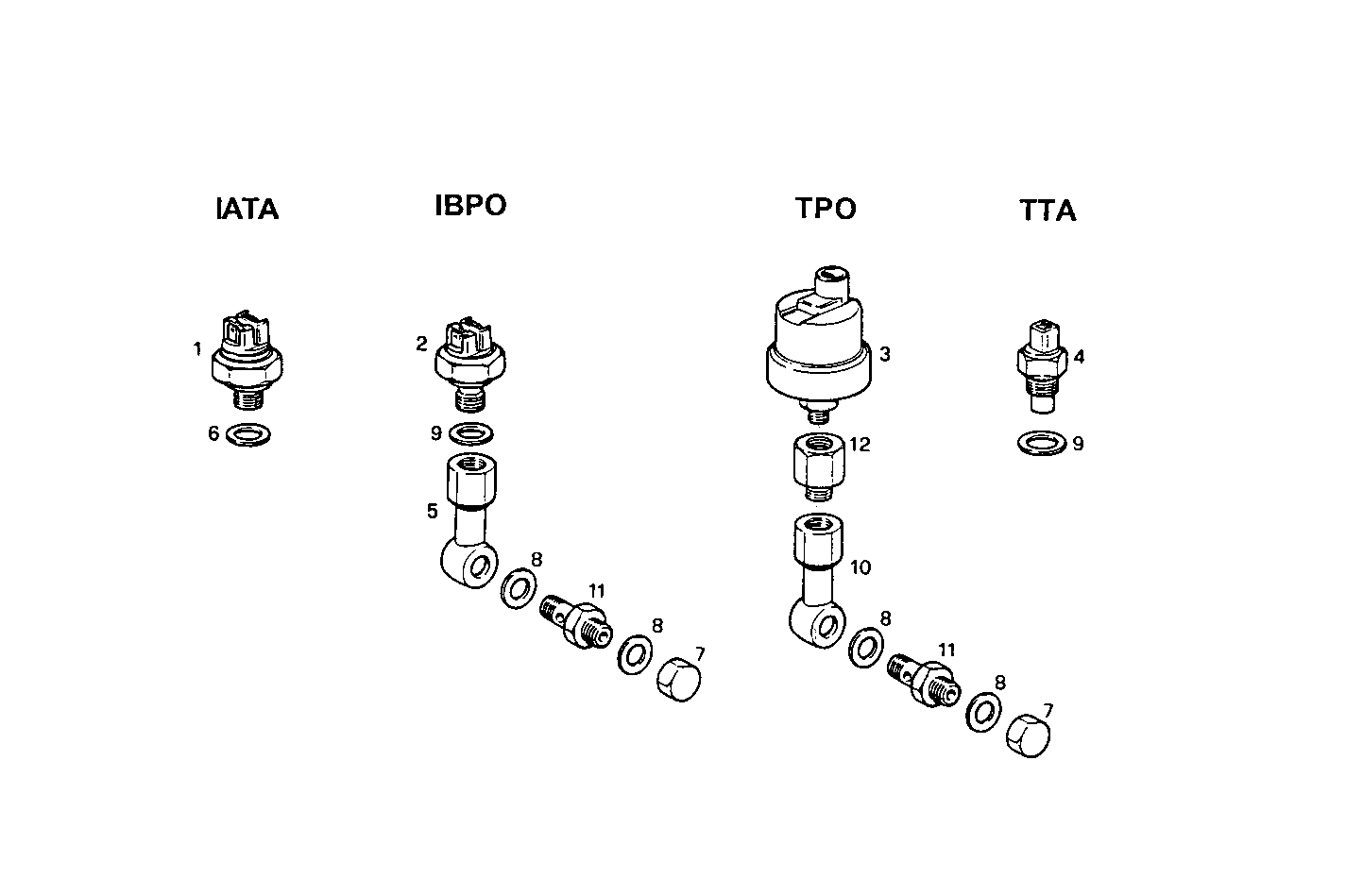

A38550051 SENDER UNITS FOR INSTRUMENTS - 12/24V - VEGLIA
| Item | Part number | Description |
|---|---|---|
| 1 | 8019334 | TRANSMITTER IATA |
| 2 | 8020872 | TRANSMITTER IBPO |
| 3 | 8008031 | TRANSMITTER TPO |
| 4 | 8008030 | TRANSMITTER TTA |
| 5 | 4928011 | PIPE SOCKET |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 11902117 | PLUG M10X1,25 |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 10 | 4927546 | PIPE SOCKET |
| 11 | 4607792 | SCREW CONNECTOR |
| 12 | 8111331 | PIPE SOCKET |
