8041M08.01

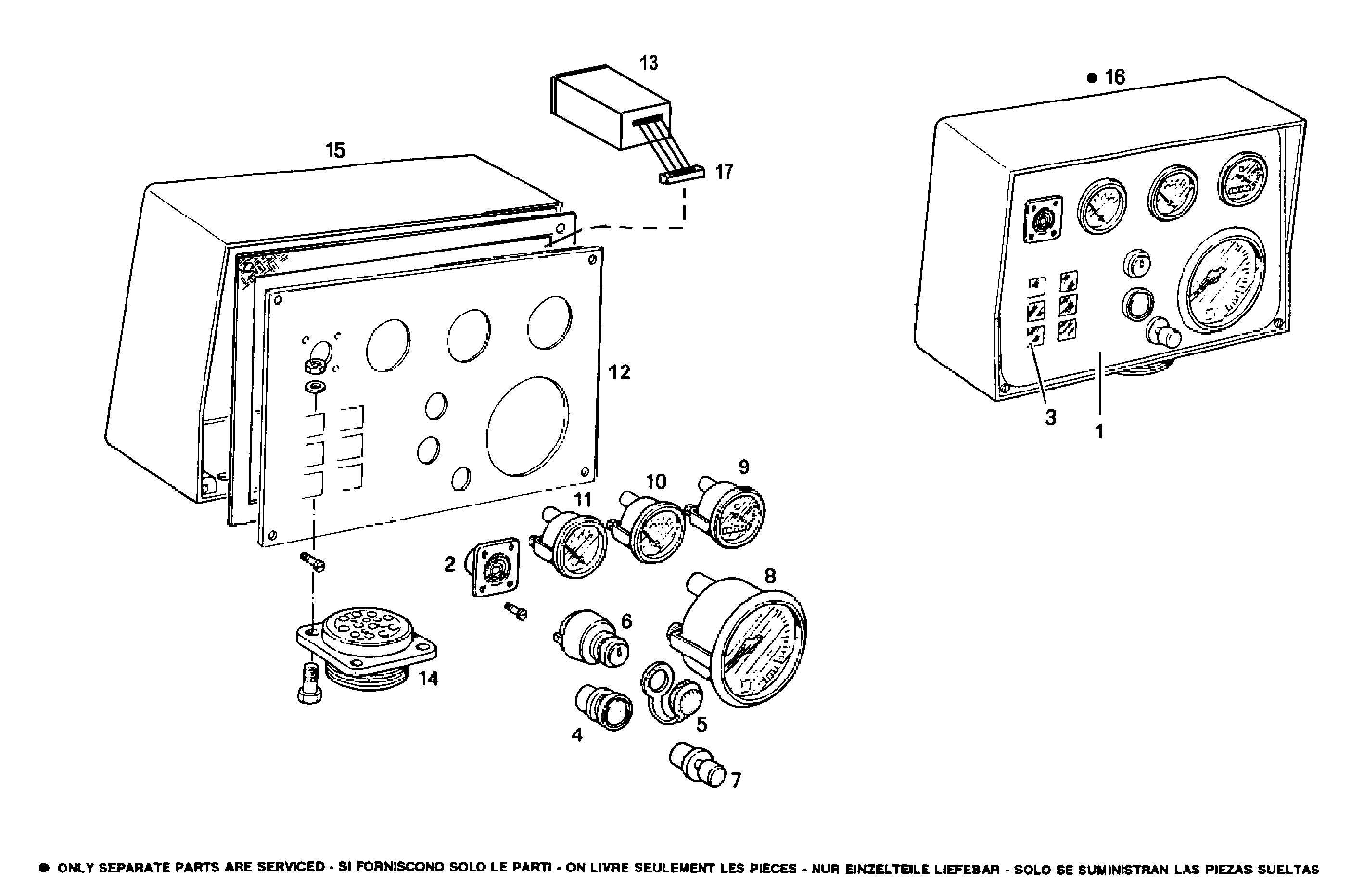

A38700903 DASH PANEL - 12V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8025310 | INSTRUMENTS BOARD ASSY |
| 2 | 8110230 | ACOUSTIC HORN |
| 3 | 8110229 | WARNING LIGHT |
| 4 | 8109404 | RELAY |
| 5 | 8110226 | CAP |
| 6 | 8103708 | SWITCH |
| 7 | 8025024 | PUSH BUTTON STOP |
| 8 | 8030617 | REVOLUTION COUNTER |
| 9 | 8030620 | VOLTMETER |
| 10 | 8030618 | THERMOMETER |
| 11 | 8030619 | PRESSURE GAUGE 10 BAR |
| 12 | 8110225 | PLATE |
| 13 | 8110228 | ELECTRONIC CARD |
| 14 | 8105629 | CONNECTION |
| 15 | 8108461 | SUPPORT |
| 16 | 8110215 | INSTRUMENTS BOARD ASSY |
| 17 | 8094761 | WIRE/CABLE |
