8041M08.01

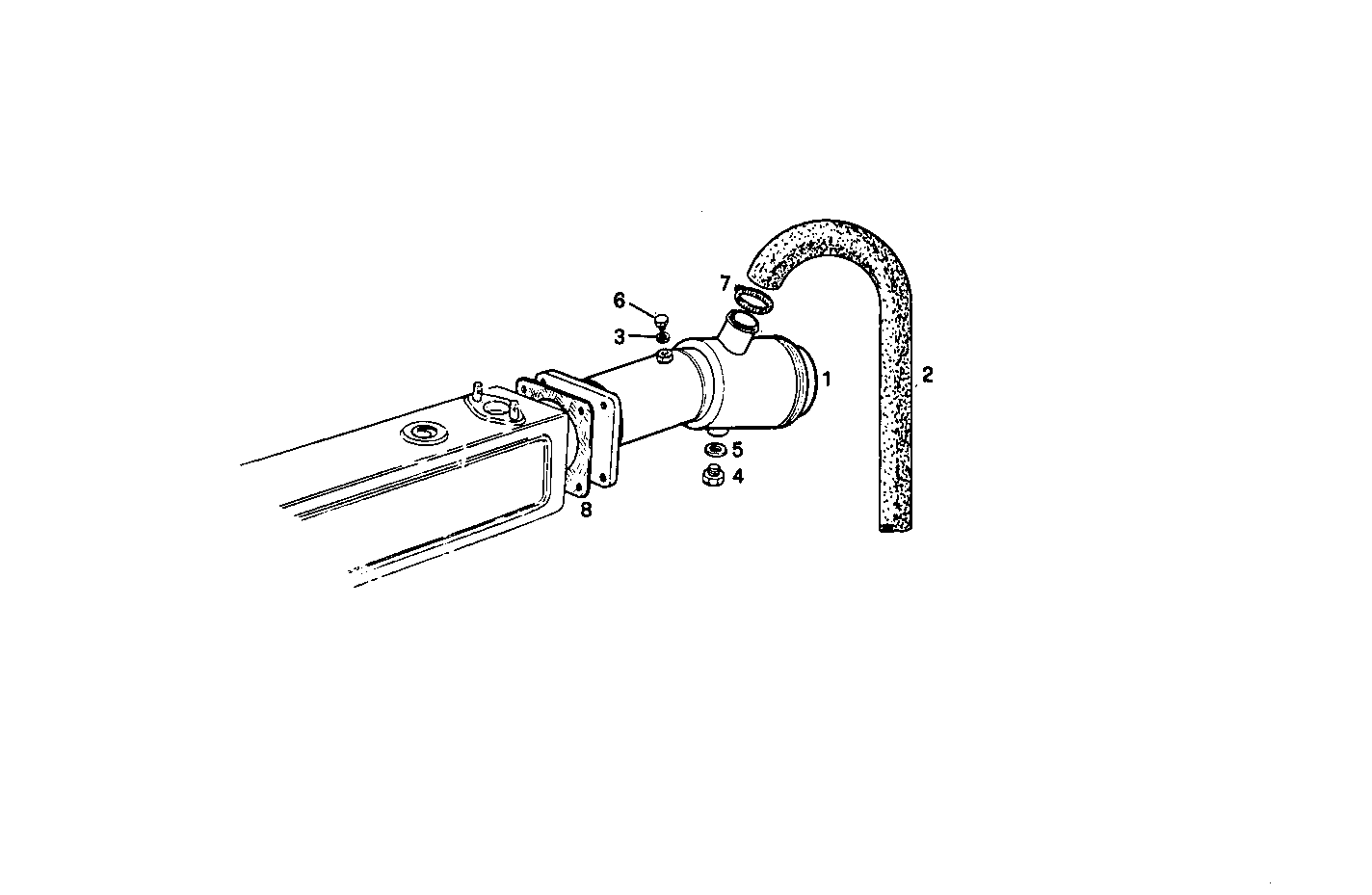

A40050003 GAS-WATER MIXER WITH STERN OUTLET - without marine gear
| Item | Part number | Description |
|---|---|---|
| 1 | 4932952 | EXHAUST COOL. ELBOW |
| 2 | 4929958 | RUBBER SLEEVE |
| 3 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 4 | 10300840 | LOCK PLUG M18X1,5 |
| 5 | 10263160 | SEAL GASKET Ø18X24 MM SP=1 MM |
| 6 | 10300511 | LOCK PLUG M12X1,5 |
| 7 | 17764993 | CLIP Ø50/70 MM |
| 8 | 4918265 | GASKET |
