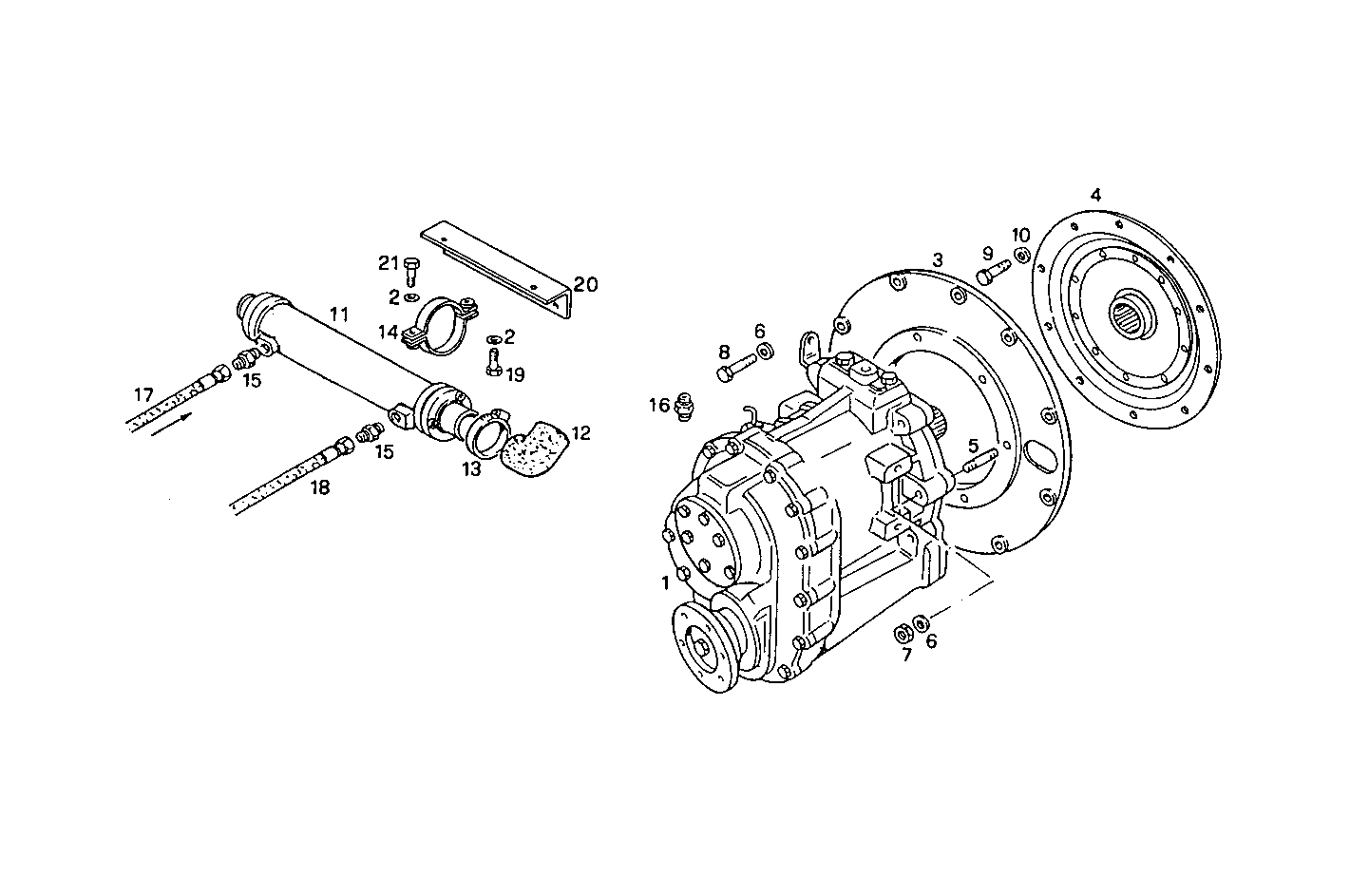

| Item |
Part number |
Description |
|
1 |
8015293 |
MARINE GEAR 3,118:1 |
|
2 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
3 |
4934782 |
COUPLING BELL |
|
4 |
8005350 |
FLEXPLATE |
|
5 |
13547521 |
STUD |
|
6 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
7 |
12164711 |
HEXAGON NUT M10X1,25 |
|
8 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
9 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
10 |
10571879 |
WASHER |
|
11 |
8016304 |
OIL/WATER HEAT EXCHANGER ASSY |
|
12 |
8016576 |
RUBBER SLEEVE |
|
13 |
17764793 |
CLIP Ø32/50 MM |
|
14 |
5116798 |
CLIP ASSY [from 06-93] |
|
15 |
8110073 |
PIPE SOCKET [from 07-94] |
|
16 |
4935465 |
PIPE SOCKET |
|
17 |
8100724 |
HOSE |
|
18 |
4935778 |
OIL HOSE |
|
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
20 |
8016558 |
RETAINER [from 07-93] |
|
21 |
16605734 |
HEXAGON BOLT M8X30 MM |
