8041M08.01

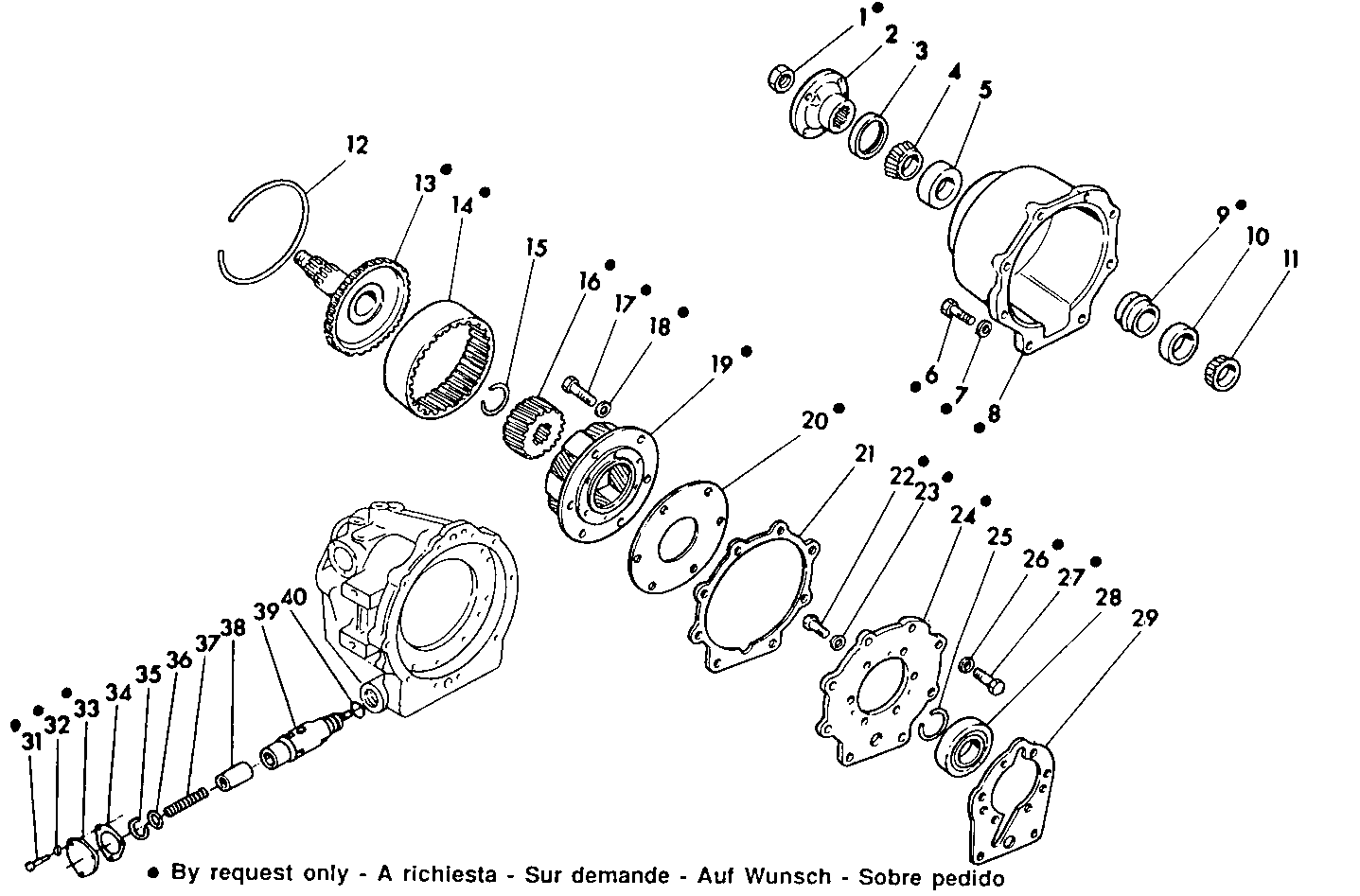

T5101003/01 MARINE GEAR - (components)
| Item | Part number | Description |
|---|---|---|
| 2 | 8090748 | FLANGE |
| 3 | 8090663 | WASHER |
| 4 | 8090656 | DRIVE BEARING |
| 5 | 8090428 | DRIVE BEARING |
| 10 | 8090657 | DRIVE BEARING |
| 11 | 8090658 | DRIVE BEARING |
| 12 | 8090659 | CIRCLIP 2,91:1 |
| 15 | 8090670 | CIRCLIP |
| 21 | 8090660 | GASKET |
| 25 | 8090676 | CIRCLIP |
| 28 | 8090677 | DRIVE BEARING |
| 29 | 8090662 | GASKET |
| 34 | 8090414 | GASKET |
| 35 | 8090429 | CIRCLIP |
| 36 | 8091794 | SUPPORT RING |
| 37 | 8091795 | SPRING |
| 38 | 8091796 | VALVE |
| 39 | 8091797 | VALVE |
| 40 | 8090430 | O-RING |
