8041M08.01

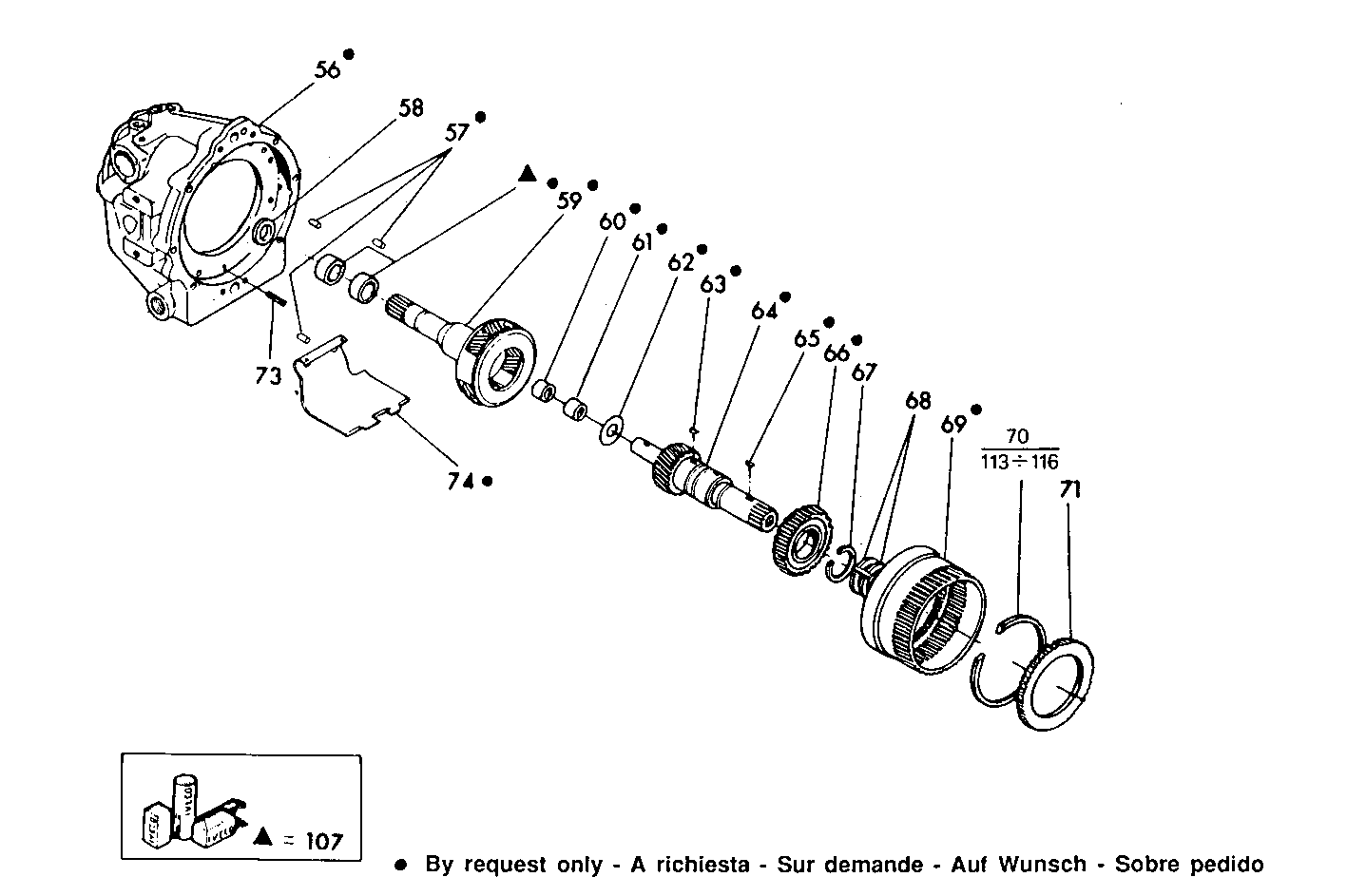

T5102005/03 MARINE GEAR - (components)
| Item | Part number | Description |
|---|---|---|
| 58 | 8090668 | O-RING |
| 67 | 8090432 | CIRCLIP |
| 68 | 8090415 | WASHER |
| 70 | 8090433 | CIRCLIP 0,052 inch |
| 71 | 8090434 | CLUTCH DISC |
| 72 | 8090686 | CIRCLIP 0,052 inch |
| 73 | 8090416 | SPRING |
| 107 | 8090431 | KIT-GEAR BOX |
| 113 | 8090678 | CIRCLIP 0,076 inch |
| 114 | 8090679 | CIRCLIP 0,098 inch |
| 115 | 8090681 | CIRCLIP 0,064 inch |
| 116 | 8090684 | CIRCLIP 0,086 inch |
