8041M08.01

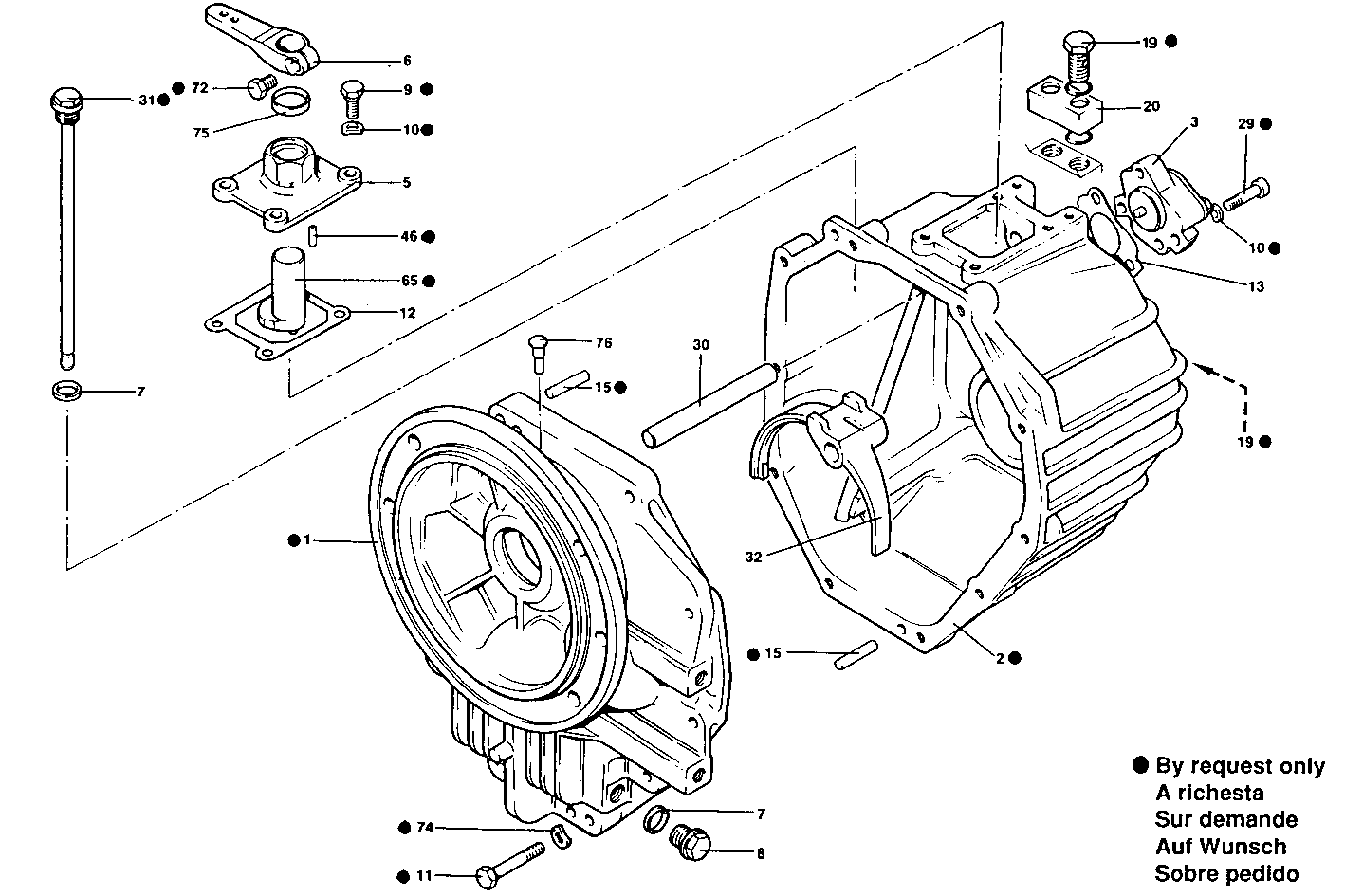

T5134000/01 MARINE GEAR - (components)
| Item | Part number | Description |
|---|---|---|
| 3 | 8090041 | LUBE OIL PUMP ASSY |
| 5 | 8090043 | COVER |
| 6 | 8090044 | LEVER |
| 7 | 8090045 | GASKET |
| 8 | 8090046 | PLUG |
| 12 | 8090047 | GASKET |
| 13 | 8090048 | GASKET |
| 20 | 8090050 | CHOCK |
| 30 | 8090057 | TIE ROD |
| 32 | 8090059 | CLEVIS |
| 75 | 8090110 | O-RING |
| 76 | 8090111 | BREATHER |
