8041M08.21

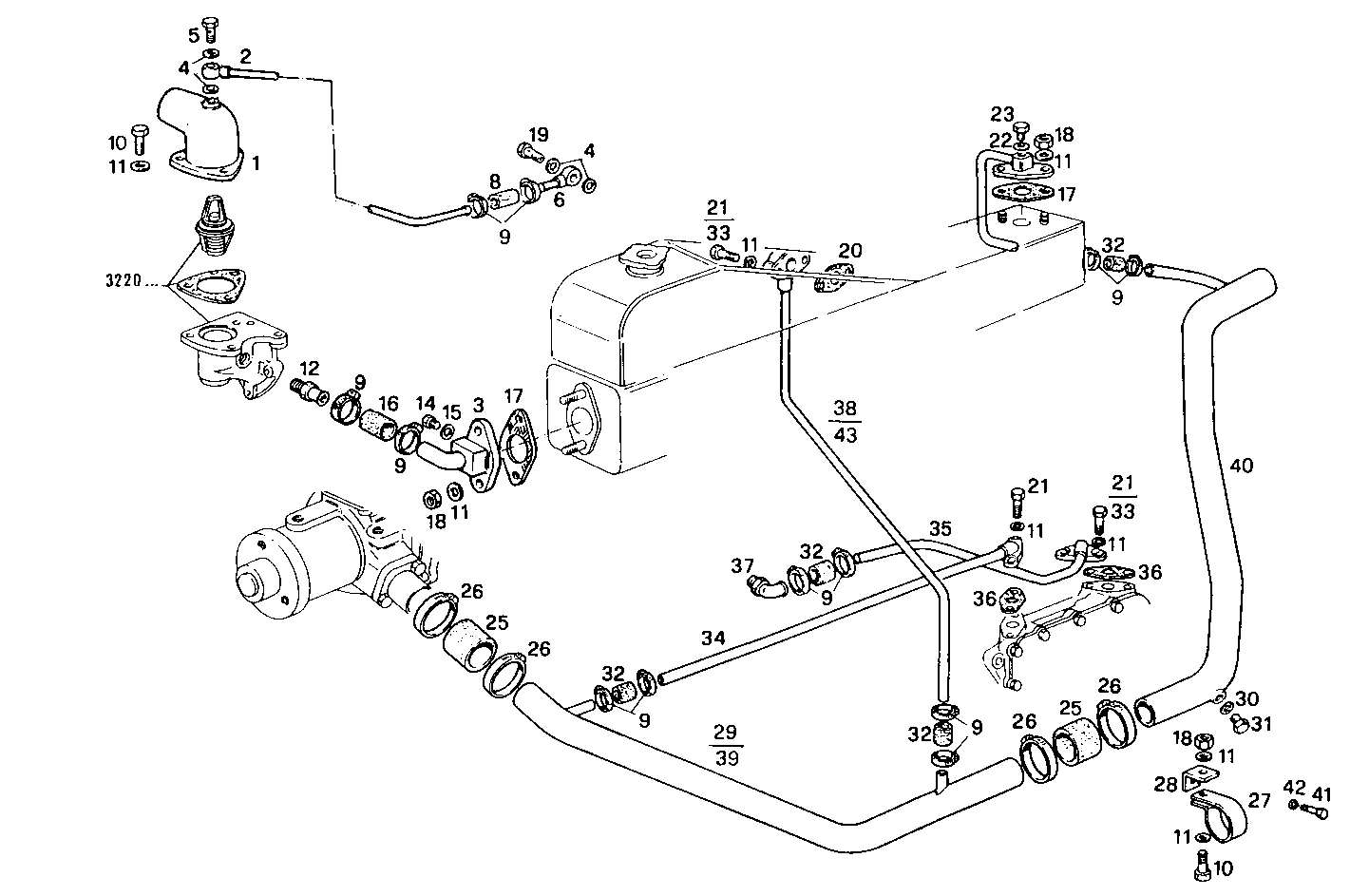

3210.012 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8107202 WATER PIPE
2 8110256 WATER PIPE
3 8107731 WATER PIPE
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 4864082 BANJO BOLT M12X1,5X25 MM
6 98434018 THREADED UNION
8 4927825 WATER HOSE
9 17764593 CLIP Ø20/32 MM
10 16605624 HEXAGON BOLT M8X25 MM (8.8)
11 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
12 4760312 THREADED UNION
14 16992340 THREADED PLUG M14X1,5
15 4858608 SEAL GASKET dia.14x19,5x1,5
16 98418717 WATER HOSE Ø18 MM
17 8009640 GASKET
18 17037931 HEXAGON NUT M8X1,25
19 8009696 SCREW CONNECTOR M12X1,5X25
20 4835970 GASKET
21 16605824 HEXAGON BOLT M8X35 MM
22 4858609 WASHER Ø16X22 MM SP=1,5 MM
23 16992440 THREADED PLUG M16X1,5
24 8107733 WATER PIPE
25 17742887 RUBBER SLEEVE
26 17764793 CLIP Ø32/50 MM
27 4936741 CLIP
28 8108979 RETAINER
29 8107205 WATER PIPE [up to 05-95]
30 10284460 SEAL GASKET Ø10X16 MM
31 16992140 PLUG M10X1
32 17737687 WATER HOSE
33 16605524 HEXAGON BOLT M8X20 MM
34 4788181 WATER PIPE
35 4760316 WATER PIPE
36 4853970 FLAT ENGINE GASKET
37 98418647 PIPE SOCKET
38 8110292 WATER PIPE [up to 05-95]
39 8006084 WATER PIPE [from 05-95]
40 8006086 WATER PIPE [from 05-95]
41 16609824 HEXAGON BOLT M12X1,75X25 MM
42 17091074 WASHER Ø12X24X2,8 MM
43 8006085 WATER PIPE [from 05-95]
