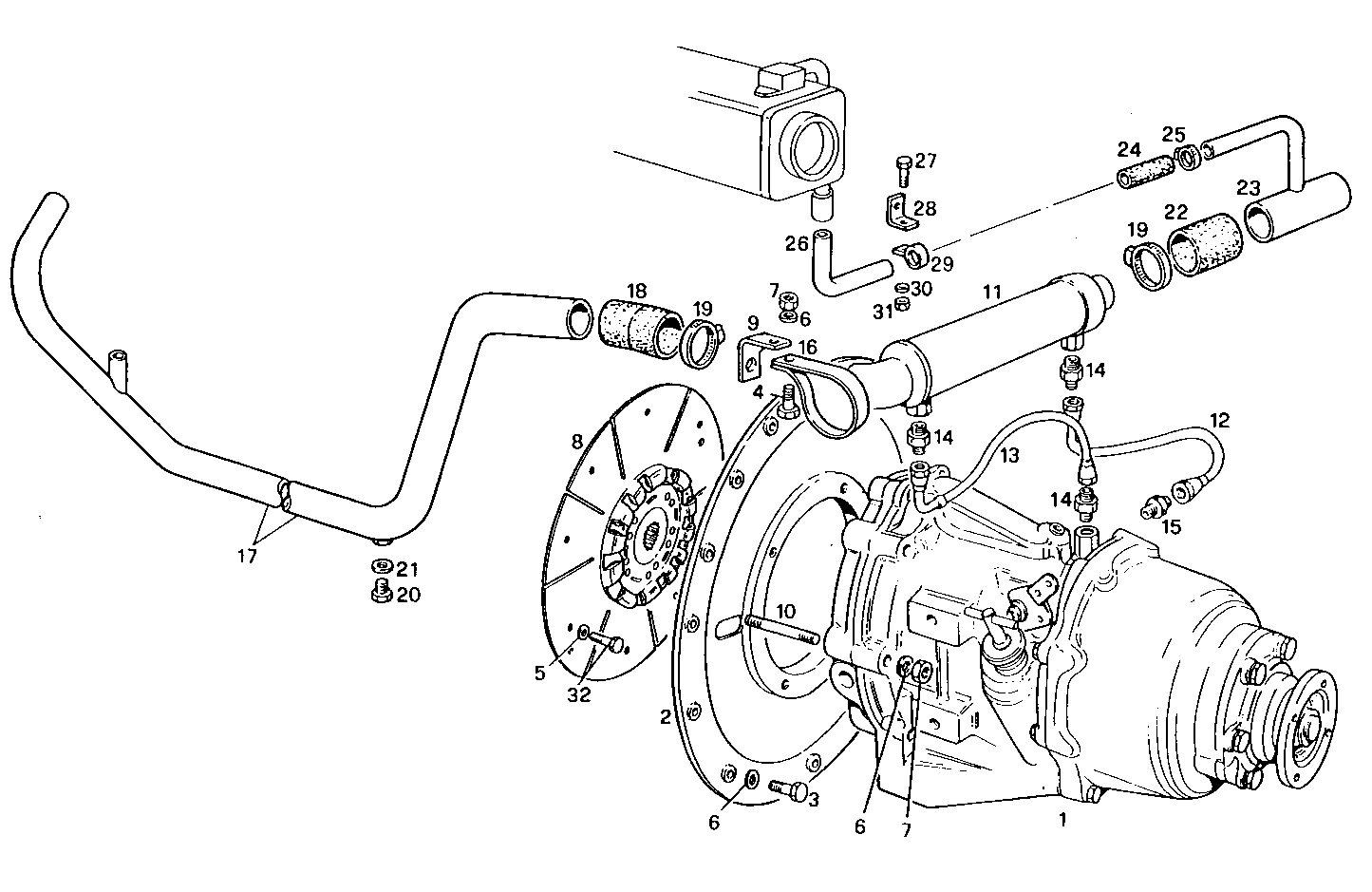

| Item |
Part number |
Description |
|
1 |
4917640 |
MARINE GEAR 2,91:1 |
|
2 |
4934782 |
COUPLING BELL |
|
3 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
4 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
5 |
10571879 |
WASHER |
|
6 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
7 |
12164711 |
HEXAGON NUT M10X1,25 |
|
8 |
8005343 |
FLEXPLATE |
|
9 |
4936740 |
SUPPORT |
|
10 |
13547521 |
STUD |
|
11 |
4919188 |
MARINE GEAR OIL HEAT EXCH ASSY |
|
12 |
4935780 |
OIL HOSE |
|
13 |
4935778 |
OIL HOSE |
|
14 |
4935465 |
PIPE SOCKET |
|
15 |
8101161 |
PIPE SOCKET |
|
16 |
8100667 |
CLIP |
|
17 |
8107821 |
WATER PIPE |
|
18 |
10147087 |
RUBBER SLEEVE |
|
19 |
12177090 |
CLIP Ø32-52 MM |
|
20 |
11903040 |
LOCK PLUG M10X1 |
|
21 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
22 |
17742687 |
RUBBER SLEEVE |
|
23 |
8107188 |
WATER PIPE |
|
24 |
4616762 |
RUBBER SLEEVE |
|
25 |
17764592 |
CLIP Ø20/32 MM |
|
26 |
8107189 |
WATER PIPE |
|
27 |
16043124 |
SCREW M8X14 MM |
|
28 |
8109067 |
RETAINER |
|
29 |
4936277 |
CLIP [up to 03-97] |
|
30 |
11194079 |
SPRING WASHER Ø8X16 MM SP=1,9 MM |
|
31 |
17037931 |
HEXAGON NUT M8X1,25 |
|
32 |
15970521 |
HEXAGON BOLT M10X20 MM |
