8041M08.40

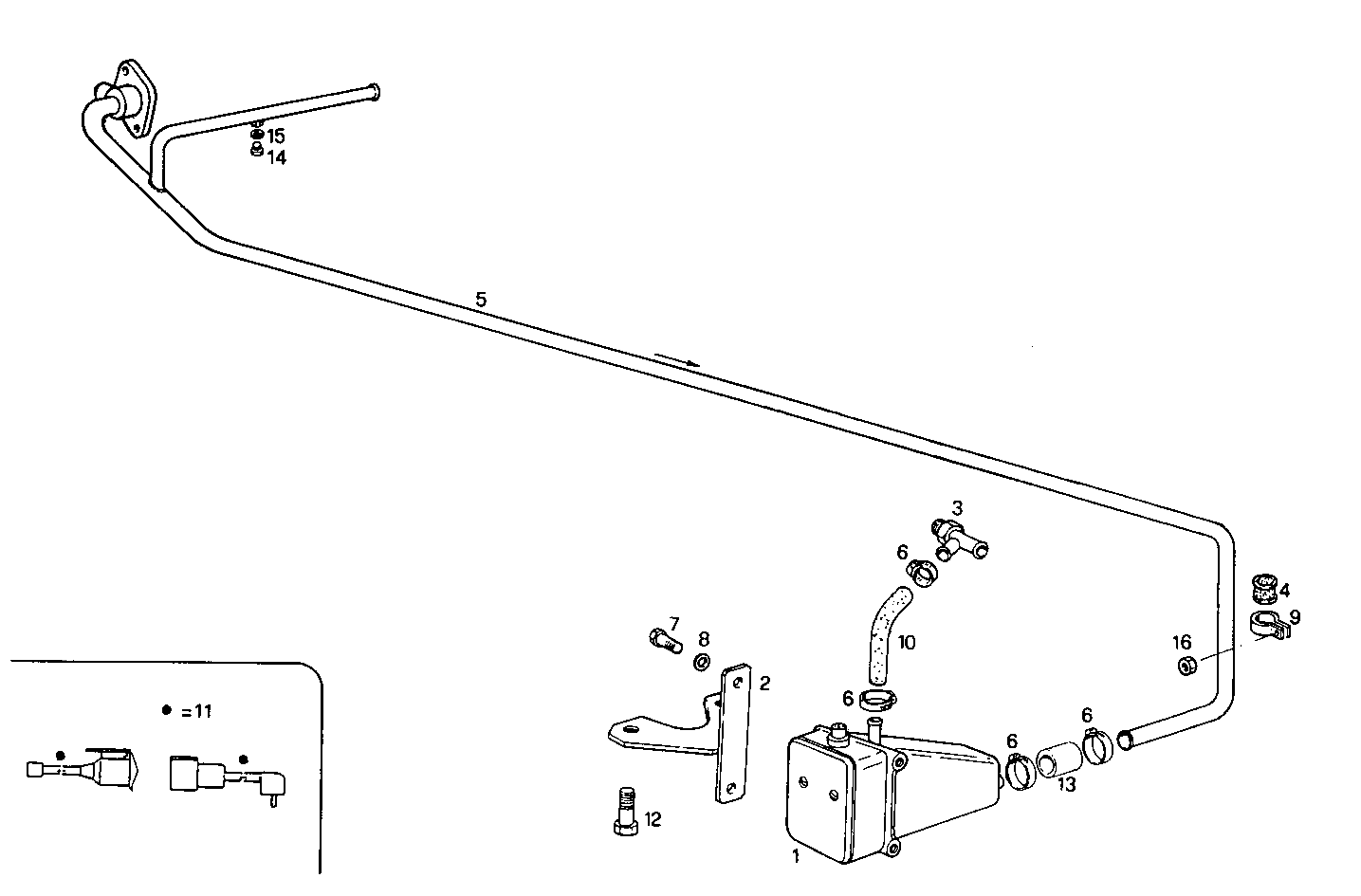

A20040027 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8008375 | HEATER 700W |
| 2 | 8009730 | SUPPORT |
| 3 | 8010794 | PIPE SOCKET [from ...] |
| 4 | 4757122 | RUBBER PAD |
| 5 | 8013107 | WATER PIPE |
| 6 | 18088392 | CLIP Ø16/25 MM |
| 7 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 4763804 | FASTENING BRACKET |
| 10 | 8010092 | HOSE |
| 11 | 8009376 | WIRE/CABLE ASSY |
| 12 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 13 | 8109346 | RUBBER SLEEVE |
| 14 | 10300911 | PLUG M8 |
| 15 | 4858605 | WASHER Ø8X12 MM |
| 16 | 17038221 | HEXAGON NUT M10 |
