8041M08.40

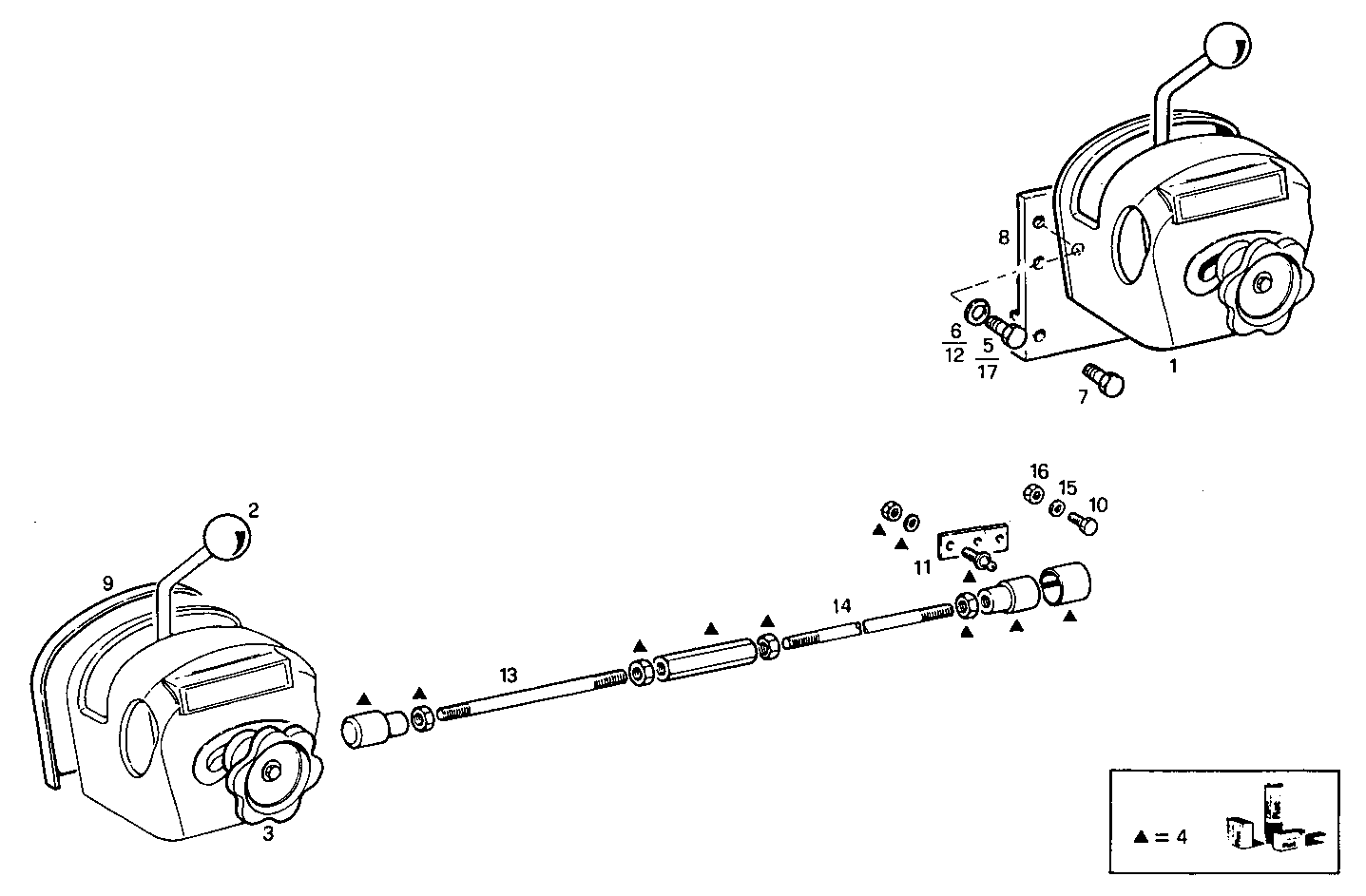

A24020021 HAND ACCELERATOR - assembled
| Item | Part number | Description |
|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR ASSY |
| 2 | 4927041 | HANDLE BALL |
| 3 | 4927042 | HANDWHEEL |
| 4 | 8090372 | KIT |
| 5 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 6 | 11198371 | SPRING WASHER �10X20 MM |
| 7 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 8108769 | SUPPORT [up to 02-95] |
| 9 | 4724115 | COVER |
| 10 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 11 | 8113693 | RETAINER |
| 12 | 17090174 | SPRING WASHER �10X20 MM |
| 13 | 8823236 | TIE ROD LEFT |
| 14 | 8823237 | TIE ROD |
| 15 | 17088474 | WASHER �6X12 MM |
| 16 | 17037821 | HEXAGON NUT M6X1 |
| 17 | 16607624 | SCREW M10X25 |
