8041M08.40

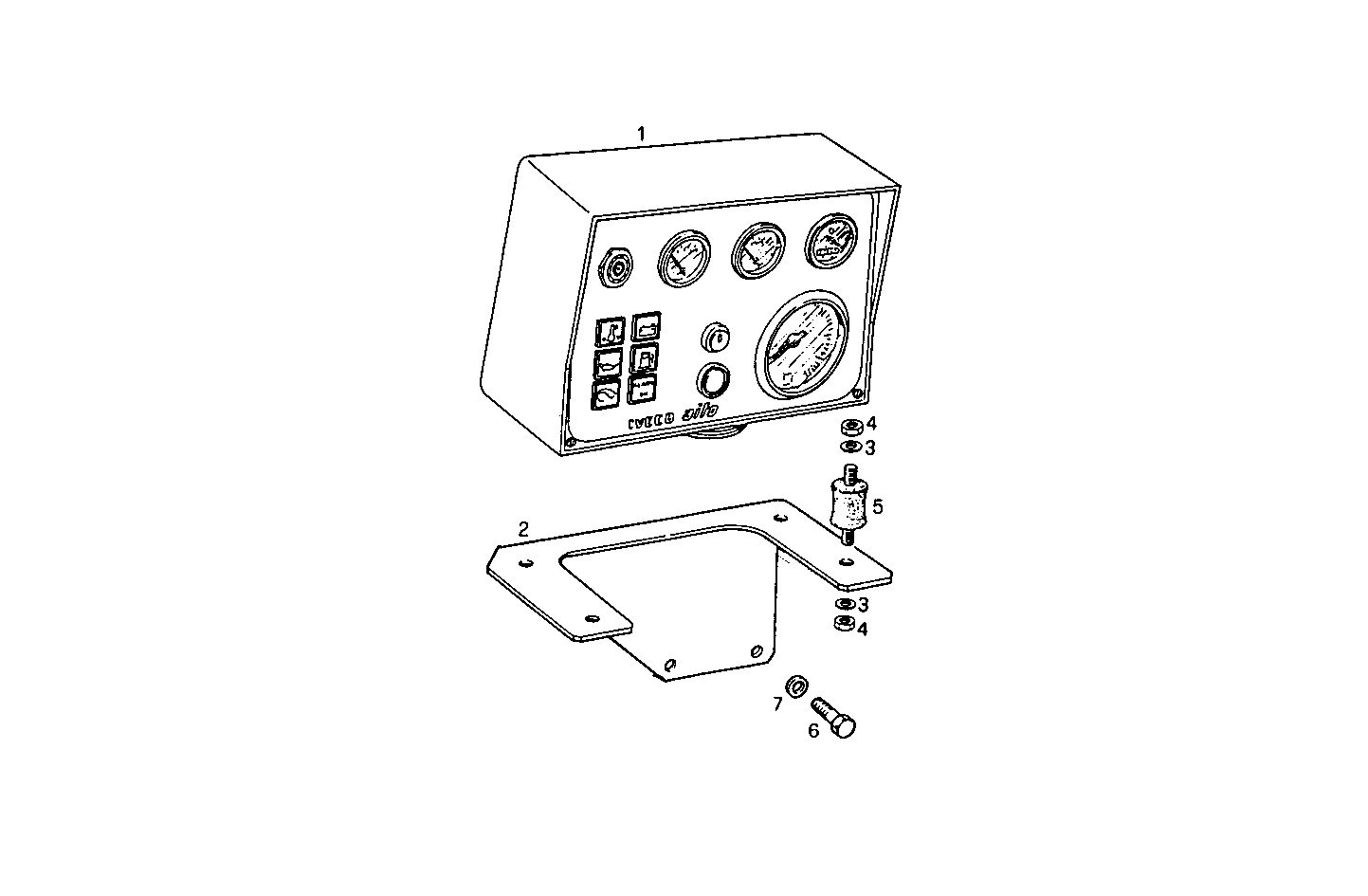

A38670011 ELECTRIC INSTRUMENTS PANEL - VDO 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8025057 | INSTRUMENTS BOARD ASSY |
| 2 | 8108483 | RETAINER |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 4910949 | RUBBER LUG |
| 6 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
