8041M08.40

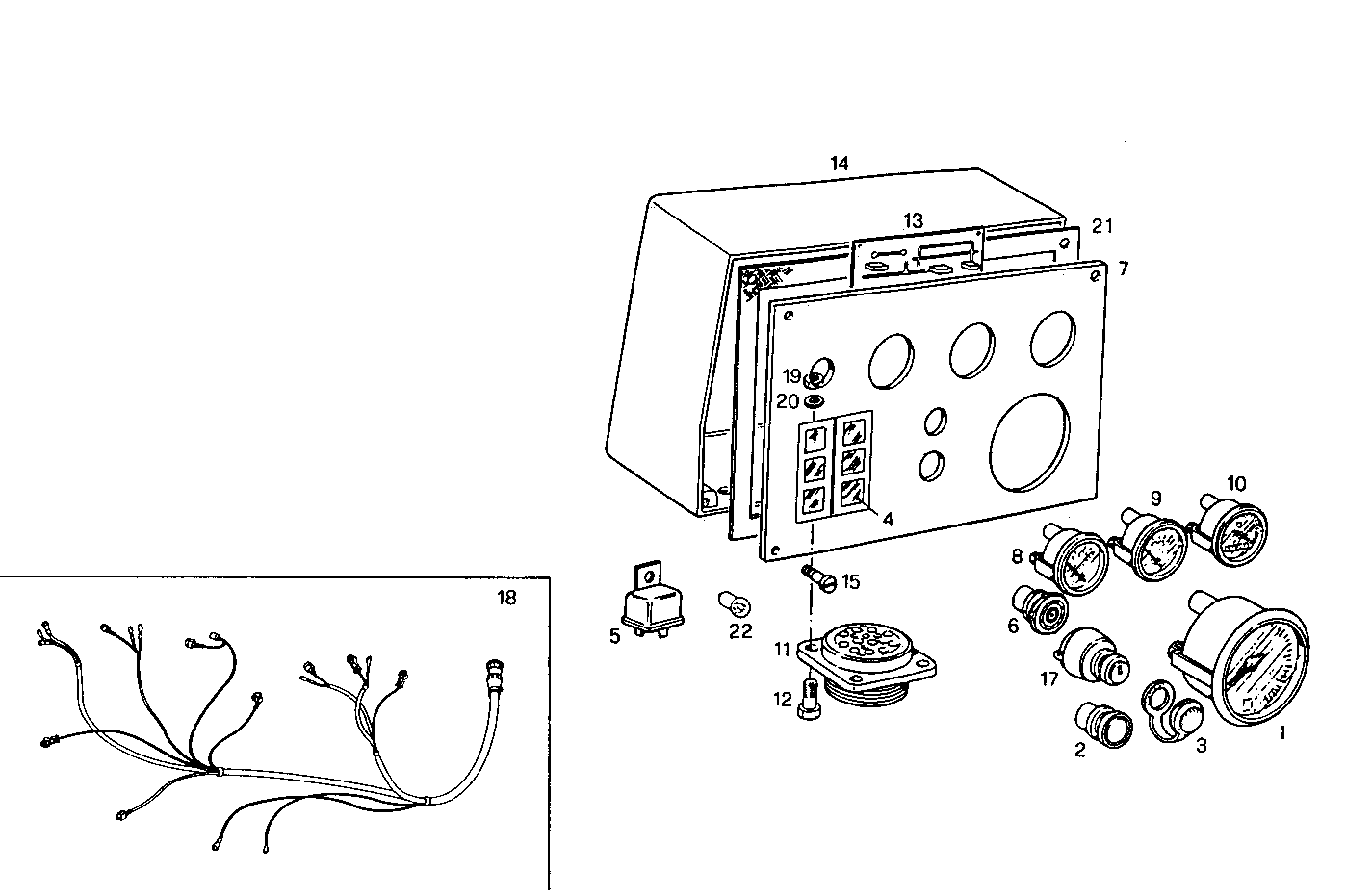

T3868003 ELECTRIC INSTRUMENTS PANEL - (components)
| Item |
Part number |
Description |
|
1 |
8103155 |
REVOLUTION COUNTER |
|
2 |
8110227 |
SWITCH STOP |
|
3 |
8110226 |
CAP |
|
4 |
8110229 |
WARNING LIGHT |
|
5 |
8109125 |
RELAY |
|
6 |
8110230 |
ACOUSTIC HORN |
|
7 |
8110225 |
PLATE |
|
8 |
8103060 |
PRESSURE GAUGE |
|
9 |
8103061 |
THERMOMETER |
|
10 |
8105392 |
VOLTMETER |
|
11 |
8105629 |
CONNECTION |
|
12 |
17129411 |
SCREW M3X10 |
|
13 |
8007783 |
ELECTRONIC CARD |
|
14 |
8108461 |
SUPPORT |
|
15 |
8103662 |
SCREW M4X10 |
|
17 |
8103708 |
SWITCH |
|
18 |
8007784 |
ENGINE HARNESS |
|
19 |
17037521 |
NUT M3 |
|
20 |
17094004 |
WASHER Ø3 MM |
|
21 |
8100350 |
GASKET |
|
22 |
14143990 |
LAMP |
