8041M09.01

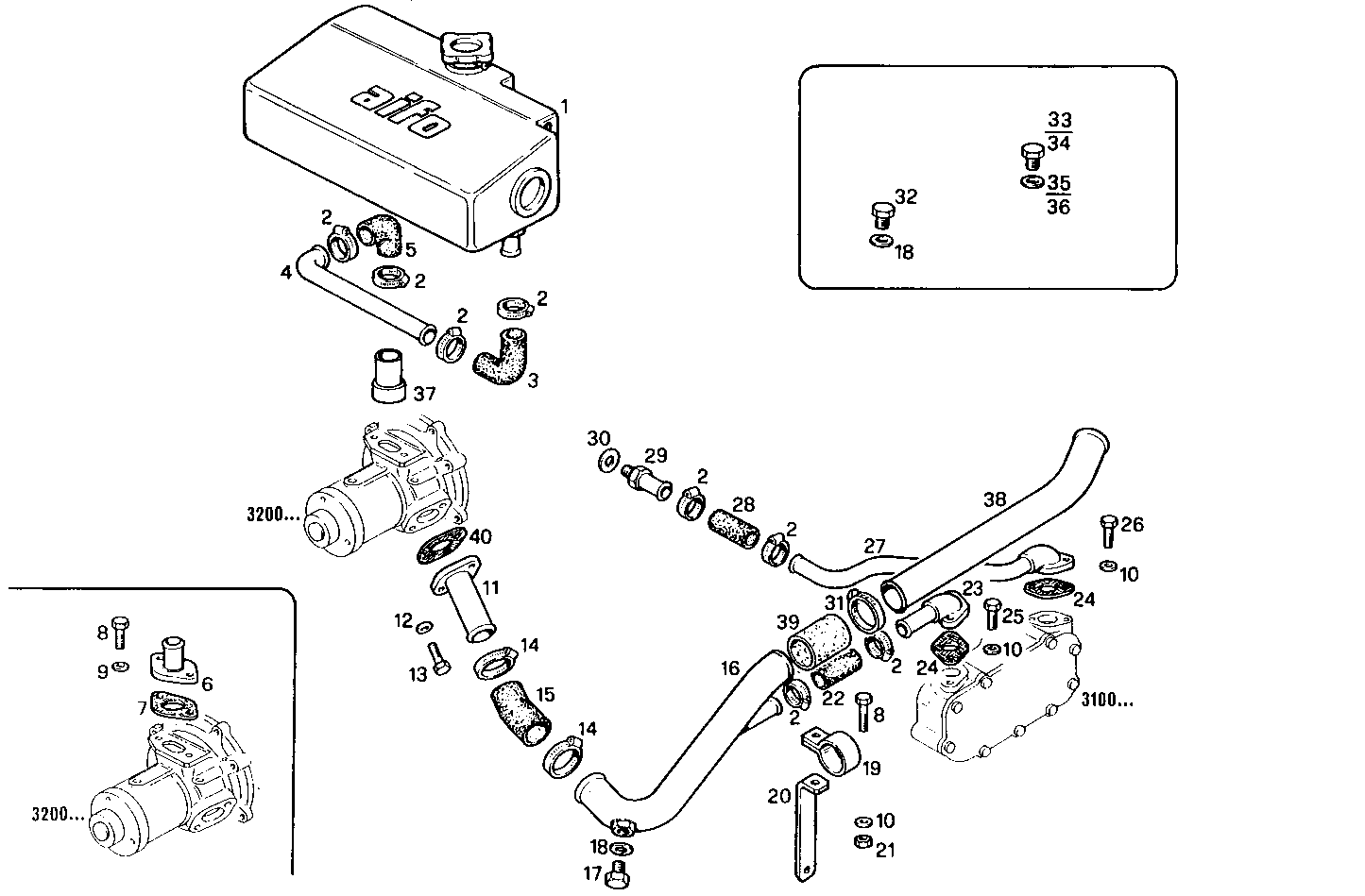

3210.023/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8109335 WATER EXPANSION TANK
2 17764593 CLIP Ø20/32 MM
3 4616762 RUBBER SLEEVE
4 8108078 WATER PIPE
5 8108085 RUBBER SLEEVE
6 8108080 WATER PIPE [up to 07-92]
7 98417182 FLAT ENGINE GASKET [up to 07-92]
8 16605424 SCREW M8X16 MM (8.8)
9 17090174 SPRING WASHER Ø10X20 MM
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 4772995 WATER PIPE
12 17094914 WASHER 8x16
13 98401723 HEXAGON BOLT M8X1,25X12 MM
14 17764793 CLIP Ø32/50 MM
15 17742087 RUBBER SLEEVE
16 8017642 WATER PIPE
17 16992140 PLUG M10X1
18 4858606 GASKET Ø10X14X1 MM
19 4929731 CLIP
20 8108979 RETAINER
21 17037931 HEXAGON NUT M8X1,25
22 17737687 WATER HOSE
23 8108077 WATER PIPE
24 4853970 FLAT ENGINE GASKET
25 16605824 HEXAGON BOLT M8X35 MM
26 16605624 HEXAGON BOLT M8X25 MM (8.8)
27 4760316 WATER PIPE
28 1368754 WATER HOSE
29 98418647 PIPE SOCKET
30 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
31 17764893 CLIP Ø40/60 MM
32 11903140 PLUG M10X1,25
33 10305171 PLUG M22X1,5
34 16992440 THREADED PLUG M16X1,5
35 10263460 WASHER Ø22X28X1,5 MM
36 4858609 WASHER Ø16X22 MM SP=1,5 MM
37 8014141 WATER PIPE [from 07-92]
38 8017643 WATER PIPE
39 17742887 RUBBER SLEEVE
40 4852556 FLAT ENGINE GASKET
