8041M09.01

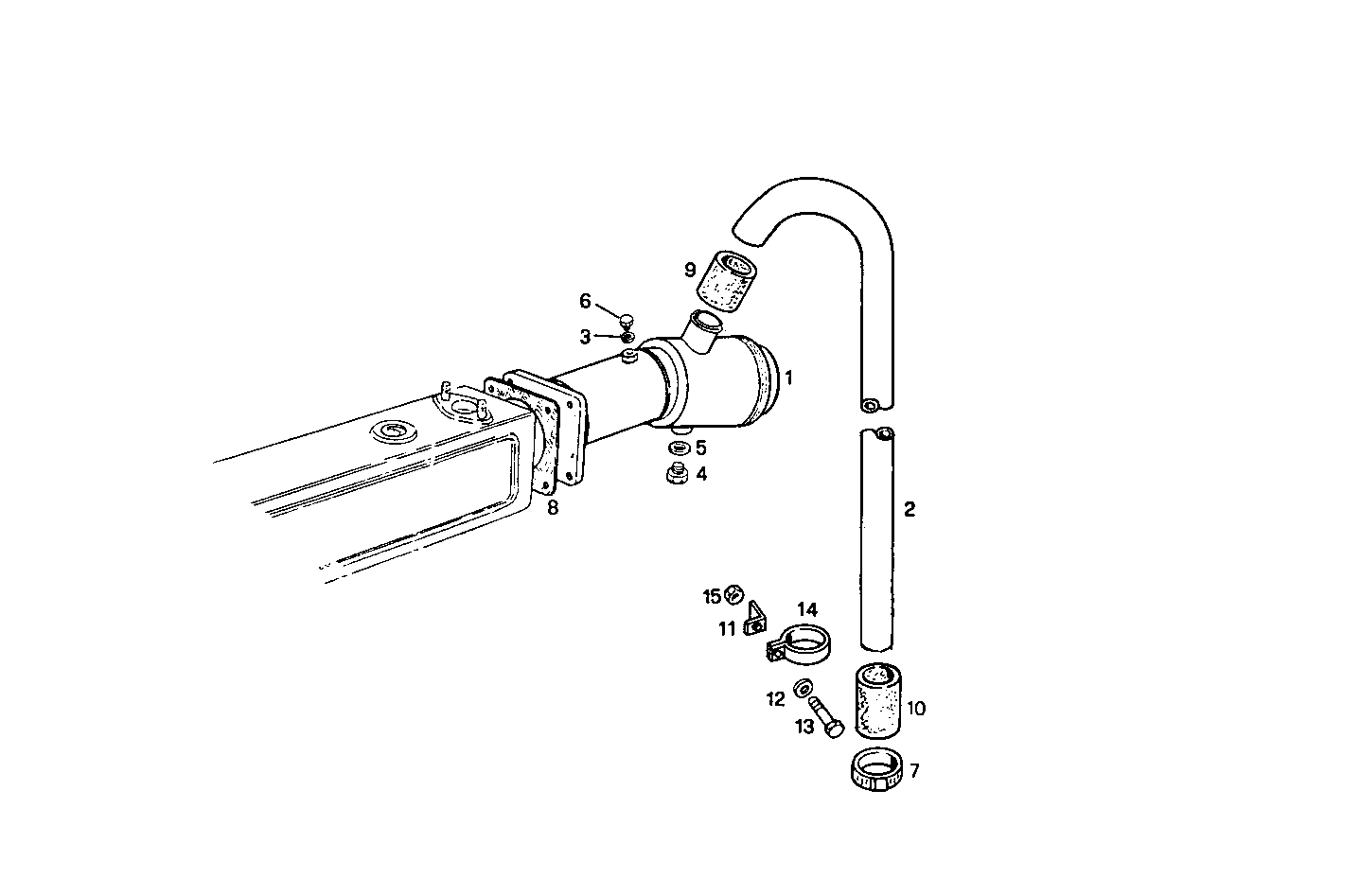

A40050004 GAS-WATER MIXER WITH STERN OUTLET - with marine gear
| Item | Part number | Description |
|---|---|---|
| 1 | 4932952 | EXHAUST COOL. ELBOW |
| 2 | 8109040 | PLUG |
| 3 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 4 | 10300840 | LOCK PLUG M18X1,5 |
| 5 | 10263160 | SEAL GASKET Ø18X24 MM SP=1 MM |
| 6 | 10300511 | LOCK PLUG M12X1,5 |
| 7 | 12177090 | CLIP Ø32-52 MM |
| 8 | 4918265 | GASKET |
| 9 | 8102099 | RUBBER SLEEVE |
| 10 | 8100546 | RUBBER SLEEVE |
| 11 | 8100819 | RETAINER |
| 12 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
| 13 | 16043421 | HEXAGON BOLT M8X20 MM |
| 14 | 4936741 | CLIP |
| 15 | 16100821 | HEXAGON NUT M8 |
