8041M09.01

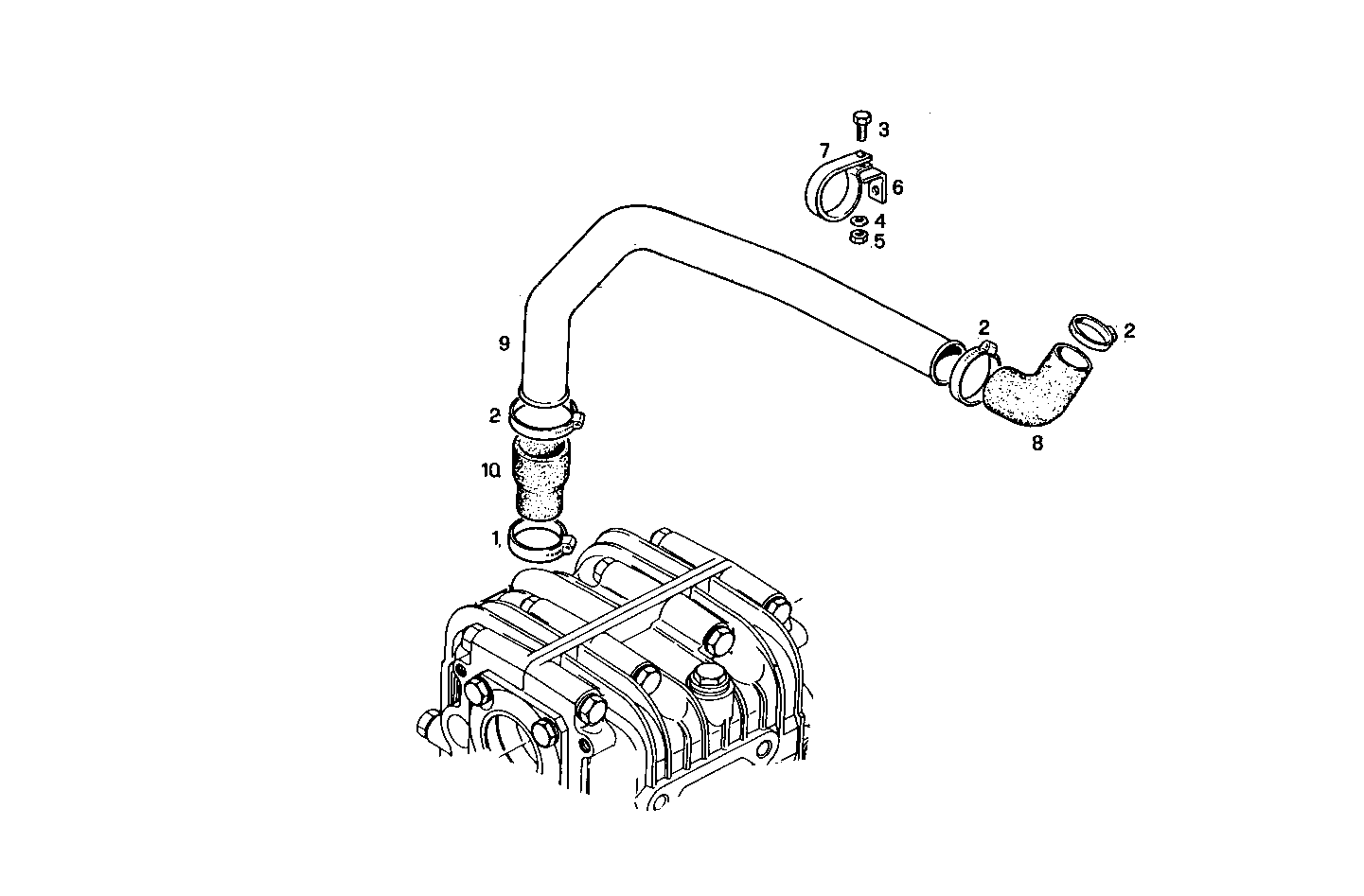

A51320008/02 MARINE GEAR HURTH HBW 250 - ratio 1.88:1
| Item | Part number | Description |
|---|---|---|
| 1 | 17764592 | CLIP Ø20/32 MM |
| 2 | 12177090 | CLIP Ø32-52 MM |
| 3 | 15970421 | HEXAGON BOLT M10X18 MM |
| 4 | 14496621 | WASHER Ø10,6 MM |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 8108819 | SUPPORT |
| 7 | 4936741 | CLIP |
| 8 | 8102099 | RUBBER SLEEVE |
| 9 | 8107879 | PLUG |
| 10 | 4919497 | RUBBER SLEEVE |
