8041M09.40

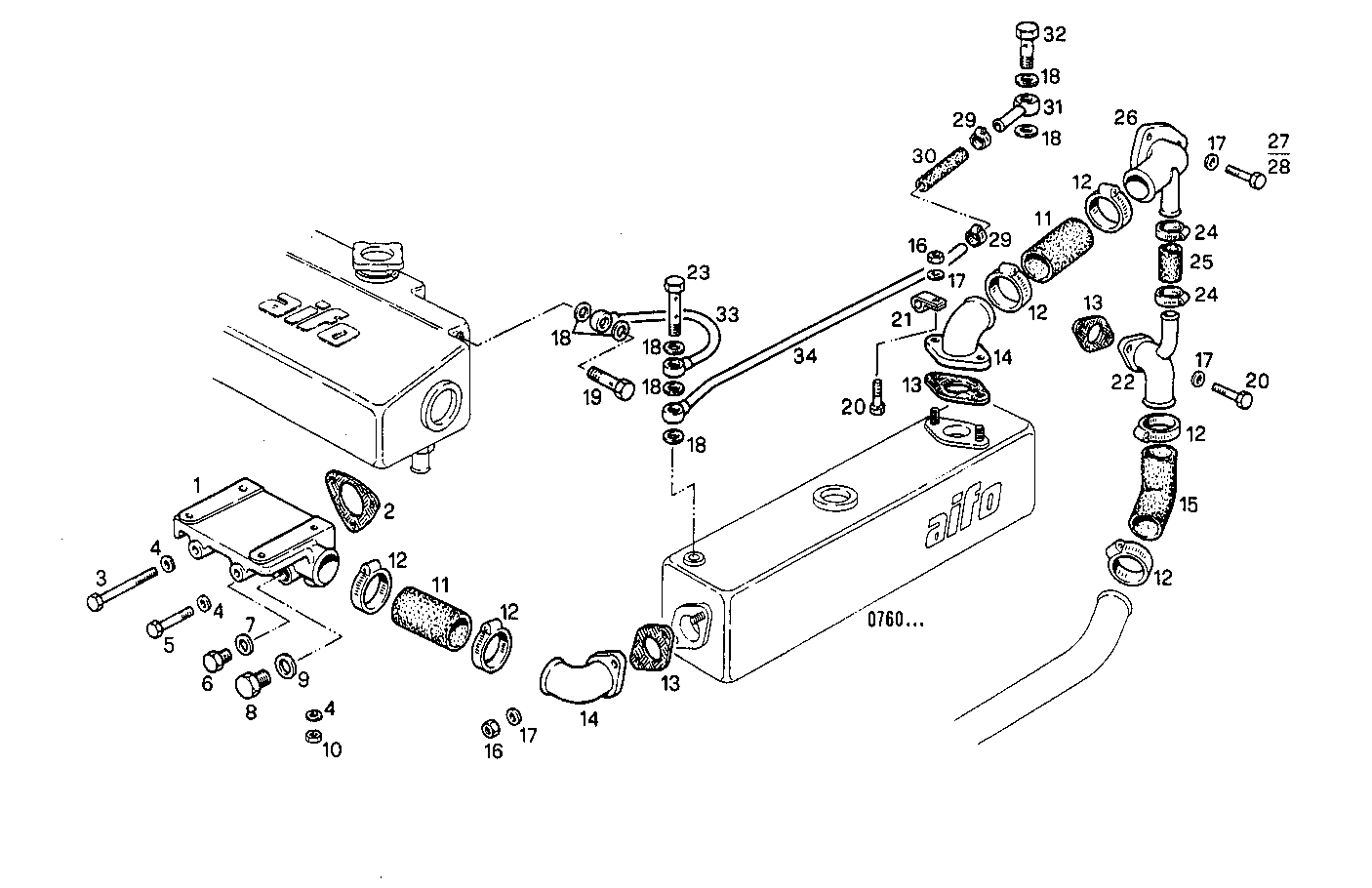

3210.023/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4930459 SUPPORT
2 4851926 FLAT ENGINE GASKET
3 15972921 HEXAGON BOLT M10X1,25X160 MM
4 17090174 SPRING WASHER Ø10X20 MM
5 15888821 HEXAGON BOLT M10X1,25X70 MM
6 17039040 PLUG
7 4858609 WASHER Ø16X22 MM SP=1,5 MM
8 16992640 PLUG M22X1,5
9 10263460 WASHER Ø22X28X1,5 MM
10 17038121 HEXAGON NUT M10
11 17742887 RUBBER SLEEVE
12 17764793 CLIP Ø32/50 MM
13 8009640 GASKET
14 4919235 WATER PIPE
15 8017516 WATER HOSE
16 17037931 HEXAGON NUT M8X1,25
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 4858607 WASHER Ø12X17 MM SP=1,5 MM
19 8009696 SCREW CONNECTOR M12X1,5X25
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 17316390 CLIP
22 4933561 WATER PIPE
23 8016191 BANJO BOLT M12X1,5
24 17764693 CLIP Ø25/40 MM
25 4929260 WATER HOSE
26 4919663 WATER PIPE
27 16606624 HEXAGON BOLT M8X80 MM
28 16606324 HEXAGON BOLT M8X60 MM
29 17764293 CLIP Ø10/16 MM
30 4927825 WATER HOSE
31 98434018 THREADED UNION
32 4864082 BANJO BOLT M12X1,5X25 MM
33 8011343 WATER PIPE
34 8011344 WATER PIPE
