8041Si25.05

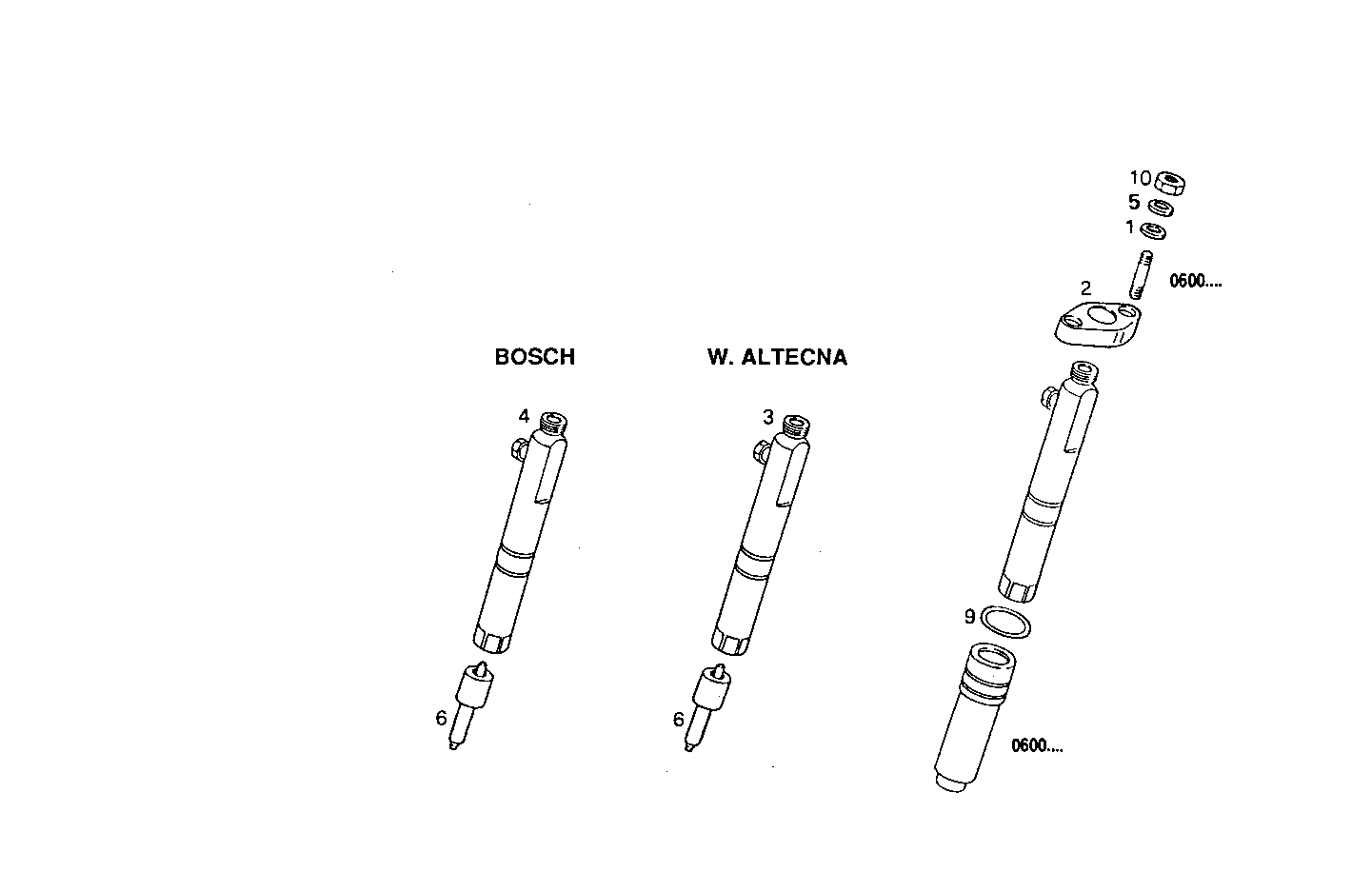

1420.003 INJECTORS
| Item | Part number | Description |
|---|---|---|
| 1 | 771326 | WASHER Ø11,5 MM |
| 2 | 4780612 | FASTENING BRACKET |
| 3 | 4802392 | NOZZLE HOLDER ASSY ALTECNA |
| 4 | 4791124 | NOZZLE HOLDER ASSY BOSCH |
| 5 | 11194074 | WASHER Ø8,4 MM |
| 6 | 1908972 | FUEL NOZZLE |
| 9 | 14453581 | O-RING Ø18,77 MM SP=1,78 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
