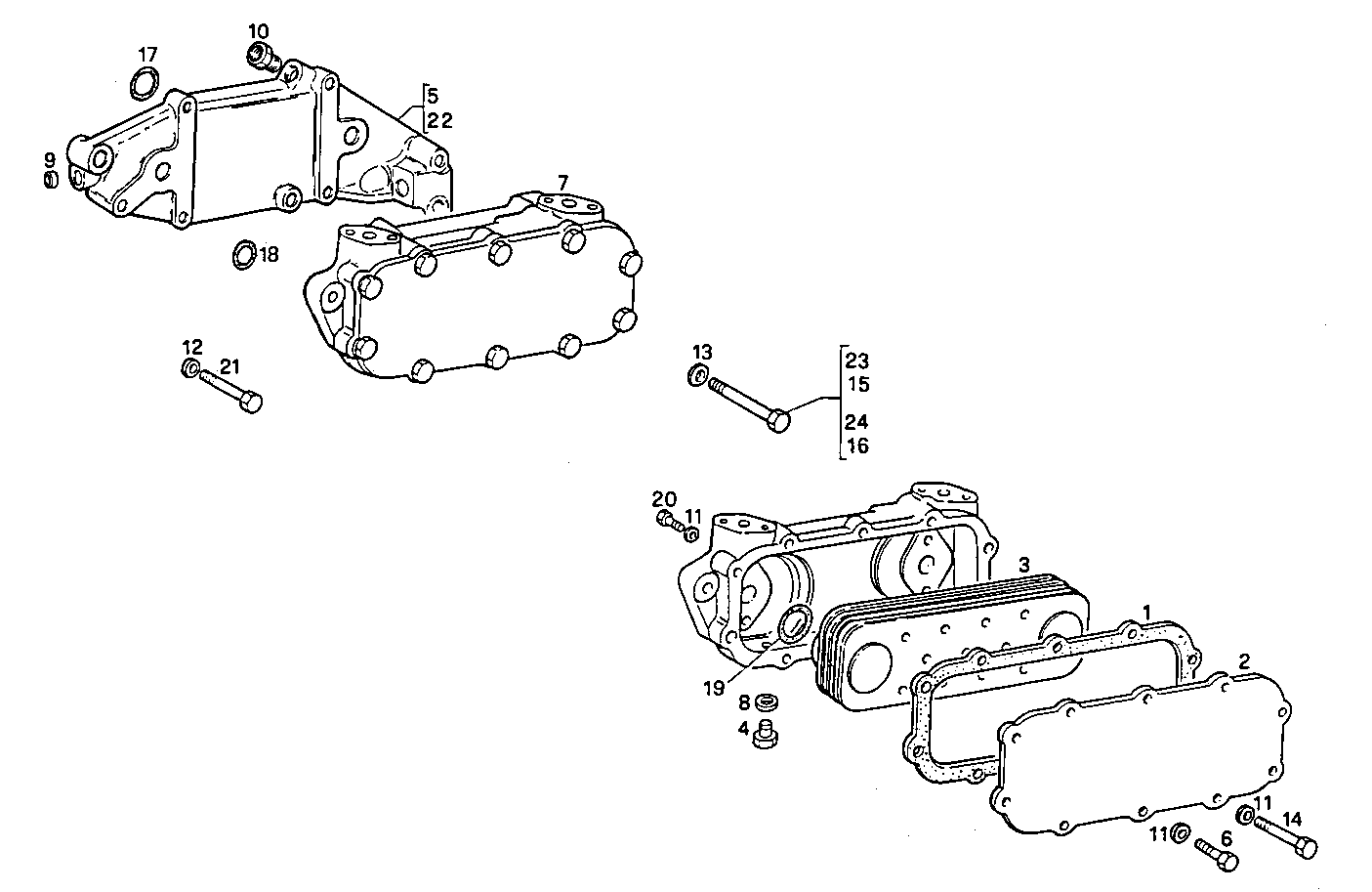

| Item |
Part number |
Description |
|
1 |
4848521 |
FLAT ENGINE GASKET |
|
2 |
4759805 |
HEAT EXCHANG.COVER |
|
3 |
4761704 |
OIL COOLER |
|
4 |
98435232 |
PLUG |
|
5 |
4853973 |
SUPPORT [from 570231] |
|
6 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
7 |
4761918 |
HEAT EXCHANGER ASSY |
|
8 |
4858605 |
WASHER �8X12 MM |
|
9 |
14328501 |
LOCK PLUG �16 MM |
|
10 |
4820056 |
THREADED UNION |
|
11 |
17094914 |
WASHER 8x16 |
|
12 |
17090274 |
WASHER �10X20 MM |
|
13 |
17095304 |
WASHER �12X24 MM |
|
14 |
16044921 |
HEXAGON BOLT M8X1,25X85 MM |
|
15 |
16610524 |
HEXAGON BOLT M12X60 MM |
|
16 |
16610924 |
HEXAGON BOLT M12X90 MM |
|
17 |
17281981 |
O-RING �18,7 MM SP=2,6 MM |
|
18 |
14457581 |
O-RING �20,29 MM SP=2,62 MM |
|
19 |
98465110 |
O-RING �31,42 MM SP=2,62 MM |
|
20 |
16043221 |
HEXAGON BOLT M8X16 MM |
|
21 |
15888721 |
HEXAGON BOLT M10X1,25X55 MM |
|
22 |
4759320 |
SUPPORT [up to 570230] |
|
23 |
15541021 |
HEXAGON BOLT M12X1,25X60 MM |
|
24 |
15541521 |
SCREW M12X1.25X90 [up to 565948] |
