8041Si25.05

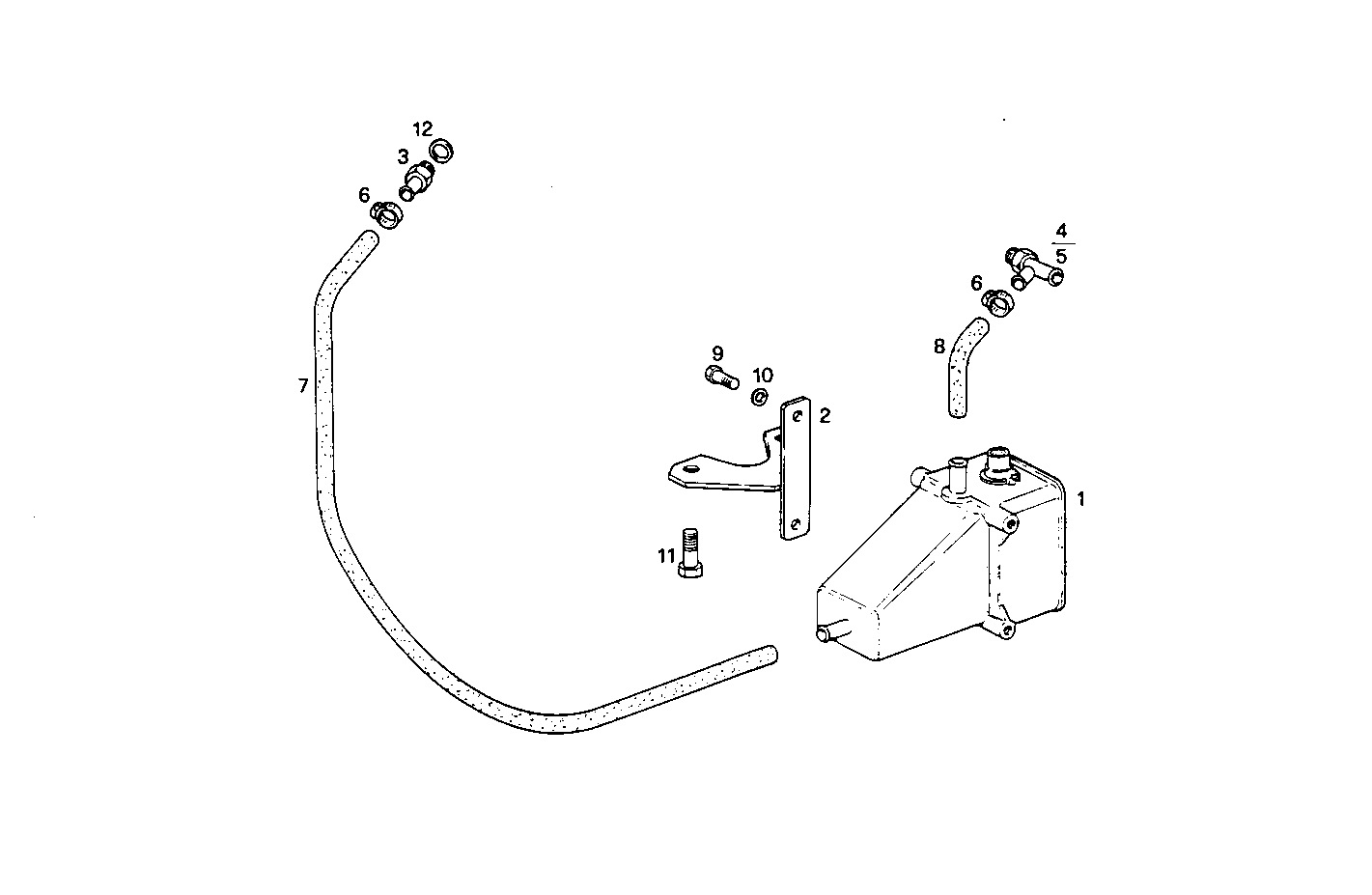

A20040021 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8008375 | HEATER 700W |
| 2 | 8009730 | SUPPORT |
| 3 | 8112804 | PIPE SOCKET |
| 4 | 8010794 | PIPE SOCKET [from ...] |
| 5 | 8009691 | PIPE SOCKET [up to ...] |
| 6 | 17764492 | CLIP Ø16-25 MM |
| 7 | 8009703 | WATER HOSE |
| 8 | 8009704 | WATER HOSE |
| 9 | 10902121 | HEXAGON BOLT M6X14 MM |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
| 12 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
