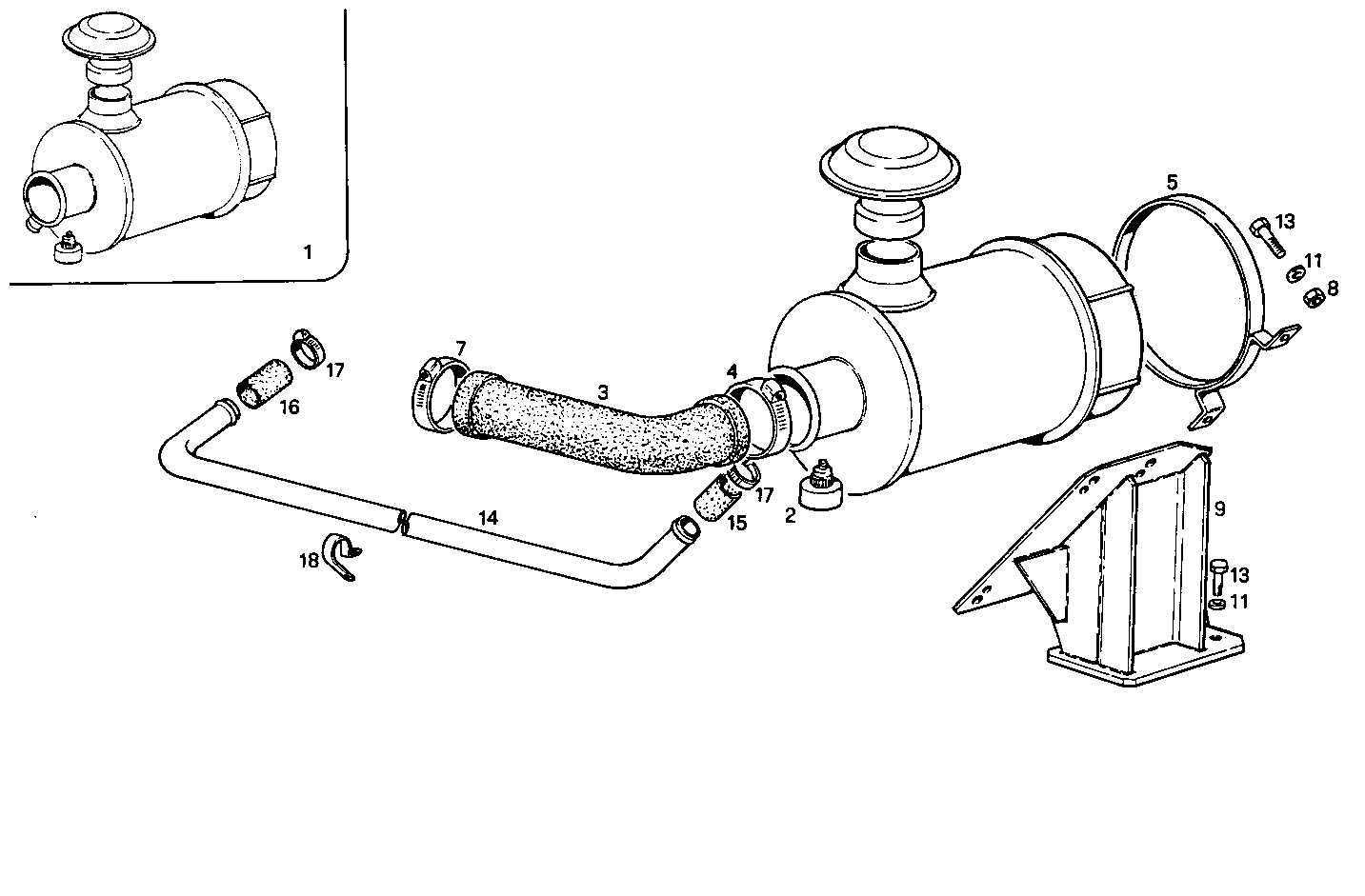

A21170052 DRY AIR CLEANER - with mechanical clogging gauge
| Item | Part number | Description |
|---|---|---|
| 1 | 8007813 | AIR CLEANER ASSY |
| 2 | 4792262 | AIR PRESSURE GAUGE |
| 3 | 8109763 | AIR HOSE |
| 4 | 17765392 | CLIP Ø90-110 MM |
| 5 | 8109415 | CLIP |
| 7 | 17765092 | CLIP Ø60-80 MM |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 8008125 | SUPPORT |
| 11 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 8007824 | AIR PIPE/DUCT |
| 15 | 4616762 | RUBBER SLEEVE |
| 16 | 98421371 | AIR HOSE |
| 17 | 17764592 | CLIP Ø20/32 MM |
| 18 | 8111710 | CLIP |
