8041Si25.55

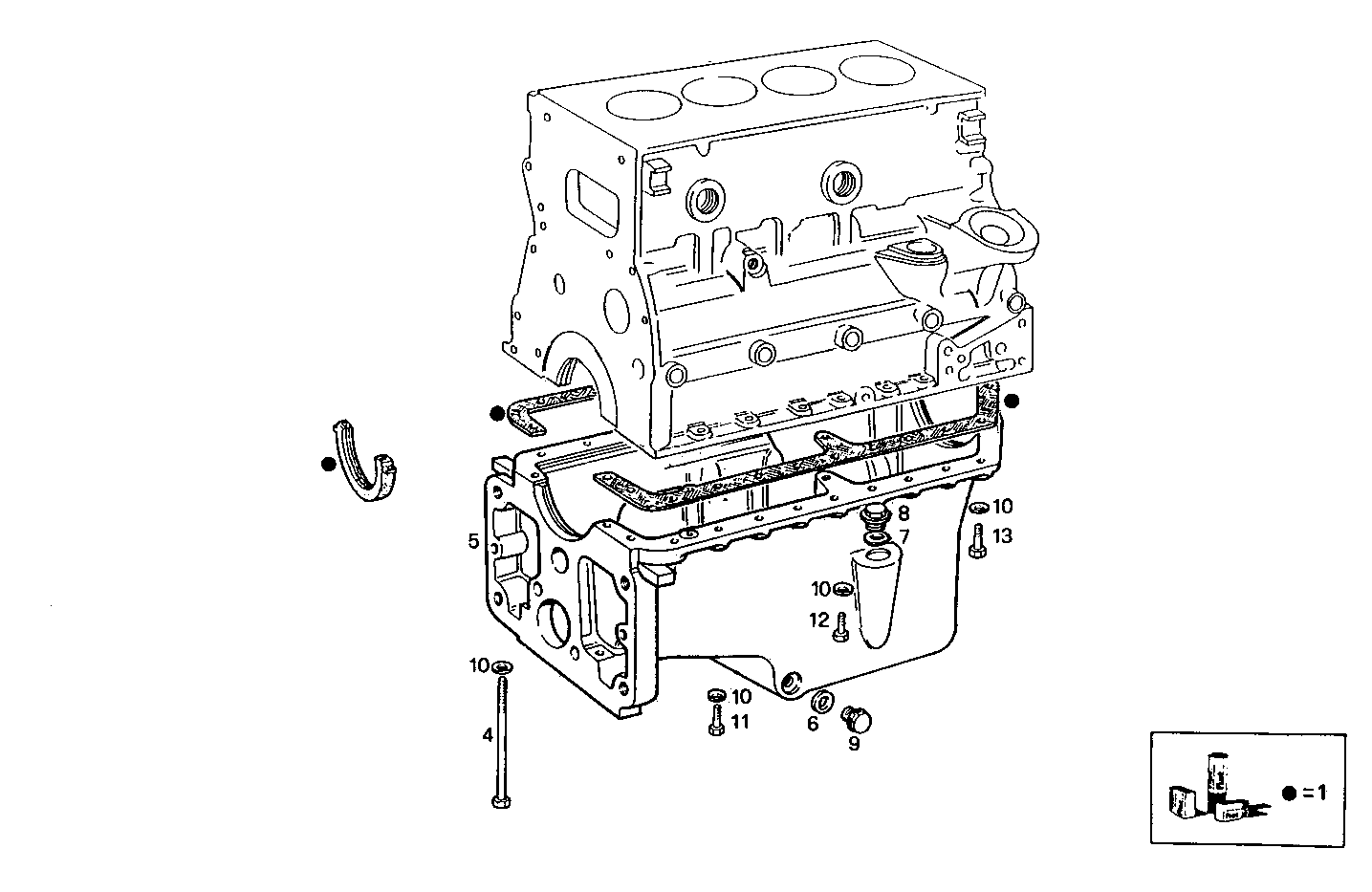

0420.036 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 1940012 | KIT-OILSUMP GASKET |
| 4 | 4607933 | SCREW M10X1,25X262 MM |
| 5 | 4816696 | OIL SUMP |
| 6 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
| 7 | 10265060 | SEAL GASKET Ø32X38 MM SP=1,5 MM |
| 8 | 10276111 | LOCK PLUG M32X1,5 |
| 9 | 4847102 | THREADED PLUG |
| 10 | 11198374 | SPRING WASHER Ø10X20 MM |
| 11 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
| 12 | 11307024 | SCREW M10X1,25X40 MM |
| 13 | 11343724 | HEXAGON BOLT M10X70 MM |
