8041Si25.55

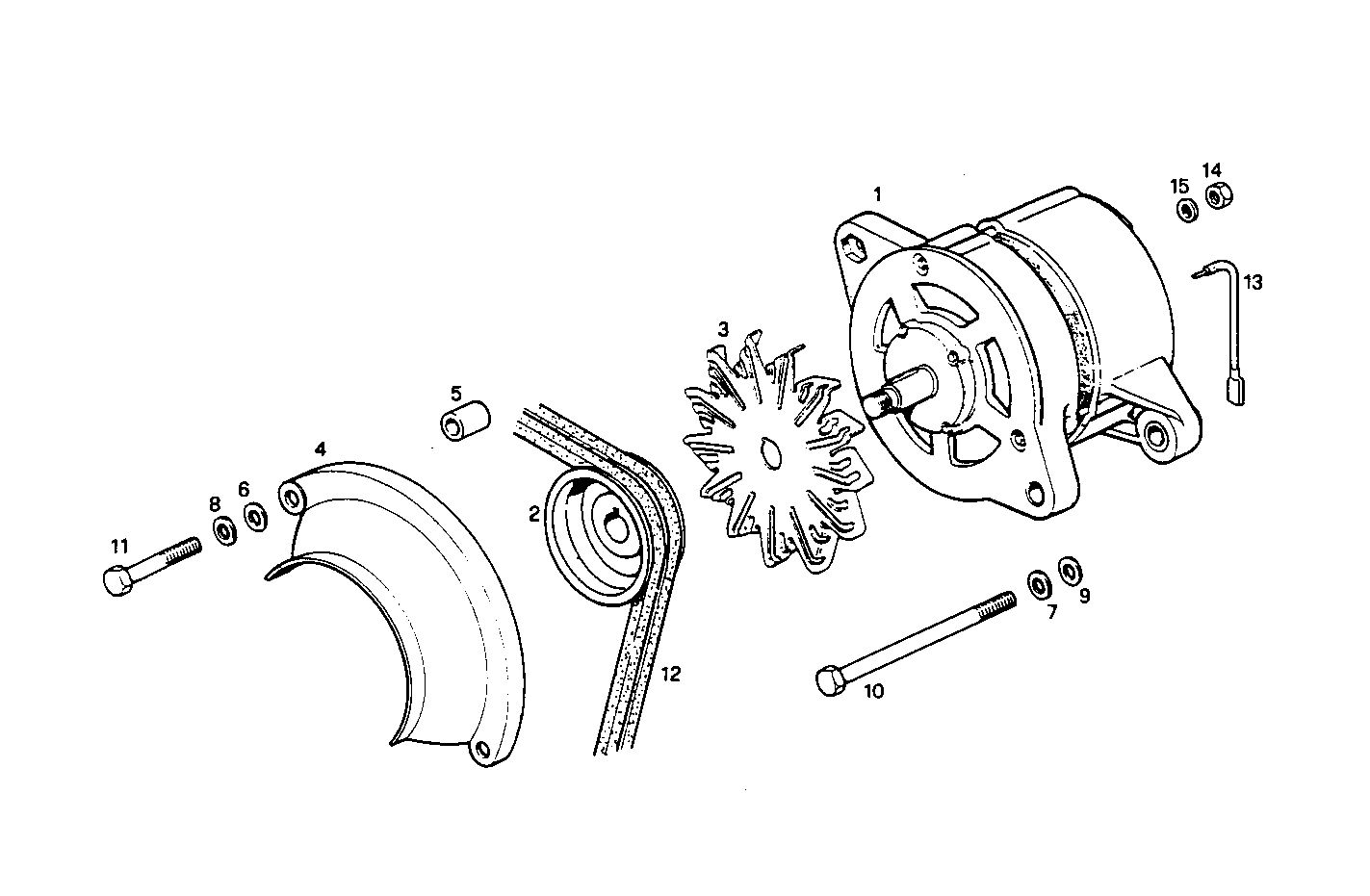

A14550001 SELF-REGULATED ALTERNATOR - 14V 65A (W) - industrial duty
| Item | Part number | Description |
|---|---|---|
| 1 | 4808510 | ALTERNATOR ASSY MARELLI - 12V - 65A |
| 2 | 8012783 | PULLEY |
| 3 | 4717026 | GENERATOR FAN MARELLI |
| 4 | 4618825 | PROTECTION |
| 5 | 4619064 | SPACING BAR |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 17095304 | WASHER Ø12X24 MM |
| 10 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 11 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 12 | 4847051 | SET OF V-BELTS L=1130 MM |
| 13 | 8105654 | WIRE/CABLE |
| 14 | 17037821 | HEXAGON NUT M6X1 |
| 15 | 17088474 | WASHER Ø6X12 MM |
